Raise/Prop Up Vehicle With Vehicle Lift - AR00.60-P-1005-01D

Model 463

as of Model year 2019

	Risk of death or serious injury  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Information on influencing load ratios when removing major assemblies		AH00.60-P-0001-01A
	000 588 00 80 00 Vehicle lift		WS00.00-P-0040B

Fig 1: Identifying Adapter (463 589 02 31 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

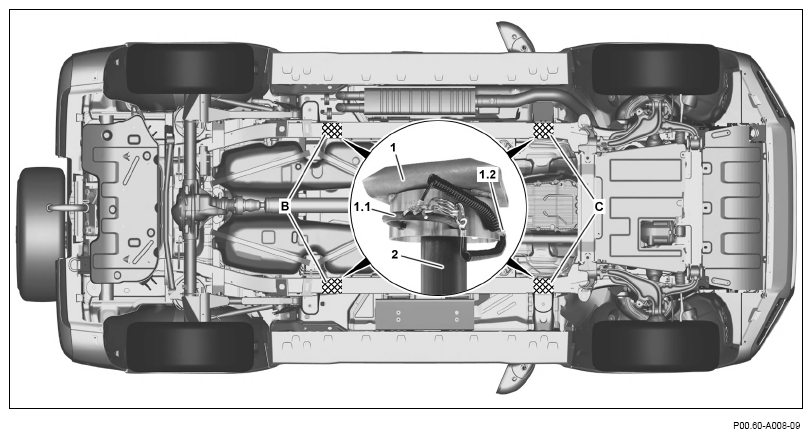

1. Position adapters (1) on vehicle lift support points (B, C) on longitudinal members.
2. Turn supports (2) of vehicle lift support arms until the adapters (1) make contact with the vehicle lift support points (B, C).

   Then secure vehicle on vehicle lift.

   Otherwise it can tilt from the vehicle lift.

3. Lift vehicle with lifting platform.

   Secure vehicle diagonally at front left vehicle lift support point (C) and at rear right vehicle lift support point (B).

   Otherwise, the vehicle will not be correctly positioned on the vehicle lift.

   Courtesy of MERCEDES-BENZ USA

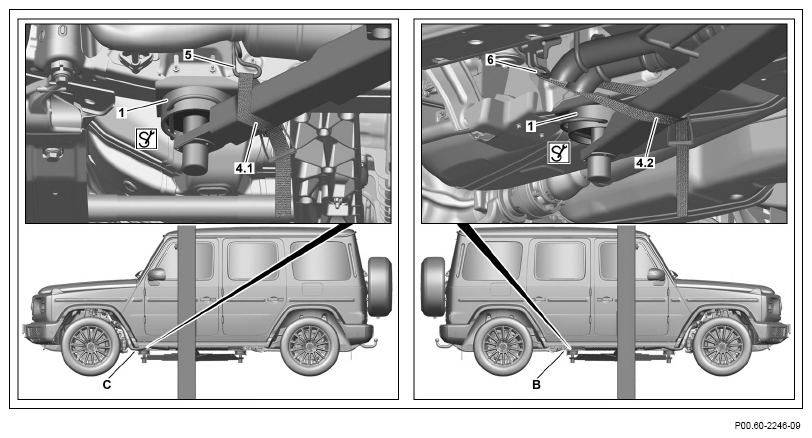

4. On front left vehicle lift support point (C), place tensioning strap (4.1) between the tie-down eye (5) and the vehicle lift swivel arm and tighten.

   When lashing down, note adjacent component parts.

   Otherwise, this will be pinched or damaged.

   When lashing down, note any sharp-edged objects.

   Otherwise, there will be damage to the tensioning strap (4.1).

5. On rear right vehicle lift support point (B), place tensioning strap (4.2) between the tie-down eye (6) and the vehicle lift swivel arm and tighten.

   When lashing down, note adjacent component parts.

   Otherwise, this will be pinched or damaged.

   When lashing down, note any sharp-edged objects.

   Otherwise, there will be damage to the tensioning strap (4.2).
