Raise/Prop Up Vehicle With Vehicle Lift - AR00.60-P-1005-01C
Model 460, 461
Model 463
up to Model year 2019
| Risk of death or serious injury caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Information on influencing load ratios when removing major assemblies | AH00.60-P-0001-01A | ||
| 000 588 00 80 00 Vehicle lift | WS00.00-P-0040B |

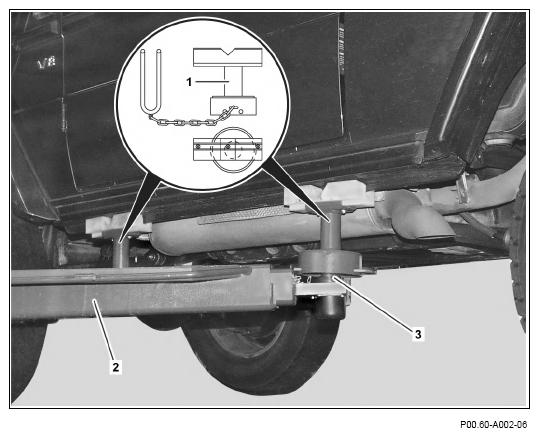

- Attach special mounts (1) to support arms (2) of vehicle lift.
Use special supports (1) for off-road vehicles.
Otherwise the vehicle may tip from the vehicle lift.
Otherwise the vehicle may tip from the vehicle lift.
If necessary,
↓
Remove side running board.
- Turn support plates (3) of support arms (2) until the special supports (1) make contact with the vehicle lift support points.
- Lift vehicle with lifting platform.
