Lifting Vehicle With Pit Lift Or Workshop Jack - AR00.60-P-1000-01G
Model 460, 461
Model 463
up to Model year 2019
| Risk of death or serious injury caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A |
The vehicle may only be raised at the front or rear axle using an inspection pit lift. The inspection pit lift must be equipped with an axle traverse with prism-shaped covers (arrows).
Shown on vehicles with two axles

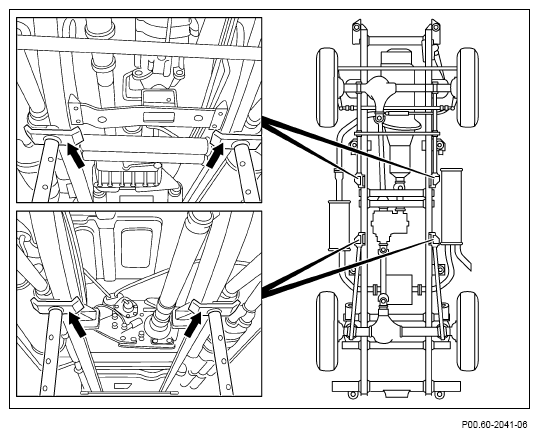

Protect the raised vehicle from tipping over or falling down at the trailing arm brackets (arrows) with jack stands or support bridges. Also block axle that has not been raised to prevent it from rolling away.
Shown on vehicles with two axles
