Location And Assignment Of Z Connector Sleeves (Wiring And Plug Connectors In Wiring Harness) - GF00.19-P-3000ZGA

Model 463

as of model year 2013 up to model year 2019

/YoM 12 model refinement package up to YoM 18 model refinement package

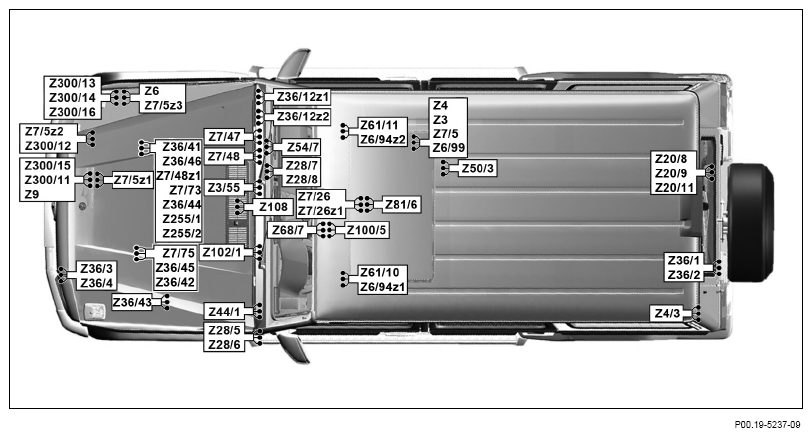

G13654316Courtesy of MERCEDES-BENZ USA

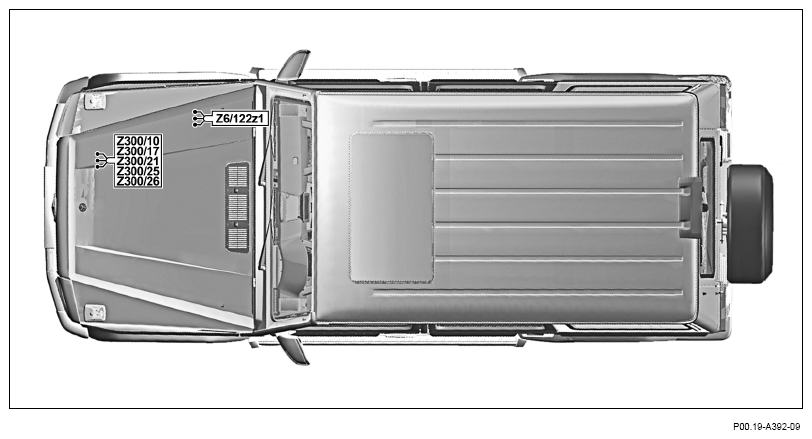

G13654317Courtesy of MERCEDES-BENZ USA
Z2z1 Bypass air switchover valve connector sleeve Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M279 PE07.61-P-2101ZGE
Z3 Tml. 15 connector sleeve Location for M157 GF00.19-P-3001-23ZGA
    Assignment for M157 PE00.19-P-2170ZGA
Z3z1 Tml. 15 connector sleeve Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M279 PE07.61-P-2101ZGE
Z3/55 Headlamp range adjustment (HRA [LWR]) circuit 15 connector sleeve Location GF00.19-P-3001-03ZGA
    Assignment PE82.10-P-2000ZGA
Z3/60 Driver circuit 15R end sleeve Assignment PE91.29-P-2003ZGA
Z3/61 Front passenger circuit 15R end sleeve Assignment PE91.29-P-2003ZGA
Z4 Circuit 15/30 end sleeve Location for M157 GF00.19-P-3001-23ZGA
    Assignment for M157 PE00.19-P-2170ZGA
Z4z1 Throttle valve actuator connector sleeve Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M279 PE07.61-P-2101ZGE
Z4/3 Circuit 30 end sleeve Location GF00.19-P-3001-04ZGA
    Assignment PE54.15-P-2103ZGB
Z4/3z2 Circuit 30 end sleeve Assignment PE54.15-P-2103ZGB
Z5z2 Connector sleeve in wiring harness Location for M273 GF00.19-P-3001-02ZGA
    Assignment for M273 PE07.61-P-2101ZGB
Z5/6 Fan bumper connector sleeve Assignment PE54.15-P-2103ZGA
Z6 Circuit 31 end sleeve Location for OM642 GF00.19-P-3001-02ZGA
    Assignment for OM642 PE00.19-P-2800ZGD
Z6z1 Circuit 31 end sleeve Location for M157 GF00.19-P-3005-01ZGA
    Location for M273 GF00.19-P-3001-02ZGA
    Assignment for M273 PE00.19-P-2800ZGC
    Assignment for M157 PE00.19-P-2800ZGD
Z6z2 Circuit 31 end sleeve Location for M157 GF00.19-P-3005-01ZGA
    Location for M273 GF00.19-P-3001-01ZGA
    Assignment for M273 PE00.19-P-2800ZGC
    Assignment for M157 PE00.19-P-2800ZGD
Z6/8 Sensor ground connector sleeve Location for M157 GF00.19-P-3005-01ZGA
    Assignment for M157 PE00.19-P-2800ZGD
Z6/20 Liftgate ground connector sleeve Location GF00.19-P-3001-04ZGA
    Assignment PE00.19-P-2800ZGA
Z6/26 Sensor ground connector sleeve Location for M273 GF00.19-P-3001-02ZGA
    Assignment for M273 PE07.61-P-2101ZGB
Z6/30z1 Driver seat ground line connector sleeve Assignment PE00.19-P-2800ZGB
Z6/30z2 Front passenger seat ground line connector sleeve Assignment PE00.19-P-2800ZGA
Z6/94 Driver seat circuit 31 connector sleeve Assignment PE91.29-P-2003ZGA
Z6/94z1 Driver seat circuit 31 connector sleeve 1 Location GF00.19-P-3001-04ZGA
    Assignment PE00.19-P-2800ZGA
Z6/94z2 Driver seat circuit 31 connector sleeve 2 Location GF00.19-P-3001-05ZGA
    Assignment PE00.19-P-2800ZGB
Z6/95 Passenger seat circuit 31 connector sleeve Assignment PE91.29-P-2003ZGA
Z6/99 Transmission circuit 31 connector sleeve Location GF00.19-P-3001-23ZGA
    Assignment PE00.19-P-2800ZGD
Z6/120z1 Sensor ground line connector sleeve Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M279 PE07.61-P-2101ZGE
Z6/122z1 Left cylinder bank ignition coils ground line 1 connector sleeve Location for M279 GF00.19-P-3001-02ZGA
    Assignment for M279 PE07.61-P-2101ZGE
Z6/122z2 Right cylinder bank ignition coils ground line 1 connector sleeve Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M279 PE07.61-P-2101ZGE
Z6/123z1 Left cylinder bank ignition coil ground line connector sleeve 2 Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M279 PE07.61-P-2101ZGE
Z6/123z2 Right cylinder bank ignition coil ground line connector sleeve 2 Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M279 PE07.61-P-2101ZGE
Z6/125z1 Sensor ground line connector sleeve Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M279 PE07.61-P-2101ZGE
Z6/501z1 Sensor ground line connector sleeve Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M279 PE07.61-P-2101ZGE
Z7/5 Circuit 87 end sleeve Location GF00.19-P-3001-23ZGA
    Assignment PE54.15-P-2105ZGA
Z7/5z1 Circuit 87 end sleeve Location for OM642 GF00.19-P-3001-02ZGA
    Assignment for OM642 PE54.18-P-2300ZGB
Z7/5z2 Circuit 87 end sleeve Location for OM642 GF00.19-P-3001-02ZGA
    Assignment for OM642 PE07.16-P-2101ZGB
Z7/5z3 Circuit 87 end sleeve Location for OM642 GF00.19-P-3001-02ZGA
    Assignment for OM642 PE07.16-P-2101ZGB
Z7/26z1 Circuit 30 end sleeve Location GF00.19-P-3001-09ZGA
    Assignment PE82.62-P-2103ZGA
Z7/35z1 End sleeve, circuit 87 M1e Location for M157 GF00.19-P-3005-01ZGA
    Location for M273 GF00.19-P-3001-02ZGA
    Assignment for M157 PE07.08-P-2101ZGB
    Assignment for M273 PE07.61-P-2101ZGB
Z7/35z2 End sleeve, circuit 87 M1e Location for M157 GF00.19-P-3005-01ZGA
    Location for M273 GF00.19-P-3001-01ZGA
    Assignment for M273 PE07.61-P-2101ZGB
Z7/36z1 End sleeve, circuit 87 M2e Location for M157 GF00.19-P-3005-01ZGA
    Location for M273 GF00.19-P-3001-02ZGA
    Assignment for M157, M273 PE00.19-P-2600ZGA
Z7/36z2 End sleeve, circuit 87 M2e Location for M157 GF00.19-P-3005-01ZGA
    Location for M273 GF00.19-P-3001-01ZGA
    Assignment for M157, M273 PE00.19-P-2600ZGA
Z7/38z1 End sleeve, circuit 87 M1i Location for M273 GF00.19-P-3001-02ZGA
    Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M157 PE07.08-P-2101ZGB
    Assignment for M273 PE07.61-P-2101ZGB
    Assignment for M279 PE07.61-P-2101ZGE
Z7/38z2 End sleeve, circuit 87 M1i Location for M157 GF00.19-P-3005-01ZGA
    Location for M273 GF00.19-P-3001-01ZGA
    Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M273 PE07.61-P-2101ZGB
    Assignment for M279 PE07.61-P-2101ZGE
Z7/39z1 End sleeve, circuit 87 M2i Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M279 PE07.61-P-2101ZGE
Z7/39z2 End sleeve, circuit 87 M2i Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M279 PE07.61-P-2101ZGD
Z7/40z1 Circuit 30 end sleeve Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M279 PE07.61-P-2101ZGE
Z7/41z1 Sensor power supply connector sleeve Location for M279 GF00.19-P-3005-01ZGA
    Location for M157 GF00.19-P-3005-01ZGA
    Assignment for M279 PE07.61-P-2101ZGE
    Assignment for M157 PE00.19-P-2600ZGA
Z7/43 Sensor ground connector sleeve Location for M273 GF00.19-P-3001-02ZGA
    Assignment for M273 PE07.61-P-2101ZGB
Z7/43z1 Sensor ground line connector sleeve Location for M157 GF00.19-P-3005-01ZGA
    Assignment for M157 PE00.19-P-2600ZGA
Z7/44 Sensor ground connector sleeve Location for M157 GF00.19-P-3005-01ZGA
    Location for M273 GF00.19-P-3001-02ZGA
    Assignment for M157 PE00.19-P-2600ZGA
    Assignment for M273 PE07.61-P-2101ZGB
Z7/47 End sleeve, circuit 87D1 Location for M157 GF00.19-P-3001-03ZGA
    Assignment for M157 PE07.08-P-2101ZGA
Z7/47 End sleeve, circuit 87D1 Location for M273 GF00.19-P-3001-03ZGA
    Assignment for M273 PE07.61-P-2101ZGA
Z7/47 End sleeve, circuit 87D1 Location for OM642 GF00.19-P-3001-03ZGA
    Assignment for OM642 PE07.16-P-2101ZGA
Z7/47 End sleeve, circuit 87D1 Location for M279 GF00.19-P-3001-03ZGA
    Assignment for M279 PE07.61-P-2101ZGD
Z7/47z1 Circuit connector sleeve 87/1 Assignment for M176 PE07.08-P-2101ZGD
Z7/48 End sleeve, circuit 87D2 Location for M157 GF00.19-P-3001-03ZGA
    Assignment for M157 PE07.08-P-2101ZGA
Z7/48 End sleeve, circuit 87D2 Location for M273 GF00.19-P-3001-03ZGA
    Assignment for M273 PE07.61-P-2101ZGA
Z7/48 End sleeve, circuit 87D2 Location for OM642 GF00.19-P-3001-03ZGA
    Assignment for OM642 PE07.16-P-2101ZGA
Z7/48z1 Circuit 87/2 end sleeve Location for M176 GF00.19-P-3001-02ZGA
    Assignment for M176 PE07.08-P-2101ZGE
    Assignment for M279 PE07.61-P-2101ZGE
Z7/48z2 Terminal 87/C connector sleeve Assignment for M176 PE54.21-P-2141ZGA
Z7/73 End sleeve, circuit 87 D4 Assignment for M157 PE07.08-P-2101ZGA
Z7/73 End sleeve, circuit 87 D4 Location for M176 GF00.19-P-3001-02ZGA
    Assignment for M176 PE07.08-P-2101ZGE
Z7/73 End sleeve, circuit 87 D4 Location for M273 GF00.19-P-3001-01ZGA
    Assignment for M273 PE07.61-P-2101ZGA
Z7/73z1 Circuit 87M connector sleeve Assignment for M279 PE07.61-P-2101ZGD
Z7/73z4 Circuit 87/4 end sleeve Assignment for M176 PE07.08-P-2101ZGD
Z7/75 Circuit 87/3 connector sleeve Location for M176 GF00.19-P-3001-01ZGA
    Assignment for M176 PE07.08-P-2101ZGE
Z7/126z1 Sensor voltage supply connector sleeve Location for M279 GF00.19-P-3005-01ZGA
    Assignment for M279 PE07.61-P-2101ZGE
Z9 End sleeve 1 Location for M279 GF00.19-P-3005-01ZGA
    Location for OM642 GF00.19-P-3001-02ZGA
    Assignment for OM642 PE07.16-P-2101ZGC
    Assignment for M279 PE07.61-P-2101ZGE
Z20/8 Shielding placed inside insulating tubing Location GF00.19-P-3001-05ZGA
    Assignment PE54.15-P-2103ZGA
Z20/9 Shielding placed inside insulating tubing Location GF00.19-P-3001-05ZGA
    Assignment PE54.15-P-2103ZGA
Z20/11 Cable end insulation not stripped, placed inside insulated tubing Location GF00.19-P-3001-05ZGA
    Assignment PE54.15-P-2103ZGA
Z28/1 Left rear speaker group connector sleeve (+ signal) Assignment for Europe up to model year 2017 PE82.85-P-2101ZGA
    Assignment for Europe as of model year 2017 PE82.85-P-2101ZGF
Z28/1 Left rear speaker group connector sleeve (+ signal) Assignment for USA up to model year 2017 PE82.85-P-2101ZGC
    Assignment for USA as of model year 2017 PE82.85-P-2101ZGH
Z28/1 Left rear speaker group connector sleeve (+ signal) Assignment for Japan up to model year 2017 PE82.85-P-2101ZGE
    Assignment for Japan as of model year 2017 PE82.85-P-2101ZGI
Z28/2 Left rear speaker group connector sleeve (- signal) Assignment for Europe up to model year 2017 PE82.85-P-2101ZGA
    Assignment for Europe as of model year 2017 PE82.85-P-2101ZGF
Z28/2 Left rear speaker group connector sleeve (- signal) Assignment for USA up to model year 2017 PE82.85-P-2101ZGC
    Assignment for USA as of model year 2017 PE82.85-P-2101ZGH
Z28/2 Left rear speaker group connector sleeve (- signal) Assignment for Japan up to model year 2017 PE82.85-P-2101ZGE
    Assignment for Japan as of model year 2017 PE82.85-P-2101ZGI
Z28/3 Right rear speaker group connector sleeve (+ signal) Assignment for Europe up to model year 2017 PE82.85-P-2101ZGA
    Assignment for Europe as of model year 2017 PE82.85-P-2101ZGF
Z28/3 Right rear speaker group connector sleeve (+ signal) Assignment for USA up to model year 2017 PE82.85-P-2101ZGC
    Assignment for USA as of model year 2017 PE82.85-P-2101ZGH
Z28/3 Right rear speaker group connector sleeve (+ signal) Assignment for Japan up to model year 2017 PE82.85-P-2101ZGE
    Assignment for Japan as of model year 2017 PE82.85-P-2101ZGI
Z28/4 Right rear speaker group connector sleeve (- signal) Assignment for Europe up to model year 2017 PE82.85-P-2101ZGA
    Assignment for Europe as of model year 2017 PE82.85-P-2101ZGF
Z28/4 Right rear speaker group connector sleeve (- signal) Assignment for USA up to model year 2017 PE82.85-P-2101ZGC
    Assignment for USA as of model year 2017 PE82.85-P-2101ZGH
Z28/4 Right rear speaker group connector sleeve (- signal) Assignment for Japan up to model year 2017 PE82.85-P-2101ZGE
    Assignment for Japan as of model year 2017 PE82.85-P-2101ZGI
Z28/5 Left front door speaker group connector sleeve (+ signal) Location for Europe GF00.19-P-3001-04ZGA
    Assignment up to model year 2017 PE82.85-P-2101ZGA
    Assignment as of model year 2017 PE82.85-P-2101ZGF
Z28/5 Left front door speaker group connector sleeve (+ signal) Location for USA GF00.19-P-3001-04ZGA
    Assignment up to model year 2017 PE82.85-P-2101ZGC
    Assignment as of model year 2017 PE82.85-P-2101ZGH
Z28/5 Left front door speaker group connector sleeve (+ signal) Location for JAPAN GF00.19-P-3001-04ZGA
    Assignment up to model year 2017 PE82.85-P-2101ZGE
    Assignment as of model year 2017 PE82.85-P-2101ZGI
Z28/6 Left front door speaker group connector sleeve (- signal) Location for Europe GF00.19-P-3001-04ZGA
    Assignment up to model year 2017 PE82.85-P-2101ZGA
    Assignment as of model year 2017 PE82.85-P-2101ZGF
Z28/6 Left front door speaker group connector sleeve (- signal) Location for USA GF00.19-P-3001-04ZGA
    Assignment up to model year 2017 PE82.85-P-2101ZGC
    Assignment as of model year 2017 PE82.85-P-2101ZGH
Z28/6 Left front door speaker group connector sleeve (- signal) Location for JAPAN GF00.19-P-3001-04ZGA
    Assignment up to model year 2017 PE82.85-P-2101ZGE
    Assignment as of model year 2017 PE82.85-P-2101ZGI
Z28/7 Right front door speaker group connector sleeve (+ signal) Location for Europe GF00.19-P-3001-03ZGA
    Assignment up to model year 2017 PE82.85-P-2101ZGA
    Assignment as of model year 2017 PE82.85-P-2101ZGF
Z28/7 Right front door speaker group connector sleeve (+ signal) Location for USA GF00.19-P-3001-03ZGA
    Assignment up to model year 2017 PE82.85-P-2101ZGC
    Assignment as of model year 2017 PE82.85-P-2101ZGH
Z28/7 Right front door speaker group connector sleeve (+ signal) Location for JAPAN GF00.19-P-3001-03ZGA
    Assignment up to model year 2017 PE82.85-P-2101ZGE
    Assignment as of model year 2017 PE82.85-P-2101ZGI
Z28/8 Right front door speaker group connector sleeve (- signal) Location for Europe GF00.19-P-3001-03ZGA
    Assignment up to model year 2017 PE82.85-P-2101ZGA
    Assignment as of model year 2017 PE82.85-P-2101ZGF
Z28/8 Right front door speaker group connector sleeve (- signal) Location for USA GF00.19-P-3001-03ZGA
    Assignment up to model year 2017 PE82.85-P-2101ZGC
    Assignment as of model year 2017 PE82.85-P-2101ZGH
Z28/8 Right front door speaker group connector sleeve (- signal) Location for JAPAN GF00.19-P-3001-03ZGA
    Assignment up to model year 2017 PE82.85-P-2101ZGE
    Assignment as of model year 2017 PE82.85-P-2101ZGI
Z28/51 Telephone mute connector sleeve Assignment for Europe as of model year 2017 PE82.85-P-2101ZGG
    Assignment for USA as of model year 2017 PE82.85-P-2101ZGH
    Assignment with code EK1 (HERMES communications module LTE) as of model year 2017 PE82.85-P-2107ZGA
Z35/24 NOx sensor connector sleeve Assignment for OM642.8 PE14.40-P-2101ZGA
Z36/1 Rear PARKTRONIC sensors ground line connector sleeve Location GF00.19-P-3001-22ZGA
    Assignment PE54.65-P-2101ZGA
Z36/2 Rear PARKTRONIC sensors positive line connector sleeve Location GF00.19-P-3001-22ZGA
    Assignment PE54.65-P-2101ZGA
Z36/3 Front parking system sensors ground line connector sleeve Location GF00.19-P-3001-23ZGA
    Assignment PE54.65-P-2101ZGA
Z36/4 Front parking system sensors positive line connector sleeve Location GF00.19-P-3001-23ZGA
    Assignment PE54.65-P-2101ZGA
Z36/12z1 Headlamp range adjustment data line connector sleeve 1 Location GF00.19-P-3001-03ZGA
    Assignment PE82.10-P-2000ZGA
Z36/12z2 Headlamp range adjustment data line connector sleeve 2 Location GF00.19-P-3001-03ZGA
    Assignment PE82.10-P-2000ZGA
Z36/17 Rear sensor CAN (low) connector sleeve Assignment PE54.71-P-2100ZGA
Z36/19 Rear sensor CAN (high) connector sleeve Assignment PE54.71-P-2100ZGA
Z36/35 Rear radar sensors sensor power supply connector sleeve Assignment PE54.71-P-2100ZGA
Z36/36 Rear radar sensors sensor ground connector sleeve Assignment PE00.19-P-2800ZGB
Z36/41 Sensor ground line connector sleeve Location for M176 GF00.19-P-3001-02ZGA
    Assignment for M176 PE07.08-P-2101ZGE
Z36/42 Sensor ground line connector sleeve Location for M176 GF00.19-P-3001-01ZGA
    Assignment for M176 PE07.08-P-2101ZGE
Z36/43 Sensor ground line connector sleeve Location for M176 GF00.19-P-3001-01ZGA
    Assignment for M176 PE07.08-P-2101ZGE
Z36/44 Sensor ground line connector sleeve Location for M176 GF00.19-P-3001-02ZGA
    Assignment for M176 PE07.08-P-2101ZGE
Z36/45 Voltage supply connector sleeve Location for M176 GF00.19-P-3001-01ZGA
    Assignment for M176 PE07.08-P-2101ZGE
Z36/46 Voltage supply connector sleeve Location for M176 GF00.19-P-3001-02ZGA
    Assignment for M176 PE07.08-P-2101ZGE
Z44/1 Backup battery connector sleeve Location GF00.19-P-3001-03ZGA
    Assignment PE54.21-P-2127ZGC
Z50/3 Connector sleeve 3 Location GF00.19-P-3001-05ZGA
    Assignment PE54.15-P-2103ZGA
Z53/3z1 Left rear seat, seat heater ground line connector sleeve Assignment PE54.21-P-2110ZGA
Z53/3z2 Left rear seat heater power supply connector sleeve Assignment PE54.21-P-2110ZGA
Z53/3z3 Right rear seat, seat heater ground line connector sleeve Assignment PE54.21-P-2110ZGA
Z53/3z4 Right rear seat heater power supply connector sleeve Assignment PE54.21-P-2110ZGA
Z54/7 Footwell lamps connector sleeve Location GF00.19-P-3001-03ZGA
    Assignment PE54.21-P-2127ZGB
Z53/10 Seat heater ground line connector sleeve Assignment PE91.29-P-2003ZGA
Z53/16 Seat heater signal line connector sleeve Assignment PE91.29-P-2003ZGA
Z54/17z1 Roof spoiler end sleeve 1 Assignment PE82.10-P-2000ZGA
Z54/17z2 Roof spoiler end sleeve 2 Assignment PE82.10-P-2000ZGA
Z54/17z3 Rear roof additional lamp end sleeve 3 Assignment PE82.10-P-2000ZGA
Z54/17z4 Rear roof additional lamp end sleeve 4 Assignment PE82.10-P-2000ZGA
Z54/17z5 Rear roof additional lamp end sleeve 5 Assignment PE82.10-P-2000ZGA
Z56/18 Low temperature water pump connector sleeve Assignment PE54.15-P-2105ZGB
Z61/10 Driver seat backrest and head restraint adjustment motor connector sleeve Location GF00.19-P-3001-04ZGA
    Assignment PE91.29-P-2104ZGA
Z61/11 Front passenger seat backrest and head restraint adjustment motor connector sleeve Location GF00.19-P-3001-05ZGA
    Assignment PE91.29-P-2105ZGA
Z68/1 Instrument panel circuit 31 climate control LIN connector sleeve Location GF00.19-P-3001-03ZGA
    Assignment PE83.40-P-2101ZGA
Z68/2 Instrument panel climate control LIN positive line connector sleeve Location GF00.19-P-3001-03ZGA
    Assignment PE83.40-P-2101ZGA
Z68/7 Cockpit air conditioning sensor ground connector sleeve Location GF00.19-P-3001-03ZGA
    Assignment PE83.40-P-2101ZGA
Z81/6 Circuit 58d connector sleeve Location GF00.19-P-3001-09ZGA
    Assignment PE00.19-P-2600ZGA
Z100/5 Wake-up signal connector sleeve 2 Location GF00.19-P-3001-09ZGA
    Assignment up to model year 2017 PE82.85-P-2101ZGA
    Assignment as of model year 2017 PE82.85-P-2101ZGF
Z102/1 Steering column adjustment electric motor connector sleeve Location GF00.19-P-3001-03ZGA
    Assignment PE91.29-P-2104ZGA
Z104/4 Connector sleeve for 12V terminal 30 Assignment for M176 PE54.21-P-2141ZGA
Z108 Spray nozzle heater connector sleeve Location GF00.19-P-3001-02ZGA
    Assignment PE54.21-P-2127ZGB
Z142 Drivetrain LIN connector sleeve Assignment for M176 PE54.21-P-2141ZGA
Z200 Circuit 87 wiring harness connector sleeve Assignment for M273 PE07.61-P-2101ZGB
Z203/3 Alternator LIN signal connector sleeve Location for M157 GF00.19-P-3005-01ZGA
    Assignment for M157 PE07.08-P-2101ZGB
Z239z1 Rear Seat Entertainment system connector sleeve Assignment PE82.60-P-2240ZGA
Z239z2 Rear Seat Entertainment system connector sleeve Assignment PE82.60-P-2240ZGA
Z255/1 Right cylinder bank ignition coils ground line 1 connector sleeve Location for M176 GF00.19-P-3001-02ZGA
    Assignment for M176 PE07.08-P-2101ZGE
Z255/2 Left cylinder bank ignition coils ground line 1 connector sleeve Location for M176 GF00.19-P-3001-02ZGA
    Assignment for M176 PE07.08-P-2101ZGE
Z300/10 Connector sleeve/sensor Location for OM642.887 GF00.19-P-3001-02ZGA
    Assignment OM642.887 PE07.16-P-2101ZGD
Z300/11 Connector sleeve/sensors Location for OM642 GF00.19-P-3001-02ZGA
    Assignment OM642.886/970 PE07.16-P-2101ZGB
    Assignment OM642.887 PE07.16-P-2101ZGD
Z300/12 Connector sleeve/power supply/sensors Location for OM642 GF00.19-P-3001-02ZGA
    Assignment OM642.886/970 PE07.16-P-2101ZGB
    Assignment OM642.887 PE07.16-P-2101ZGD
Z300/13 Connector sleeve/sensors Location for OM642 GF00.19-P-3001-02ZGA
    Assignment PE07.16-P-2101ZGB
Z300/14 Connector sleeve/sensor Location for OM642 GF00.19-P-3001-02ZGA
    Assignment for OM642 PE07.16-P-2101ZGB
Z300/15 Connector sleeve/sensor Location for OM642 GF00.19-P-3001-02ZGA
    Assignment OM642.886/970 PE07.16-P-2101ZGB
    Assignment OM642.887 PE07.16-P-2101ZGD
Z300/16 Connector sleeve/sensor Location for OM642 GF00.19-P-3001-02ZGA
    Assignment OM642.886/970 PE07.16-P-2101ZGB
    Assignment for OM642 PE07.16-P-2101ZGD
Z300/17 Connector sleeve/sensors Location for OM642.887 GF00.19-P-3001-02ZGA
    Assignment OM642.887 PE07.16-P-2101ZGD
Z300/21 Connector sleeve/switch Location for OM642.887 GF00.19-P-3001-02ZGA
    Assignment OM642.887 PE07.16-P-2101ZGD
Z300/25 Sensor ground line connector sleeve Location for OM642.887 GF00.19-P-3001-02ZGA
    Assignment OM642.887 PE07.16-P-2101ZGD
Z300/26 Glow plug power supply connector sleeve Location for OM642.887 GF00.19-P-3001-02ZGA
    Assignment OM642.887 PE07.16-P-2101ZGD
  Location of Z-connector sleeves (line connections in wiring harness) - left of engine compartment   GF00.19-P-3001-01ZGA
  Location of Z-connector sleeves (line connections in wiring harness) - engine compartment, right   GF00.19-P-3001-02ZGA
  Location of Z-connector sleeves (line connections in wiring harness) - cockpit   GF00.19-P-3001-03ZGA
  Location of Z-connector sleeves (line connections in wiring harness) - interior compartment, left   GF00.19-P-3001-04ZGA
  Location of Z-connector sleeves (line connections in wiring harness) - interior compartment, right   GF00.19-P-3001-05ZGA
  Location of Z-connector sleeves (line connections in wiring harness) - center console   GF00.19-P-3001-09ZGA
  Location of Z-connector sleeves (line connections in wiring harness) - rear bumper   GF00.19-P-3001-22ZGA
  Location of Z-connector sleeves (line connections in wiring harness) - underfloor   GF00.19-P-3001-23ZGA
  Location of end sleeves - Engine   GF00.19-P-3005-01ZGA
scientia non olet · About LEMON Manuals
