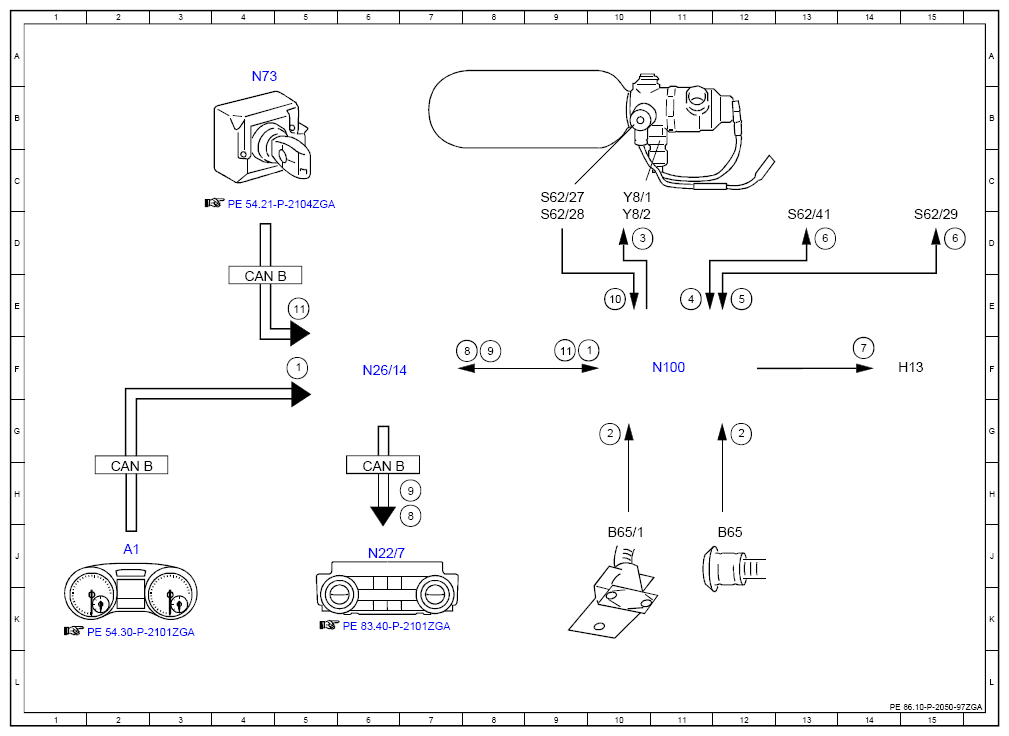

Electrical Function Schematic For Fire Extinguishing System - PE86.10-P-2050-97ZGA
Model 463 as of model year 2014 with code ZS8 (Protection class VR7 / glass area VR9)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle speed, signal | 5F |
| 1 | Vehicle speed, signal | 9F |
| 10 | Extinguishing agent tank pressure sensor, signal | 10E |
| 11 | Circuit 15, status | 5E |
| 11 | Circuit 15, status | 9F |
| 2 | Fire extinguishing system temperature sensor, signal | 10G |
| 2 | Fire extinguishing system temperature sensor, signal | 12G |
| 3 | 10D | |
| 4 | Fire extinguishing system activation button, status | 11E |
| 5 | Fire extinguishing system button, status | 12E |
| 6 | Light-emitting diode actuation | 15D |
| 6 | Light-emitting diode actuation | 13D |
| 7 | Warning buzzer, actuation | 14F |
| 8 | Switch on recirculated air mode, request | 8F |
| 8 | Switch on recirculated air mode, request | 7J |
| 9 | Blower motor, request | 7H |
| 9 | Blower motor, request | 8F |
| A1 | Instrument cluster | 2J |
| B65 | Engine fire extinguishing system temperature sensor | 12J |
| B65/1 | Rear fire extinguishing system temperature sensor | 10J |
| CAN B | Interior CAN | 6H |
| CAN B | Interior CAN | 4E |
| CAN B | Interior CAN | 2H |
| H13 | Fire extinguishing system warning buzzer | 15F |
| N100 | Fire extinguishing system control unit | 11F |
| N22/7 | Climate control and operating unit | 6J |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 6F |
| N73 | EIS [EZS] control unit | 4A |
| S62/27 | Extinguishing agent tank pressure sensor 1 | 9C |
| S62/28 | Extinguishing agent tank pressure sensor 2 | 9D |
| S62/29 | Fire extinguisher system manual activation switch | 15D |
| S62/41 | Fire extinguishing system activation button | 13D |
| Y8/1 | 10C | |
| Y8/2 | 10D |
