Remove/Install Line From Cartridge To Inerting System In Engine Compartment - AR86.10-P-0219GW

Model 463 with engine 157, 176, 279

up to model year 2019

with code 2U8 (Alternative refrigerant)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove/install
1	Disconnect ground line from battery	Model 463 (except 463.234) with engine 157, 176, 279 as of model year 2013 up to model year 2019 with code 2U8 (Alternative refrigerant)	AR54.10-P-0003GW
2	Remove complete left front wheel
		Model 463 with engine 157, 176, 279 up to model year 2019 with code 2U8 (Alternative refrigerant)	AP40.10-P-4050G
3	Remove left front fender liner

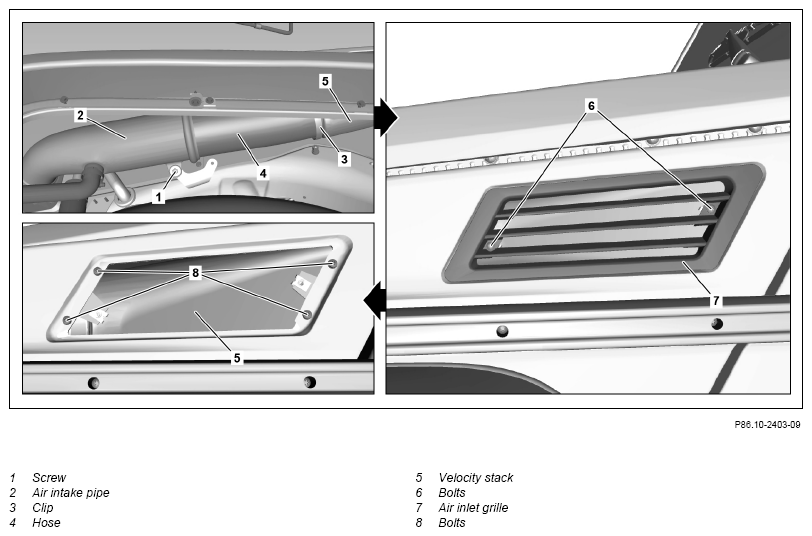

4	Remove screw (1)
5	Loosen clamp (3)
6	Detach air intake pipe (2) until hose (4) can be removed
7	Remove hose (4)
8	Remove screws (6) and remove air inlet grille (7)	Check clips on bolts (6) for damage, if event of complaint ↓ Replace clips.
9	Remove screws (8) and remove velocity stack (5)

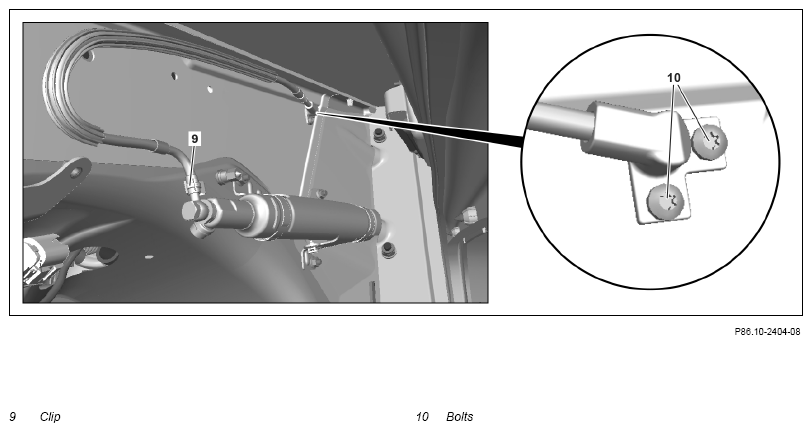

10	Loosen clamp (9)
11	Remove screws (10) and guide line out of the fender	Model 463 with engine 157, 176, 279 up to model year 2019 with code 2U8 (Alternative refrigerant) Bolt, gas distributor to partition	*BA86.10-P-1003-03J
12.1	Remove air-water duct	Model 463 with engine 157, 176, 279 up to model year 2019 with code 2U8 (Alternative refrigerant) Model 463 with engine 157, 279 as of model year 2013 up to model year 2019 with code 2U8 (Alternative refrigerant)	AR83.10-P-9998GW
12.2	Release weatherstrip from the firewall in the area of the passage of the line (14)	Model 463 with engine 157, 176, 279 up to model year 2019 with code 2U8 (Alternative refrigerant)

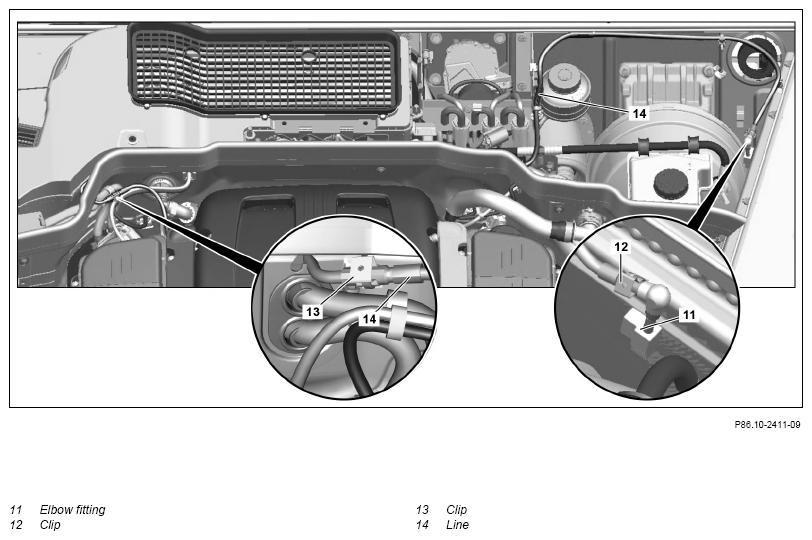

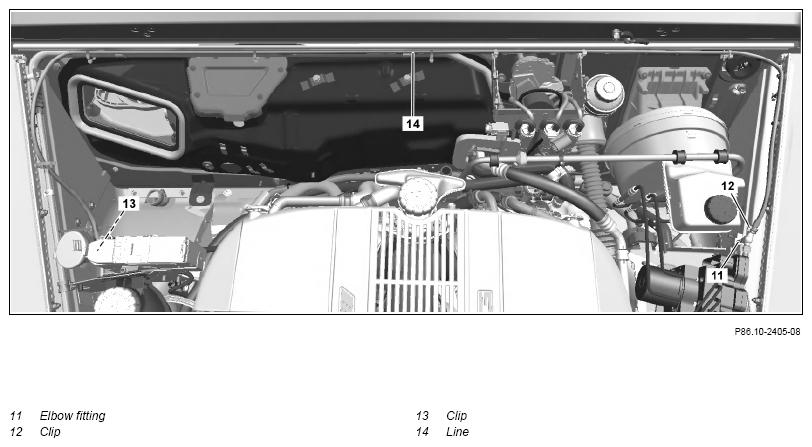

13	Loosen clamp (12)
14	Remove elbow fitting (11)	When installing a new line (14).
15	Loosen clamp (13)
16	Expose line (14) and remove	Damaged mounting material must be replaced.
17	Install in the reverse order
