Remove/Install Inertization System Line In Engine Compartment - AR86.10-P-0119GW
Model 463 with engine 176
up to model year 2019
with code 2U8 (Alternative refrigerant)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove center engine cover | ||

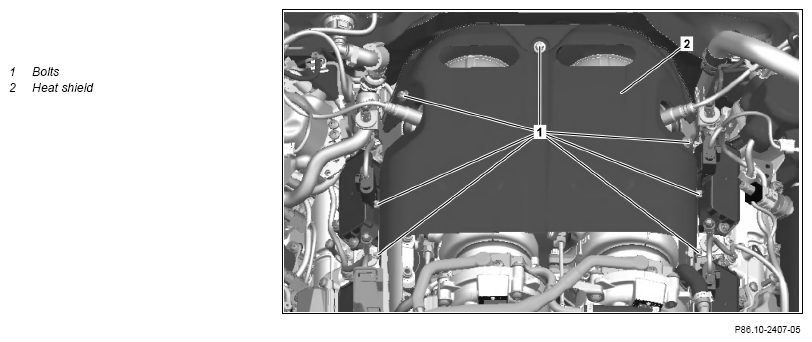

| 3 | Remove screw/bolts (1) and remove heat shield (2) | *BA09.40-P-1006-01ZA | |

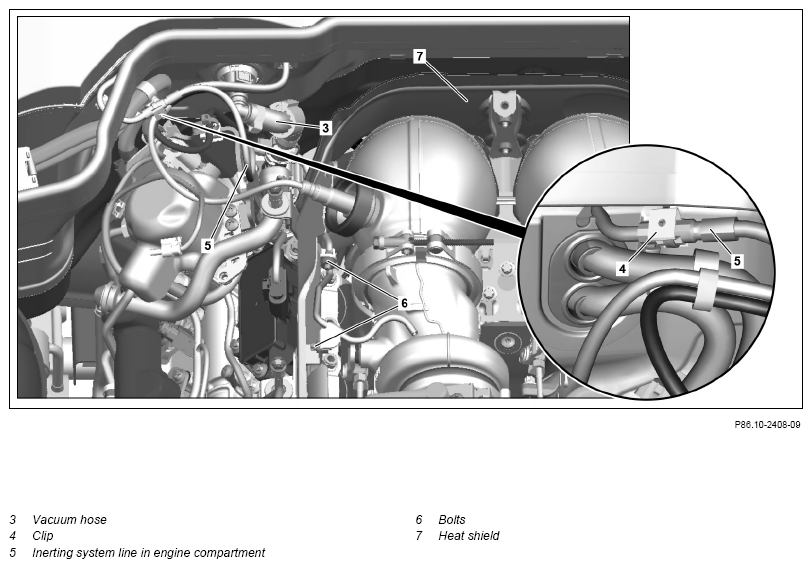

| 4 | Remove vacuum hose (3) | ||
| 5 | Detach clip (4) from inertization line in engine compartment (5) | ||
| 6 | Remove bolts (6) | *BA86.10-P-1002-03J | |
| 7 | Expose inerting system line in engine compartment (5) | ||
| 8 | Detach heat shield (7) so that the inerting system line in engine compartment (5) can be guided out | *BA09.40-P-1008-01ZA | |
| *BA09.40-P-1005-01ZA | |||
| 9 | Remove inerting system line in engine compartment (5) | ||
| 10 | Install in the reverse order |
TURBOCHARGER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.40-P-1005-01ZA | Bolt, rear heat shield bracket to crankcase | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.40-P-1006-01ZA | Bolt, upper heat shield to bracket/side heat shield | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.40-P-1008-01ZA | Bolt, rear heat shield to bracket | Nm | 9 |
INERTIZATION SYSTEM
| Number | Designation | Model 463 up to model year 2019 | Model 463 as of model year 2019 | |
|---|---|---|---|---|
| BA86.10-P-1002-03J | Bolt, piping for inerting to engine/stationary heater | Nm | 8 | 8 |
