Remove/Install Inertization Cartridge - AR86.10-P-0106GW
Model 463 with engine 157, 176, 279
up to model year 2019
with code 2U8 (Alternative refrigerant)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Disconnect battery ground line | Model 463 (except 463.234) with engine 157, 176, 279 as of model year 2013 up to model year 2019 with code 2U8 (Alternative refrigerant) |
AR54.10-P-0003GW |
| 2 | Remove left front fender liner | ||

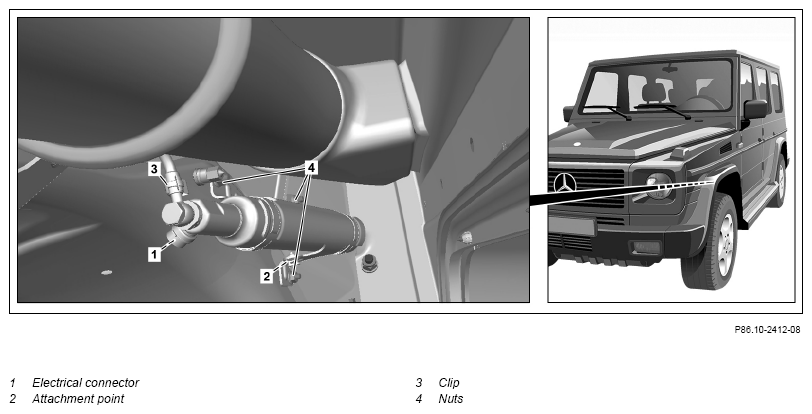

| 3 | Release and disconnect electrical connection (1) | ||
| 4 | Expose wiring harness on attachment point (2) | ||
| 5 | Release clamp (3) | ||
| 6 | Unscrew nuts (4) | *BA86.10-P-1001-03J | |
| 7 | Remove cartridge | ||
| 8 | Install in the reverse order |
INERTIZATION SYSTEM
| Number | Designation | Model 463 up to model year 2019 | |
|---|---|---|---|
| BA86.10-P-1001-03J | Nut, extinguishing agent tank to body | Nm | 4 |
