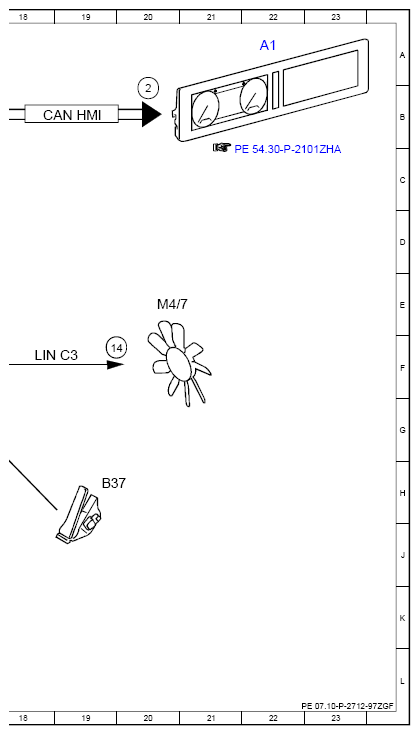

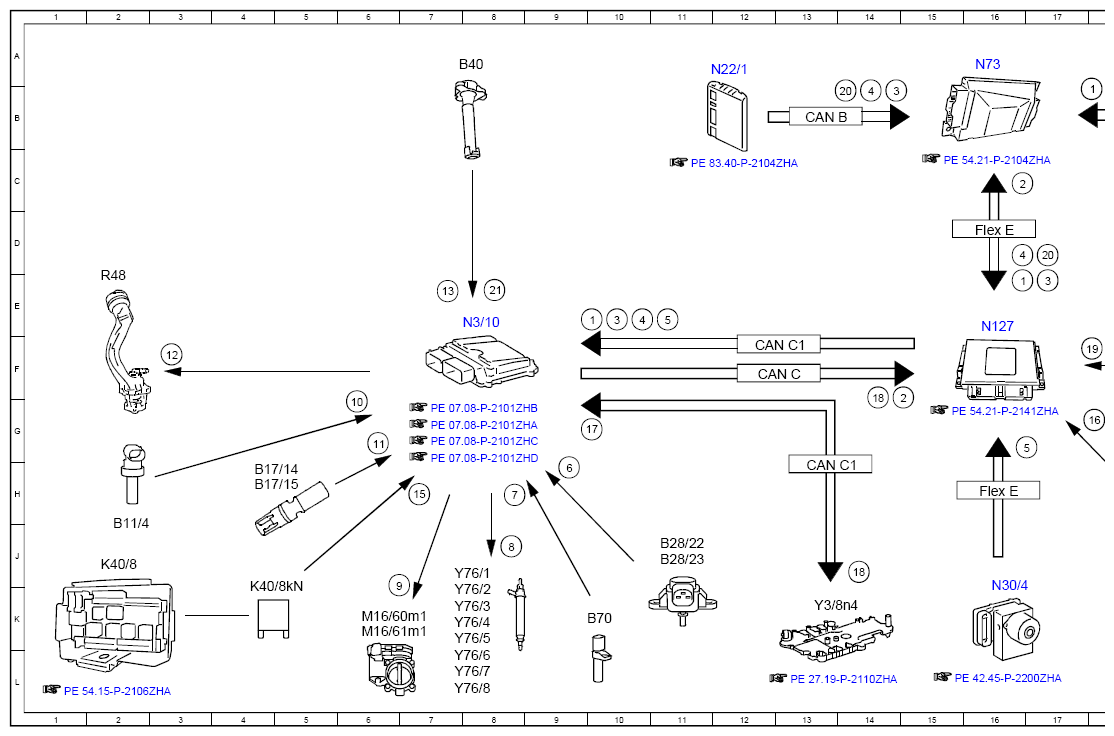

Electrical Function Schematic For Thermal Management - PE07.10-P-2712-97ZGF
Engine 176.9, 177.9 in model 463 as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle speed, signal | 18B |
| 1 | Vehicle speed, signal | 16E |
| 1 | Vehicle speed, signal | 10E |
| 10 | Coolant temperature sensor, signal | 6G |
| 11 | Charge air temperature sensor, signal | 6G |
| 12 | Coolant thermostat heating element, actuation | 3F |
| 13 | Oil sensor (oil level, temperature and quality), signal | 7E |
| 14 | Fan motor, target motor speed request | 19F |
| 15 | Circuit 87, status | 7H |
| 16 | Accelerator pedal sensor, signal | 18G |
| 17 | Transmission control, signal | 10G |
| 18 | Engine running, signal | 14J |
| 18 | Engine running, signal | 14G |
| 19 | Fan motor, status | 18F |
| 2 | Instrument cluster, message | 16C |
| 2 | Instrument cluster, message | 15G |
| 2 | Instrument cluster, message | 20B |
| 20 | Fan motor, request | 14B |
| 20 | Fan motor, request | 17D |
| 21 | Oil temperature sensor, signal | 8E |
| 3 | Air conditioning, status | 14B |
| 3 | Air conditioning, status | 17E |
| 3 | Air conditioning, status | 10E |
| 4 | Outside temperature, signal | 14B |
| 4 | Outside temperature, signal | 16D |
| 4 | Outside temperature, signal | 10E |
| 5 | Wheel speed, signal | 16G |
| 5 | Wheel speed, signal | 11E |
| 6 | Engine load, signal | 9H |
| 7 | Engine speed, signal | 8H |
| 8 | Fuel injectors, actuation | 8J |
| 9 | Throttle valve actuator motor, actuation | 6J |
| A1 | Instrument cluster | 22A |
| B11/4 | Coolant temperature sensor | 2J |
| B17/14 | Left charge air temperature sensor | 4H |
| B17/15 | Right charge air temperature sensor | 4H |
| B28/22 | Left pressure sensor downstream of throttle valve | 11J |
| B28/23 | Right pressure sensor downstream of throttle valve | 11J |
| B37 | Accelerator pedal sensor | 19H |
| B40 | Oil sensor (oil level, temperature and quality) | 8A |
| B70 | Crankshaft Hall sensor | 9K |
| CAN B | Interior CAN | 13B |
| CAN C | Drivetrain CAN | 12F |
| CAN C1 | Drivetrain CAN | 12F |
| CAN C1 | Drivetrain CAN | 13H |
| CAN HMI | User interface CAN | 19B |
| Flex E | Chassis FlexRay | 16D |
| Flex E | Chassis FlexRay | 16H |
| K40/8 | Engine fuse and relay module | 2J |
| K40/8kN | Circuit 87M relay | 4K |
| LIN C3 | Drivetrain LIN | 18F |
| M16/60m1 | Left throttle valve actuator motor | 6K |
| M16/61m1 | Right throttle valve actuator motor | 6K |
| M4/7 | Engine and AC electric suction fan with integrated control | 20E |
| N127 | Drivetrain control unit | 16E |
| N22/1 | Climate control control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 8E |
| N30/4 | ESP control unit | 16K |
| N73 | EIS [EZS] control unit | 16A |
| R48 | Coolant thermostat heating element | 2E |
| Y3/8n4 | Fully integrated transmission control (VGS) control unit | 13K |
| Y76/1 | Cylinder 1 fuel injector | 7J |
| Y76/2 | Cylinder 2 fuel injector | 7K |
| Y76/3 | Cylinder 3 fuel injector | 7K |
| Y76/4 | Cylinder 4 fuel injector | 7K |
| Y76/5 | Cylinder 5 fuel injector | 7K |
| Y76/6 | Cylinder 6 fuel injector | 7L |
| Y76/7 | Cylinder 7 fuel injector | 7L |
| Y76/8 | Cylinder 8 fuel injector | 7L |
