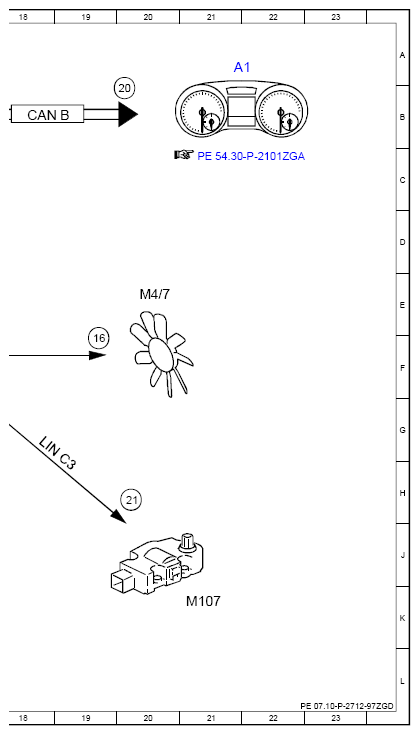

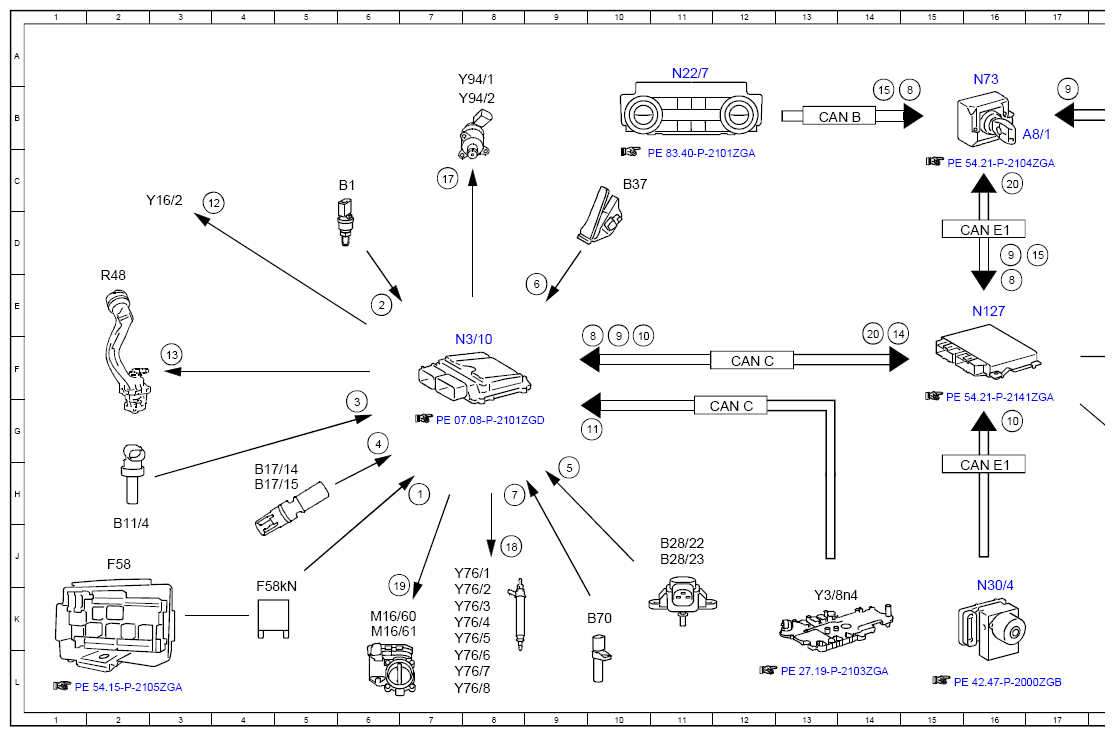

Electrical Function Schematic For Thermal Management - PE07.10-P-2712-97ZGD
Engine 176.9 in model 463 as of model year 2016 up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 7H |
| 10 | Wheel speed, signal | 16G |
| 10 | Wheel speed, signal | 10F |
| 11 | Transmission oil temperature sensor, signal | 10G |
| 12 | Heating system shutoff valve, actuation | 3C |
| 13 | Coolant thermostat heating element, actuation | 3F |
| 14 | Fan motor, target motor speed request | 14F |
| 15 | Fan motor, request | 14B |
| 15 | Fan motor, request | 17D |
| 16 | Fan motor, actuation | 19F |
| 17 | Quantity control valve, actuation | 7C |
| 18 | Fuel injectors, actuation | 8J |
| 19 | Throttle valve actuator, actuation | 6K |
| 2 | Oil temperature sensor, signal | 6E |
| 20 | Instrument cluster, request | 16C |
| 20 | Instrument cluster, request | 20B |
| 20 | Instrument cluster, request | 14F |
| 21 | Actuator motors, actuation | 20H |
| 3 | Coolant temperature sensor, signal | 6G |
| 4 | Charge air temperature sensor, signal | 6G |
| 5 | Pressure sensor downstream of throttle valve, signal | 9G |
| 6 | Accelerator pedal sensor, signal | 9E |
| 7 | Crankshaft Hall sensor, signal | 8H |
| 8 | Air conditioning, status | 15B |
| 8 | Air conditioning, status | 16E |
| 8 | Air conditioning, status | 10F |
| 9 | Vehicle speed, signal | 17B |
| 9 | Vehicle speed, signal | 16D |
| 9 | Vehicle speed, signal | 10F |
| A1 | Instrument cluster | 21A |
| A8/1 | Transmitter key | 17B |
| B1 | Engine oil temperature sensor | 6C |
| B11/4 | Coolant temperature sensor | 2J |
| B17/14 | Left charge air temperature sensor | 4H |
| B17/15 | Right charge air temperature sensor | 4H |
| B28/22 | Left pressure sensor downstream of throttle valve | 11J |
| B28/23 | Right pressure sensor downstream of throttle valve | 11J |
| B37 | Accelerator pedal sensor | 10C |
| B70 | Crankshaft Hall sensor | 9K |
| CAN B | Interior CAN | 13B |
| CAN B | Interior CAN | 18B |
| CAN C | Drivetrain CAN | 12F |
| CAN C | Drivetrain CAN | 12G |
| CAN E1 | Chassis CAN 1 | 16D |
| CAN E1 | Chassis CAN 1 | 16H |
| F58 | Front passenger footwell fuse and relay module | 2J |
| F58kN | Circuit 87M relay | 4K |
| LIN C3 | Drivetrain LIN | 18G |
| M107 | Engine cooling air flap actuator motor | 21K |
| M16/60 | Left throttle valve actuator | 6K |
| M16/61 | Right throttle valve actuator | 6K |
| M4/7 | Engine and AC electric suction fan with integrated control | 20E |
| N127 | Drivetrain control unit | 16E |
| N22/7 | Climate control control and operating unit | 11A |
| N3/10 | ME-SFI [ME] control unit | 8F |
| N30/4 | ESP control unit | 16K |
| N73 | EIS [EZS] control unit | 16A |
| R48 | Coolant thermostat heating element | 2E |
| Y16/2 | Heating system shutoff valve | 2C |
| Y3/8n4 | Fully integrated transmission control (VGS) control unit | 13K |
| Y76/1 | Cylinder 1 fuel injector | 7J |
| Y76/2 | Cylinder 2 fuel injector | 7K |
| Y76/3 | Cylinder 3 fuel injector | 7K |
| Y76/4 | Cylinder 4 fuel injector | 7K |
| Y76/5 | Cylinder 5 fuel injector | 7K |
| Y76/6 | Cylinder 6 fuel injector | 7L |
| Y76/7 | Cylinder 7 fuel injector | 7L |
| Y76/8 | Cylinder 8 fuel injector | 7L |
| Y94/1 | Left quantity control valve | 8A |
| Y94/2 | Right quantity control valve | 8B |
