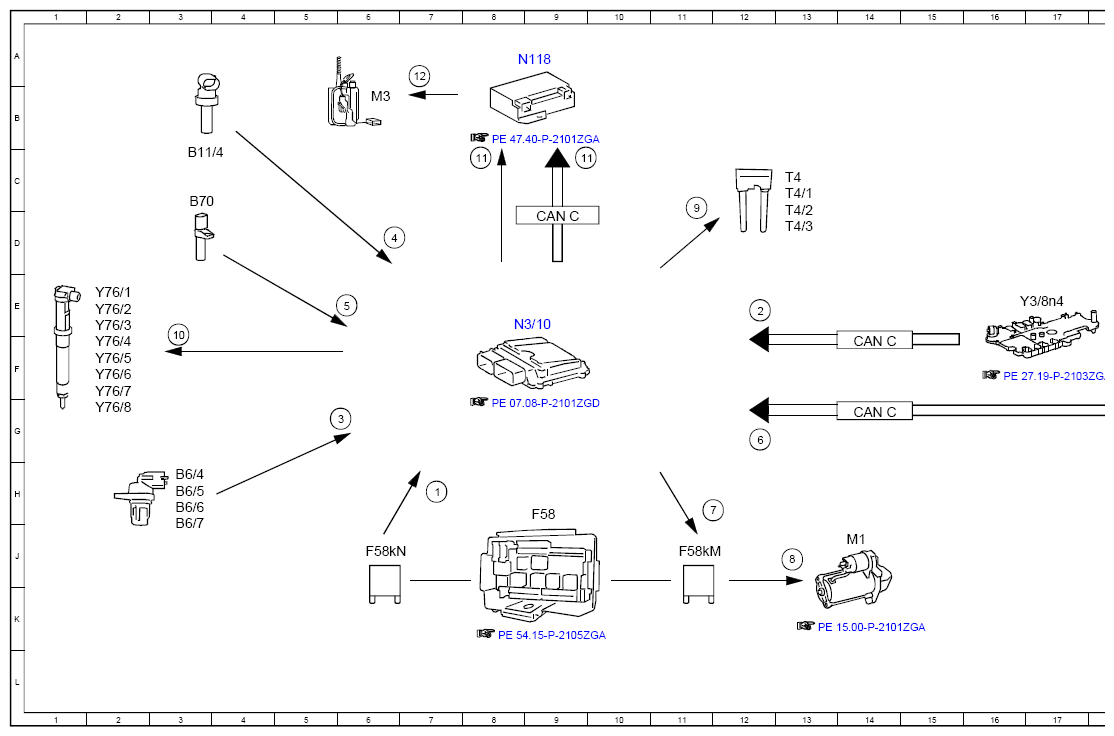

Electrical Function Schematic For Starting - PE07.10-P-2701-97ZGD
Engine 176.9 in model 463 as of model year 2016 up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 7H |
| 10 | Fuel injectors, actuation | 3F |
| 11 | Fuel pump, request ON | 9C |
| 11 | Fuel pump, request ON | 8C |
| 12 | Fuel pump, actuation | 7A |
| 2 | Gear range, status | 12E |
| 3 | Camshaft Hall sensor, signal | 6G |
| 4 | Coolant temperature sensor, signal | 6D |
| 5 | Crankshaft Hall sensor, signal | 6E |
| 6 | Circuit 50, status | 20H |
| 6 | Circuit 50, status | 12G |
| 7 | Starter circuit 50 relay, actuation | 11H |
| 8 | Starter, actuation | 13J |
| 9 | Ignition coils, actuation | 11D |
| B11/4 | Coolant temperature sensor | 3C |
| B6/4 | Left intake camshaft Hall sensor | 3H |
| B6/5 | Right intake camshaft Hall sensor | 3H |
| B6/6 | Left exhaust camshaft Hall sensor | 3H |
| B6/7 | Right exhaust camshaft Hall sensor | 3J |
| B70 | Crankshaft Hall sensor | 3C |
| CAN C | Drivetrain CAN | 9D |
| CAN C | Drivetrain CAN | 14F |
| CAN C | Drivetrain CAN | 14G |
| CAN E1 | Chassis CAN 1 | 20H |
| F58 | Front passenger footwell fuse and relay module | 9H |
| F58kM | Starter circuit 50 relay | 11J |
| F58kN | Circuit 87M relay | 6J |
| M1 | Starter | 14J |
| M3 | Fuel pump (FP) | 6B |
| N118 | Fuel pump control unit | 9A |
| N127 | Drivetrain control unit | 20F |
| N3/10 | ME-SFI [ME] control unit | 8E |
| N73 | EIS [EZS] control unit | 20J |
| T4 | Cylinder 1 + 2 ignition coil | 13C |
| T4/1 | Cylinder 3 + 4 ignition coil | 13C |
| T4/2 | Cylinder 5 + 6 ignition coil | 13D |
| T4/3 | Cylinder 7 + 8 ignition coil | 13D |
| Y3/8n4 | Fully integrated transmission control (VGS) control unit | 17E |
| Y76/1 | Cylinder 1 fuel injector | 2E |
| Y76/2 | Cylinder 2 fuel injector | 2E |
| Y76/3 | Cylinder 3 fuel injector | 2E |
| Y76/4 | Cylinder 4 fuel injector | 2F |
| Y76/5 | Cylinder 5 fuel injector | 2F |
| Y76/6 | Cylinder 6 fuel injector | 2F |
| Y76/7 | Cylinder 7 fuel injector | 2F |
| Y76/8 | Cylinder 8 fuel injector | 2G |
