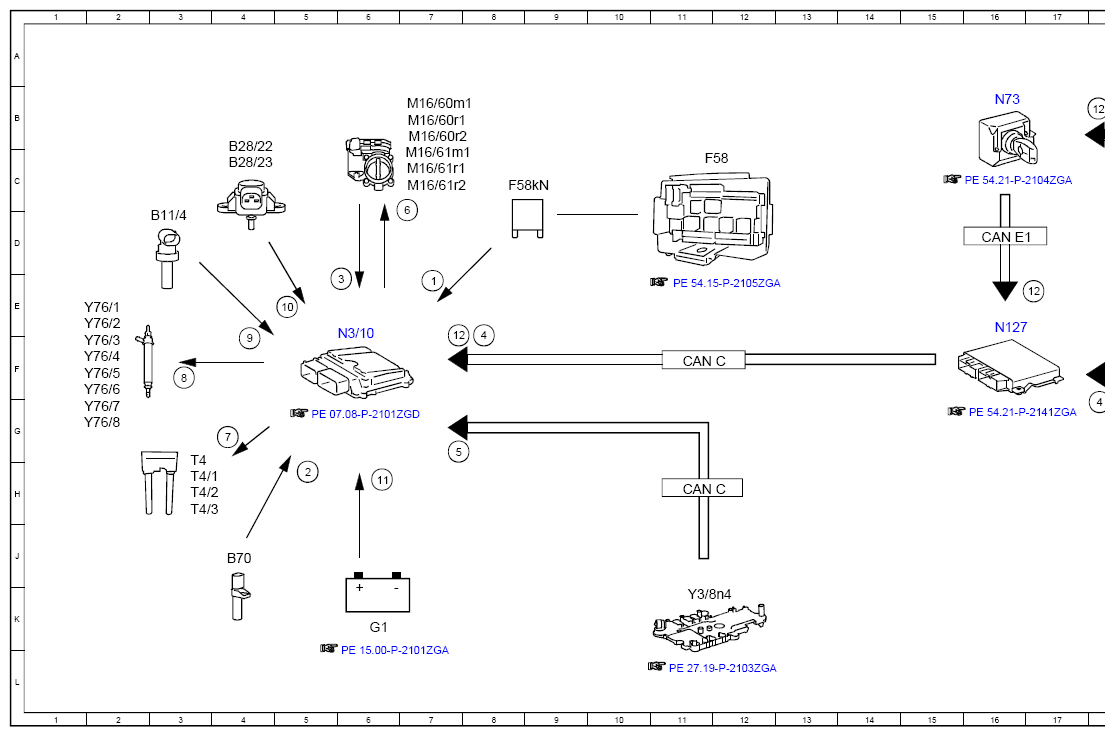

Electrical Function Schematic For RPM Control - PE07.10-P-2708-97ZGD
Engine 176.9 in model 463 as of model year 2016 up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 7E |
| 10 | Pressure sensor downstream of throttle valve, signal | 5E |
| 11 | Circuit 30, status | 6H |
| 12 | Air conditioning, status | 7F |
| 12 | Air conditioning, status | 17E |
| 12 | Air conditioning, status | 18B |
| 2 | Crankshaft Hall sensor, signal | 5H |
| 3 | Throttle valve actuator, signal | 6E |
| 4 | Wheel speed, signal | 8F |
| 4 | Wheel speed, signal | 18G |
| 5 | Gear range, status | 7G |
| 6 | Throttle valve actuator actuator motor, actuation | 7D |
| 7 | Ignition coils, actuation | 4G |
| 8 | Fuel injectors, actuation | 3F |
| 9 | Coolant temperature sensor, signal | 4F |
| B11/4 | Coolant temperature sensor | 3D |
| B28/22 | Left pressure sensor downstream of throttle valve | 4C |
| B28/23 | Right pressure sensor downstream of throttle valve | 4C |
| B70 | Crankshaft Hall sensor | 4J |
| CAN B | Interior CAN | 19B |
| CAN C | Drivetrain CAN | 11F |
| CAN C | Drivetrain CAN | 11H |
| CAN E1 | Chassis CAN 1 | 16D |
| CAN E1 | Chassis CAN 1 | 19F |
| F58 | Front passenger footwell fuse and relay module | 11C |
| F58kN | Circuit 87M relay | 8C |
| G1 | Battery | 6K |
| M16/60m1 | Left throttle valve actuator motor | 7B |
| M16/60r1 | Left actual value potentiometer 1 | 7B |
| M16/60r2 | Left actual value potentiometer 2 | 7B |
| M16/61m1 | Right throttle valve actuator motor | 7C |
| M16/61r1 | Right actual value potentiometer 1 | 7C |
| M16/61r2 | Right actual value potentiometer 2 | 7C |
| N127 | Drivetrain control unit | 16E |
| N22/7 | Climate control control and operating unit | 21B |
| N3/10 | ME-SFI [ME] control unit | 6F |
| N30/4 | ESP control unit | 21F |
| N73 | EIS [EZS] control unit | 16B |
| T4 | Cylinder 1 + 2 ignition coil | 3H |
| T4/1 | Cylinder 3 + 4 ignition coil | 3H |
| T4/2 | Cylinder 5 + 6 ignition coil | 3H |
| T4/3 | Cylinder 7 + 8 ignition coil | 3H |
| Y3/8n4 | Fully integrated transmission control (VGS) control unit | 11K |
| Y76/1 | Cylinder 1 fuel injector | 1E |
| Y76/2 | Cylinder 2 fuel injector | 1E |
| Y76/3 | Cylinder 3 fuel injector | 1F |
| Y76/4 | Cylinder 4 fuel injector | 1F |
| Y76/5 | Cylinder 5 fuel injector | 1F |
| Y76/6 | Cylinder 6 fuel injector | 1F |
| Y76/7 | Cylinder 7 fuel injector | 1G |
| Y76/8 | Cylinder 8 fuel injector | 1G |
