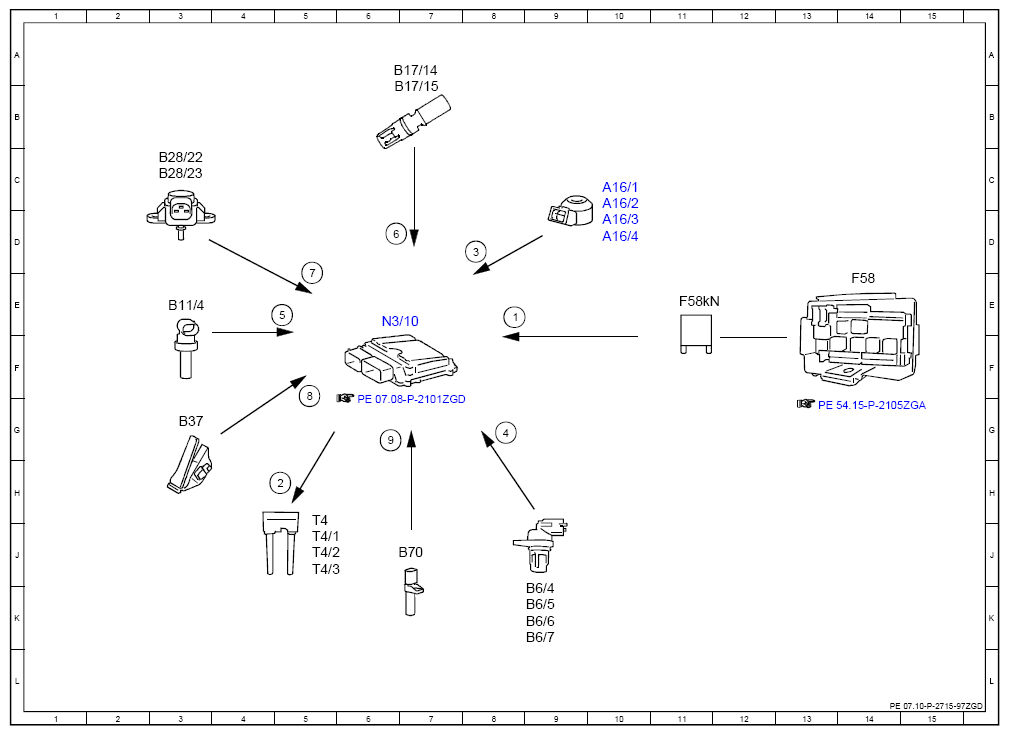

Electrical Function Schematic For Knock Control - PE07.10-P-2715-97ZGD
Engine 176.9 in model 463 as of model year 2016 up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 8E |
| 2 | Ignition coils, actuation | 5H |
| 3 | Knock sensor, signal | 8D |
| 4 | Camshaft Hall sensor, signal | 8G |
| 5 | Coolant temperature sensor, signal | 5E |
| 6 | Charge air temperature sensor, signal | 6D |
| 7 | Pressure sensor downstream of throttle valve, signal | 5D |
| 8 | Accelerator pedal sensor, signal | 5G |
| 9 | Crankshaft Hall sensor, signal | 6G |
| A16/1 | Knock sensor 1 | 10C |
| A16/2 | Knock sensor 2 | 10C |
| A16/3 | Knock sensor 3 | 10D |
| A16/4 | Knock sensor 4 | 10D |
| B11/4 | Coolant temperature sensor | 3E |
| B17/14 | Left charge air temperature sensor | 7A |
| B17/15 | Right charge air temperature sensor | 7B |
| B28/22 | Left pressure sensor downstream of throttle valve | 3C |
| B28/23 | Right pressure sensor downstream of throttle valve | 3C |
| B37 | Accelerator pedal sensor | 3G |
| B6/4 | Left intake camshaft Hall sensor | 9K |
| B6/5 | Right intake camshaft Hall sensor | 9K |
| B6/6 | Left exhaust camshaft Hall sensor | 9K |
| B6/7 | Right exhaust camshaft Hall sensor | 9K |
| B70 | Crankshaft Hall sensor | 6J |
| F58 | Front passenger footwell fuse and relay module | 14E |
| F58kN | Circuit 87M relay | 11E |
| N3/10 | ME-SFI [ME] control unit | 6E |
| T4 | Cylinder 1 + 2 ignition coil | 5J |
| T4/1 | Cylinder 3 + 4 ignition coil | 5J |
| T4/2 | Cylinder 5 + 6 ignition coil | 5J |
| T4/3 | Cylinder 7 + 8 ignition coil | 5J |
