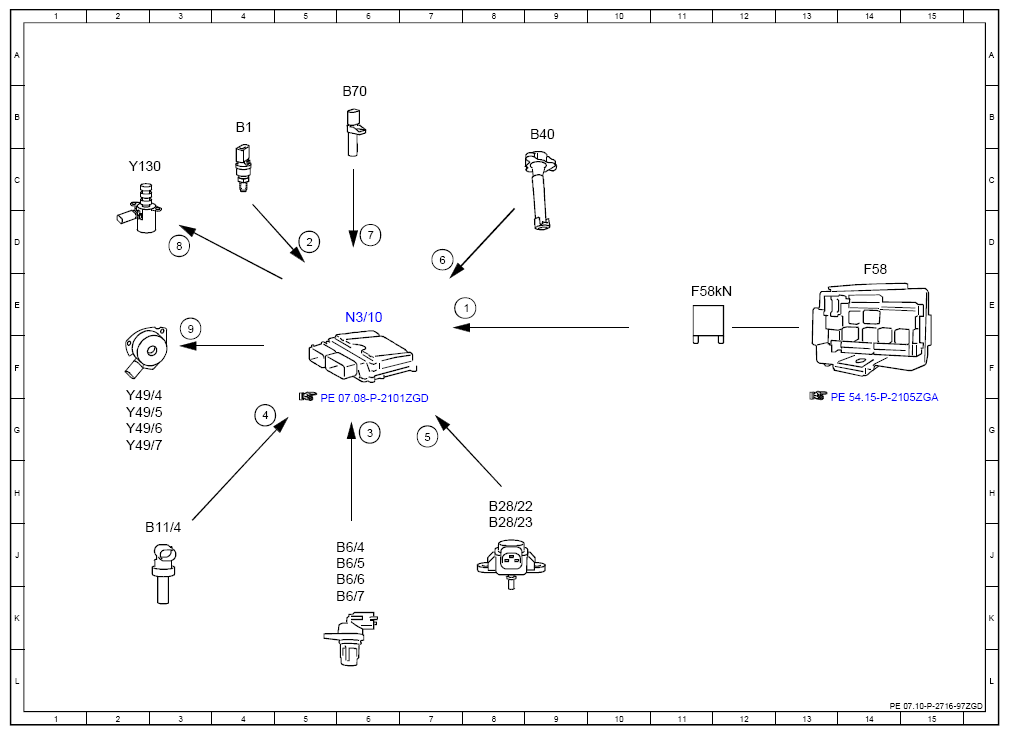

Electrical Function Schematic For Camshaft Adjustment - PE07.10-P-2716-97ZGD
Engine 176.9 in model 463 as of model year 2016 up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 8E |
| 2 | Oil temperature sensor, signal | 5D |
| 3 | Camshaft Hall sensor, signal | 6G |
| 4 | Coolant temperature sensor, signal | 4G |
| 5 | Pressure sensor downstream of throttle valve, signal | 7G |
| 6 | Oil sensor (oil level, temperature and quality), signal | 7D |
| 7 | Crankshaft Hall sensor, signal | 6D |
| 8 | Engine oil pump valve, actuation | 3D |
| 9 | Camshaft solenoids, actuation | 3E |
| B1 | Engine oil temperature sensor | 4B |
| B11/4 | Coolant temperature sensor | 3J |
| B28/22 | Left pressure sensor downstream of throttle valve | 8H |
| B28/23 | Right pressure sensor downstream of throttle valve | 8J |
| B40 | Oil sensor (oil level, temperature and quality) | 9B |
| B6/4 | Left intake camshaft Hall sensor | 5J |
| B6/5 | Right intake camshaft Hall sensor | 5J |
| B6/6 | Left exhaust camshaft Hall sensor | 5J |
| B6/7 | Right exhaust camshaft Hall sensor | 5K |
| B70 | Crankshaft Hall sensor | 6B |
| F58 | Front passenger footwell fuse and relay module | 14E |
| F58kN | Circuit 87M relay | 11E |
| N3/10 | ME-SFI [ME] control unit | 6E |
| Y130 | Engine oil pump valve | 2C |
| Y49/4 | Left intake camshaft solenoid | 2G |
| Y49/5 | Right intake camshaft solenoid | 2G |
| Y49/6 | Left exhaust camshaft solenoid | 2G |
| Y49/7 | Right exhaust camshaft solenoid | 2G |
