Remove/Install Left Oxygen Sensor Downstream Of Catalytic Converter - AR07.04-P-0082XGA

Engine 176 in model 463

as of model year 2019

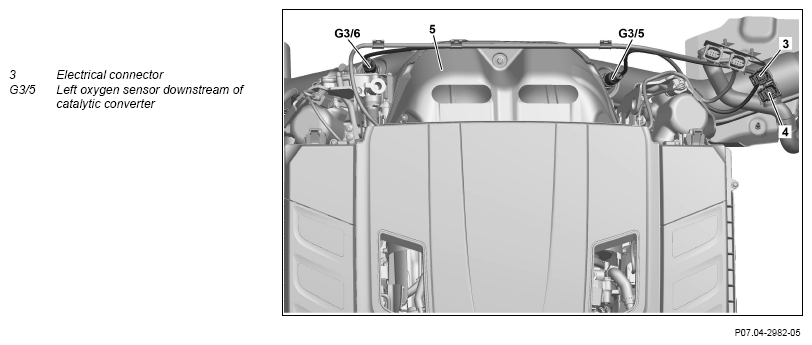

Fig 1: Left Oxygen Sensor Downstream Of Catalytic Converter Components Location - Engine 176 In Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Remove/install
1	Remove left-hand air filter housing	: Only install upper engine cover after the leak test.	AR09.10-P-1151XGA
2	Unclip electrical line of lambda sensor on left after catalytic converter (G3/5)

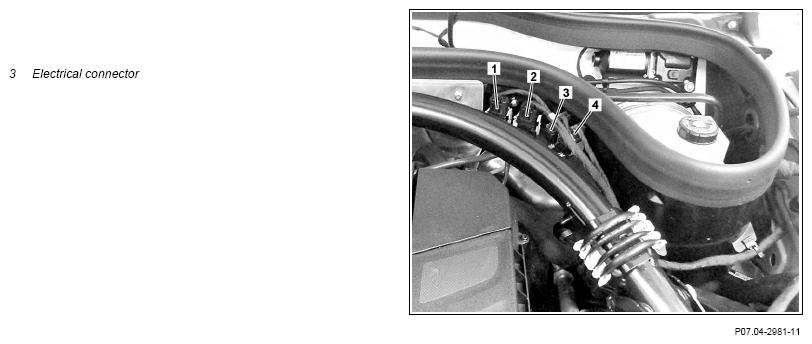

3	Release and disconnect electrical connection (3)
4	Remove left oxygen sensor downstream of catalytic converter (G3/5)	Commercially available devices/tools 22 mm lambda sensor socket : Coat thread with heat- resistant lubricant.
		Oxygen sensor upstream of catalytic converter to exhaust system at front	*BA14.00-P-1001-02B
		Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
		Oxygen sensor downstream of catalytic converter to exhaust system at front	*BA14.00-P-1002-02B
5	Cover sensor tip of lambda sensor on left after catalytic converter (G3/5) with protective cover	When reusing oxygen sensor on left after catalytic converter (G3/5).
		Set of protective caps	Fig 3
6	Seal threaded hole of left lambda sensor downstream of catalytic converter (G3/5) with suitable stop plug	Set of plugs	Fig 2
7	Install in the reverse order
8	Read out and erase fault memory
			AD00.00-P-2000-04B
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
9	Perform an engine test run; check engine for functionality and exhaust system for leaktightness
10	Install upper engine cover
