Mount High-Pressure Lines - AR07.03-P-1010-02MNA
Engine 176 in model 167
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
| 30.01.2017 | Union nut of fuel line to fuel distributor / high-pressure fuel pump | BA07.03-P-1001-01H |
| Number | Designation | Engine 176 | Engine 177 | |||
|---|---|---|---|---|---|---|
| BA07.03-P-1001-01H | Union nut, fuel line to fuel distributor/fuelsystemhigh-pressure pump | In case of reusability | Nm | 22 | 22 | |
| For new lines | Stage 1 | Nm | 15 | 15 | ||
| Stage 2 | ∠° | 90 | 90 | |||
| Number | Designation | Engine 176 | Engine 177 | |
|---|---|---|---|---|
| BA07.03-P-1002-01H | Bolt, fuel line service connection to left cylinder head cover | Nm | 9 | 9 |
| Number | Designation | Engine 176 | Engine 177 | |
|---|---|---|---|---|
| BA07.03-P-1004-01H | Bolt, fuel line clamp to engine/bracket | Nm | 9 | 9 |
The union nuts of the low-pressure line (7) and the high-pressure lines (6, 8) may only be tightened after installation of the low-pressure line (7) and high-pressure lines (6, 8) using a tightening torque.
Leakage will occur otherwise.
Do not kink or bend and low-pressure line (7) and high-pressure lines (6, 8).
- Loosely mount low-pressure line (7) on high-pressure pumps (2, 3).
- Tighten screw/bolts (9) after aligning the low-pressure line (7) and the high-pressure lines (6, 8)
.
- Mount high-pressure line (8) on left rail (5) and on left high-pressure pump (3).
Clamps (1) must be aligned before screwing on. Check for correct routing of the low-pressure line (7) and the high-pressure lines (6, 8).
- Mount high-pressure line (6) on the right rail (4) and on right high-pressure pump (2).

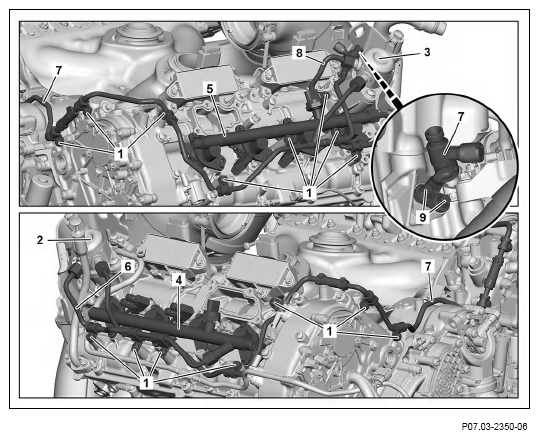

ENGINE 177 in MODEL 205
- Tighten clamp (1) of the low-pressure line (7) and the high-pressure lines (6, 8) to cylinder head cover
- Tighten union nuts
Comply with the tightening torques exactly.
Leaks can occur otherwise.

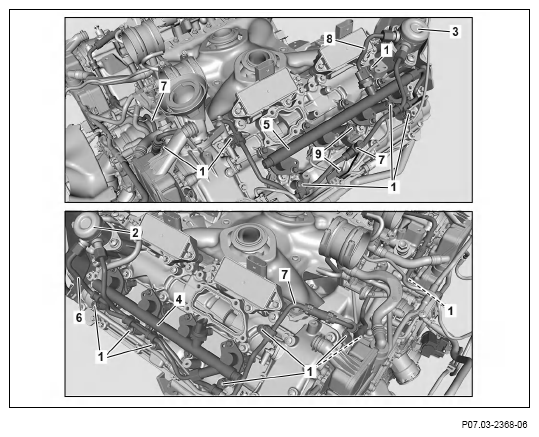

ENGINE 176 in MODEL 463
