Disconnect/Connect Engine Wiring Harness To Remove Left Cylinder Head Cover - AR15.18-P-1000-07XGA
Engine 176 in model 463
as of model year 2019
GROUND STRAP
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA15.10-P-1003-05F | Bolt, engine wiring harness ground to cylinder head cover | Nm | 9 |
ENGINE WIRING HARNESS
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA15.18-P-1001-01G | Bolt, engine wiring harness to cylinder head cover | Nm | 9 |

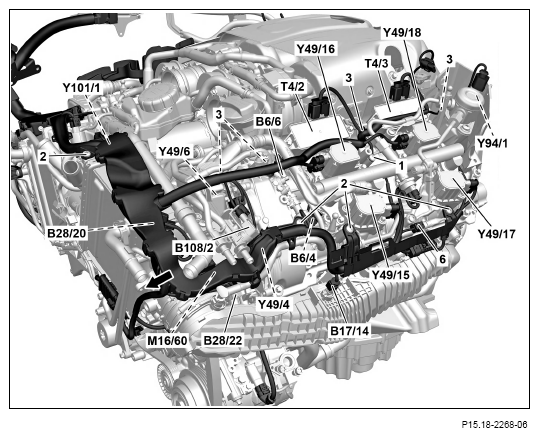

- Remove screw/bolts (2)
.
- Remove screw (1) of ground line
- Release and disconnect electrical connector of left quantity control valve (Y94/1).
- Release and disconnect electrical connector of ignition coil for cylinders 5+6 (T4/2).
- Release and disconnect electrical connector of ignition coil for cylinders 7+8 (T4/3).
- Release and disconnect electrical connector (6) to knock sensor 4 (A16/4).
- Release and disconnect electrical connector of left intake camshaft Hall sensor (B6/4).
- Release and disconnect electrical connector of left exhaust camshaft Hall sensor (B6/6).
- Release and disconnect electrical connector of left charge air temperature sensor (B17/14).
- Release and disconnect electrical connector of pressure sensor downstream of left throttle valve (B28/22).
- Release and disconnect electrical connector of left intake camshaft adjustment solenoid (Y49/4).
- Release and disconnect electrical connector of left exhaust camshaft adjustment solenoid (Y49/6).
- Release and disconnect electrical connector of right purging pressure sensor (B108/2).
- Release and disconnect electrical connector of left throttle valve actuator (M16/60).
- Release and disconnect electrical connector of pressure sensor upstream of left throttle valve (B28/20).
- Release and disconnect electrical connector of left overrun mode bypass air switchover valve (Y101/1).
- Release and disconnect electrical connector of cylinder 5 intake CAMTRONIC actuator (Y49/15).
- Release and disconnect electrical connector of cylinder 5 exhaust CAMTRONIC actuator (Y49/16).
- Release and disconnect electrical connector of cylinder 8 intake CAMTRONIC actuator (Y49/17).
- Release and disconnect electrical connector of cylinder 8 exhaust CAMTRONIC actuator (Y49/18).
- Unclip Engine wiring harness at retaining clips (3) from cylinder head cover.
- Remove Engine wiring harness in the direction of the arrow.
- Place Engine wiring harness to one side.
- Connect in reverse order.
