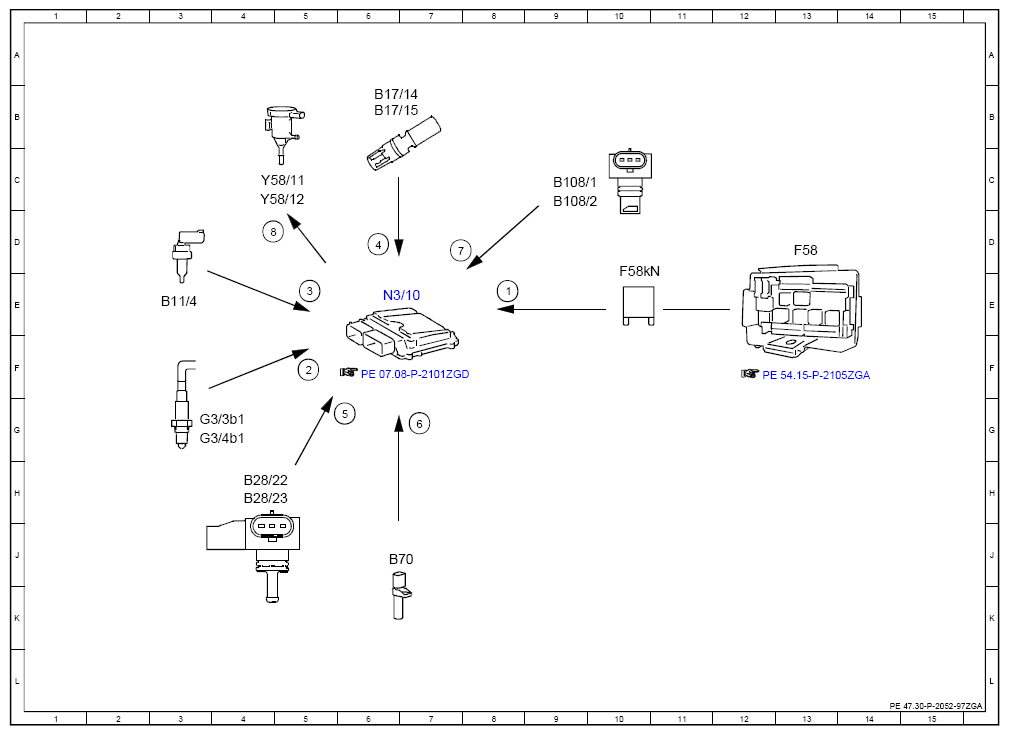

Electrical Function Diagram For Purging Function - PE47.30-P-2052-97ZGA
Engine 176.9 in model 463
as of model year 2016 up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 8E |
| 2 | Oxygen sensor sensor element, signal | 5F |
| 3 | Coolant temperature sensor, signal | 5E |
| 4 | Charge air temperature sensor, signal | 6D |
| 5 | Pressure sensor downstream of throttle valve, signal | 6G |
| 6 | Crankshaft Hall sensor, signal | 7G |
| 7 | Purging pressure sensor, signal | 8D |
| 8 | Purging switchover valve, actuation | 4D |
| B108/1 | Left purge pressure sensor | 9C |
| B108/2 | Right purge pressure sensor | 9C |
| B11/4 | Coolant temperature sensor | 3E |
| B17/14 | Left charge air temperature sensor | 6B |
| B17/15 | Right charge air temperature sensor | 6B |
| B28/22 | Left pressure sensor downstream of throttle valve | 4H |
| B28/23 | Right pressure sensor downstream of throttle valve | 4H |
| B70 | Crankshaft Hall sensor | 6J |
| F58 | Front passenger footwell fuse and relay module | 13D |
| F58kN | Circuit 87M relay | 10E |
| G3/3b1 | Left oxygen sensor element upstream of catalytic converter | 3G |
| G3/4b1 | Right oxygen sensor element upstream of catalytic converter | 3G |
| N3/10 | ME-SFI [ME] control unit | 6E |
| Y58/11 | Left purge control valve | 4C |
| Y58/12 | Right purge control valve | 4C |
