Detach/Attach Heat Shield On Exhaust Manifold - AR14.10-P-3006-01MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Engine 178 in model 190
EXHAUST MANIFOLD
| Number | Designation | Engine 176 | Engine 177 | |
|---|---|---|---|---|
| BA14.10-P-1003-02A | Bolt, heat shield to mounting plate/crankcase | Nm | 9 | 9 |
EXHAUST MANIFOLD
| Number | Designation | Engine 178.9 | |
|---|---|---|---|
| BA14.10-P-1003-02A | Bolt, heat shield to mounting plate/crankcase | Nm | 9 |

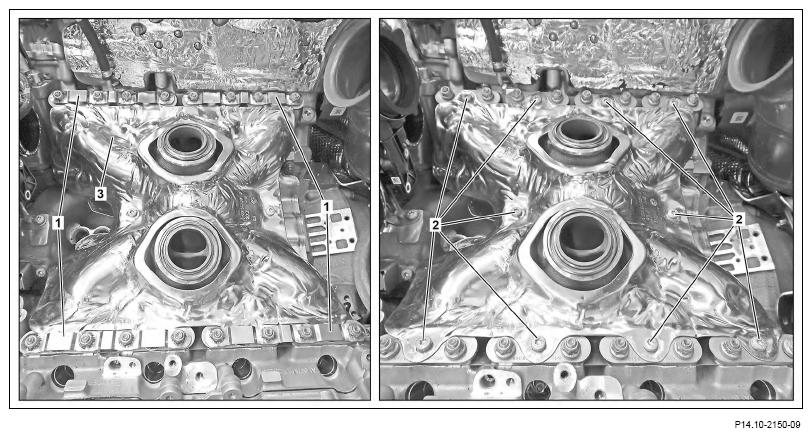

- Detach locking plates (1).
: Install new locking plates (1).
- Remove screw/bolts (2)
.
- Lift out heat shield (3) upwards.
