Camshaft Bearing Bridge Sealant Path - GF05.20-P-6992-02MNA

Engine 176, 177, 178

Engine 176, 177

IMPORTANT The sealing surface must be cleaned. Do not spread the sealant bead. Use only the sealant listed in the repair products.

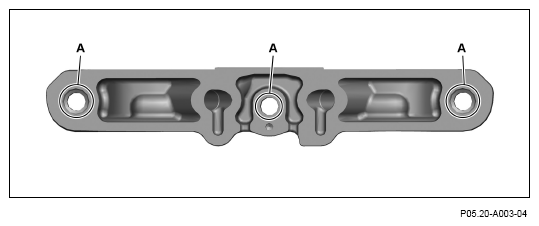

G13655533Courtesy of MERCEDES-BENZ USA

IMPORTANT Apply sealant only along the specified lines (A) in the form of a bead with a height and width of 1.5 mm (+0.5 mm). Process the sealant within a period of 7 minutes. Attach camshaft bearing bridge within 7 minutes of applying the sealant.
