Remove/Install Right Front Engine Support - AR22.10-P-4322XGC
Engine 177 in model 463
as of model year 2019
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Remove/install | |||
| 1 | Remove right charge-air distributor. | AR09.41-P-8685XGC | |
| 2 | Remove both front engine mounts. | AR22.10-P-4330XGC | |

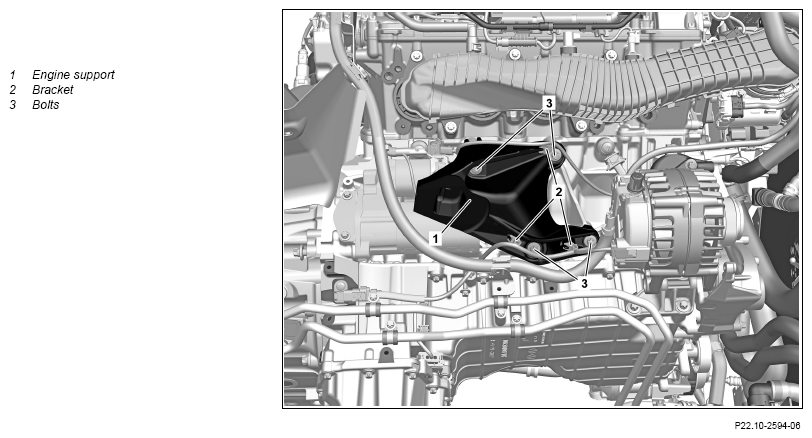

| 3 | Unclip brackets (2) of electric lines. | ||
| 4 | Remove screws (3) and remove engine carrier (1). | ||
| *BA22.10-P-1001-02C | |||
| 5 | Install in the reverse order. |
ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Engine 177 | ||
|---|---|---|---|---|
| BA22.10-P-1001-02C | Bolt, engine support to crankcase | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 90 | ||
