Remove/Install Rear Engine Support - AR22.10-P-4360MNF
Engine 176 in model 463
up to model year 2019
Engine 279 in model 463
| Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | ||
| Remove/install | |||

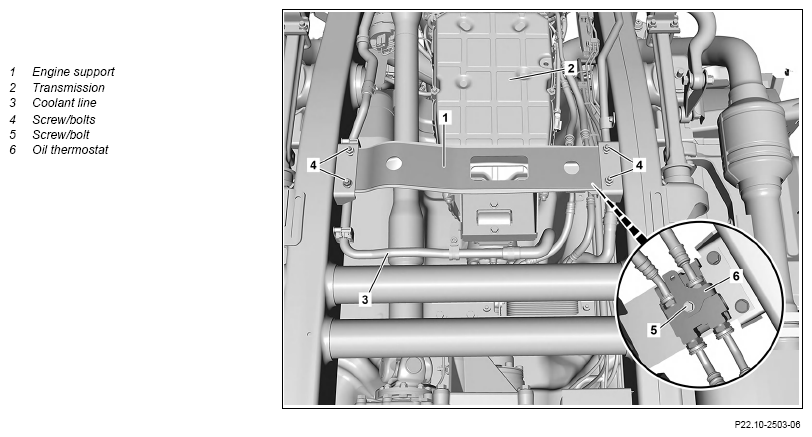

| 1 | Support transmission (2) | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 2 | Detach engine mount at rear engine support (1) | Engine 176 in model 463 up to model year 2019 Engine 279 in model 463 |
AR22.10-P-1160GW |
| 3 | Detach coolant line (3) at rear engine support (1) | ||
| 4 | Remove screw/bolt (5) and place the oil thermostat (6) to one side | ||
| 5 | Remove screw/bolts (4) and remove rear engine support (1) downwards | Never use an impact wrench/driver or compressed air tools for unscrewing or screwing in the screw/bolts (4). Otherwise the threads can get damaged. |
|
up to model year 2019Nut/bolt, rear engine mount carrier to frame |
*BA22.10-P-1005-01X | ||
| 6 | Install in the reverse order |
ENGINE MOUNTS, ENGINE SUPPORTS
| Number | Designation | Engine 176 in model 463 up to model year 2019 Engine 279 in model 463 | ||
|---|---|---|---|---|
| BA22.10-P-1005-01X | Nut/bolt, rear engine mount carrier to frame | M8 | Nm | 30 |
