Remove/Install Filler Neck For Engine Oil - AR01.40-P-0004XGC
Engine 177 in model 463
as of model year 2019

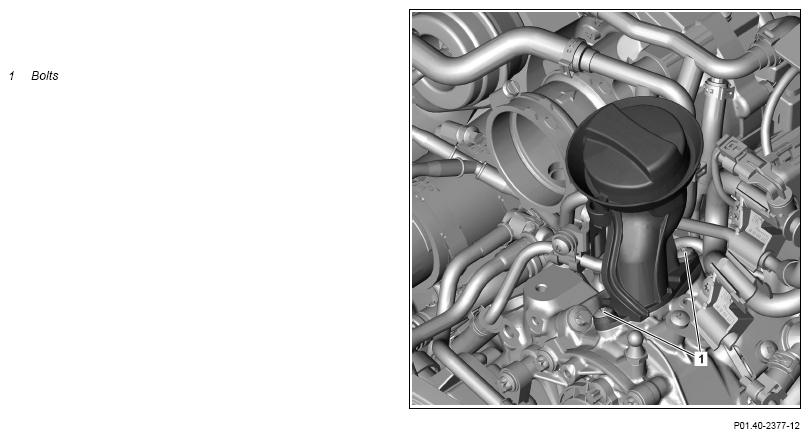

Fig 1: Filler Neck For Engine Oil Components Location - Engine 177 In Model 463 As Of Model Year 2019
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. | AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove upper engine cover. | AR01.10-P-2405XGC | |
| 2 | Remove screws (1) and remove filler neck. | ||
| *BA01.20-P-1006-01J | |||
| 3 | Modify molded seal and cap of filler neck | When replacing filler neck. | |
| 4 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 5 | Perform engine test run and check engine for leak tightness. | ||
| 6 | Install upper engine cover. | AR01.10-P-2405XGC |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 177 | ||
|---|---|---|---|---|
| BA01.20-P-1006-01J | Bolt, filler neck to cylinder head cover | Nm | 9 | |
