Remove/Install Filler Neck For Engine Oil - AR01.40-P-0004XGA
Engine 176 in model 463
as of model year 2019

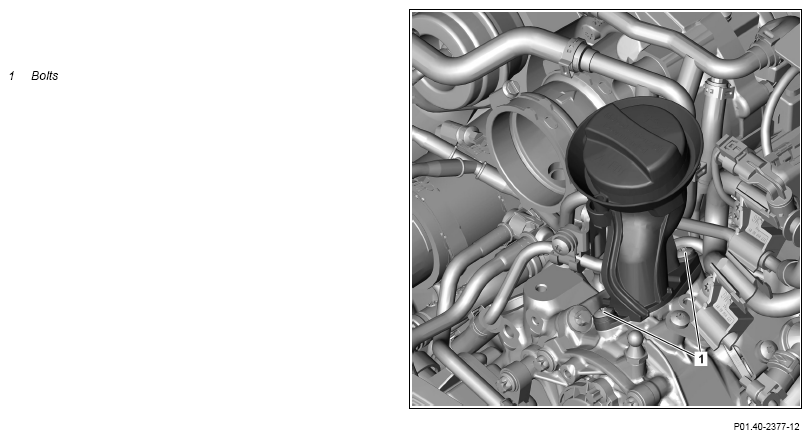

Fig 1: Filler Neck For Engine Oil Components Location - Engine 176 In Model 463 As Of Model Year 2019
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove left-hand air filter housing | AR09.10-P-1151XGA | |
| 2 | Remove bolts (1) and take out filler fitting | ||
| *BA01.20-P-1006-01J | |||
| 3 | Modify molded seal and cap of filler neck | When replacing filler neck. | |
| 4 | Install in the reverse order | ||
| Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 5 | Perform an engine test run and check engine for leaktightness | ||
| 6 | Install upper engine cover | AR01.10-P-2405XGA |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA01.20-P-1006-01J | Bolt, filler neck to cylinder head cover | Nm | 9 |
