Pry Off Oil Pan - AR01.45-P-7500-04MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

Engine 178 in model 190

Do not drive in any tools between crankcase and oil pan (1) to loosen the oil pan (1).

The sealing surfaces will be damaged otherwise!

Prying off takes place using a screw/bolt M6x60 mm or longer. For prying off the oil pan (1) the screw/bolts are screwed into the thread (2) and in this way the oil pan (1) is pried off from the sealing surface on crankcase. If necessary, heat oil pan (1) in area around the sealing surfaces using a heat gun.

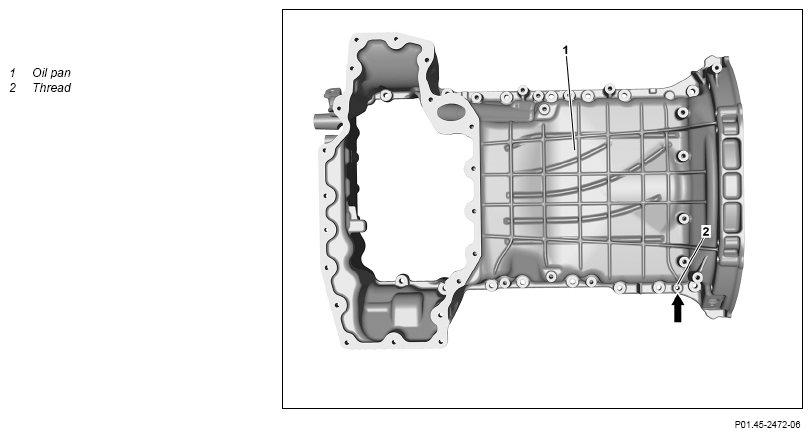

Shown on engine 178 in model 190

Courtesy of MERCEDES-BENZ USA

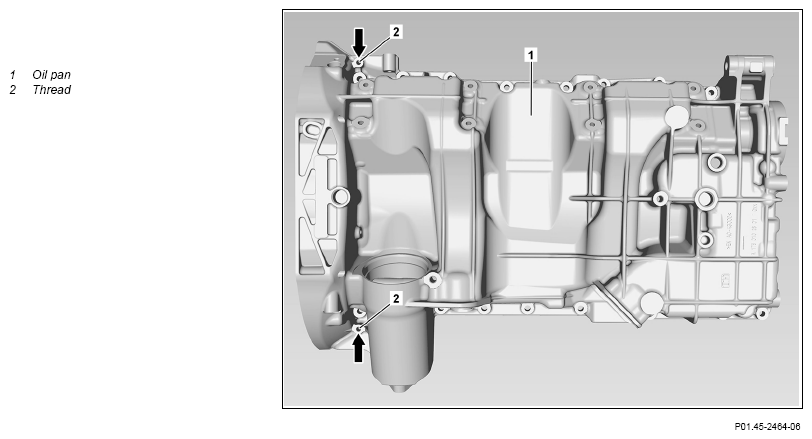

Shown on engine 177 in model 205

Courtesy of MERCEDES-BENZ USA

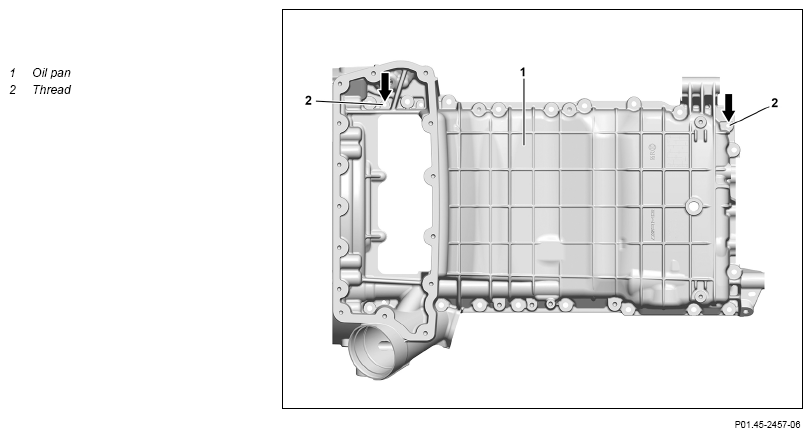

Shown on engine 176 in model 463

Courtesy of MERCEDES-BENZ USA
