Disconnect Engine Wiring Harness For Removal Of Engine - AR01.00-P-2410-03MNF

Engine 176 in model 463 up to model year 2019

Engine 642.887 in model 463

FUSE AND RELAY MODULE

Number Designation Model 463 up to model year 2019 Model 463 as of model year 2019
BA54.15-P-1001-02A Nut, electrical line to battery compartment prefuse box M6 Nm 8 8
M8 Nm 16 16

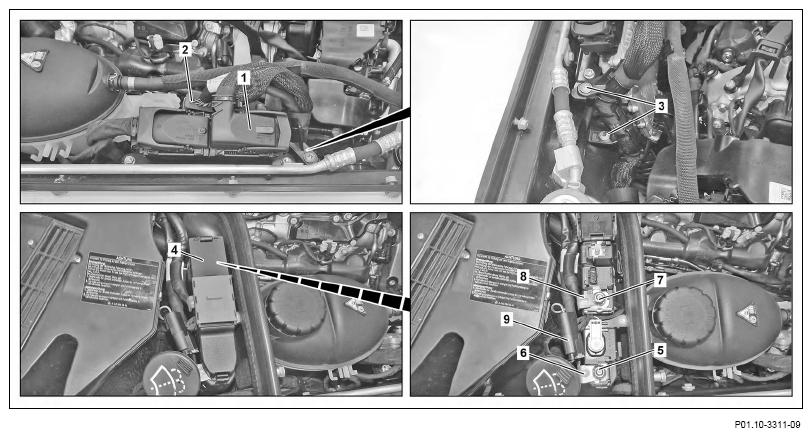

G13655174Courtesy of MERCEDES-BENZ USA

Shown on ENGINE 176

  1. Disconnect electrical connection (1).
  2. Disconnect electrical connection (2).
  3. Remove screw/bolts (3).
  4. Open prefuse box (4).
  5. Unscrew nut (5) and remove electrical line (6) at prefuse box TORQUE SPECIFICATION .
  6. Unscrew nut (7) and remove electrical line (8) at prefuse box TORQUE SPECIFICATION .
  7. Disconnect electrical connection (9).
  8. Unclip electrical lines (6, 8) at bulkhead and place to one side.

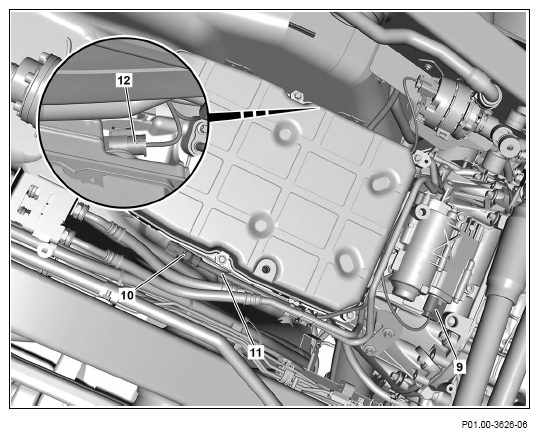

  9. Disconnect electrical connection (9).
  10. Disconnect electrical connection (10).
  11. Unclip wiring harness (11) at transmission oil pan.
  12. Disconnect electrical connection (12).
  13. Unclip electrical wiring harness (11) on transmission.
    G13655175Courtesy of MERCEDES-BENZ USA
