Bolt Tightening Procedure For Cylinder Head Cover - AR01.20-P-5014-03MNA
Engine 176, 177, 178
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 176 | Engine 177 | ||
|---|---|---|---|---|---|
| BA01.20-P-1004-01J | Bolt, cylinder head cover to cylinder head/camshaft housing | Stage 1 | Nm | 10 | 10 |
| Stage 2 | ∠° | 90 | 90 | ||
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 178 | ||
|---|---|---|---|---|
| BA01.20-P-1004-01J | Bolt, cylinder head cover to cylinder head/camshaft housing | Stage 1 | Nm | 10 |
| Stage 2 | ∠° | 90 | ||

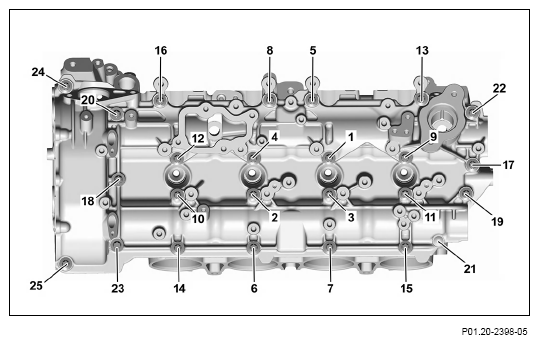

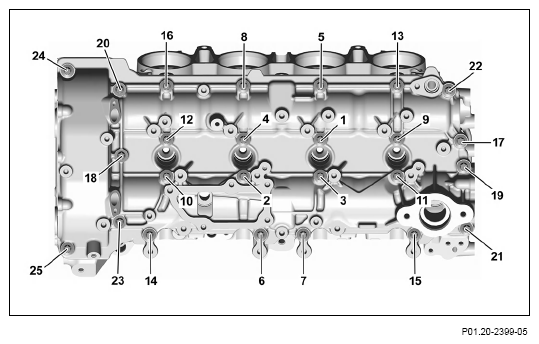

Tighten cylinder head cover bolts in the numerical sequence. Replace screw/bolts for cylinder head cover.
Left cylinder head cover
