Attach/Detach Engine Support Fixture - AR01.10-P-2400-18XGA

Engine 176, 177 in model 463 as of model year 2019

Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.

No parts of the body or limbs should be within the operating area of mechanical components when moving components.

AS00.00-Z-0009-01A

Fig 1: Identifying Adaptation Of Engine Lifting Device (642 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Mount (240 589 00 61 10)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adaptation Plates (240 589 00 32 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Lifting Eye (177 589 00 62 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Adapter Kit (240 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Engine Hoist (205 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Engine Lifting Device (240 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

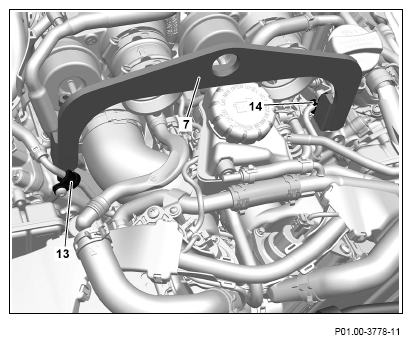

1. Remove screws from brackets (13, 14) .
2. Push brackets (13, 14) out of the assembly area of the front lifting eye (7).
3. Attach front lifting eye (7).

   Shown on model 463 as of model year 2019 with engine 176

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

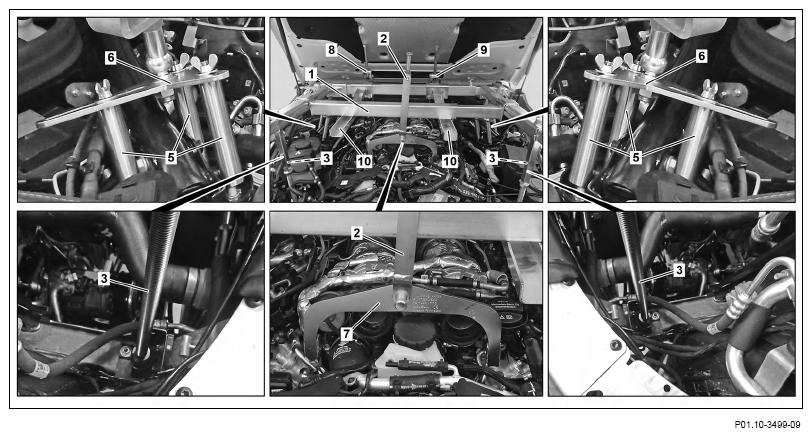

   Shown on model 463 as of model year 2019 with engine 176

4. Attach adaptation plates (6) to engine hoist (1).
5. Attach adapter (5) to adaptation plates (6).
6. Attach Engine hoist adaptations (10) to the engine hoist (1).

   Observe the manufacturer's assembly specifications and safety information.

7. Attach engine hoist (3) to the engine hoist (1).
8. Preset engine hoist (1).
9. Mount engine hoist (1) on the suspension strut towers and longitudinal members.

   Aid of helper required.

10. Adjust engine hoist (1), align horizontally and tighten threaded connections.
11. Attach mount (2) to front lifting eye (7).
12. Attach mount (8) with shackle to the rear right engine lifting lugs.
13. Attach mount (9) with shackle to the rear left engine lifting lugs.
14. Tighten tensioning screw of the mounts (2, 8, 9).

    Do not subject engine mounts to tension.

    The engine mount can get damaged otherwise.

15. Remove in the reverse order.
