Engine 112 (except 112.912/946)
Engine 113.941/942/960/962/965/981/982/993
Engine 137.970, 275, 277, 279
Engine 176 in model 463
as of model year 2019
Engine 176 in model 463
up to model year 2019
Engine 177 in model 463
Engine 628.960/961/962/963
- Clean sealing surfaces
- The sealant must be used within 7 minutes.
- The silicone bead should not be spread.
- Only the silicone sealant listed in the repair materials may be used.
 Courtesy of MERCEDES-BENZ USA
|

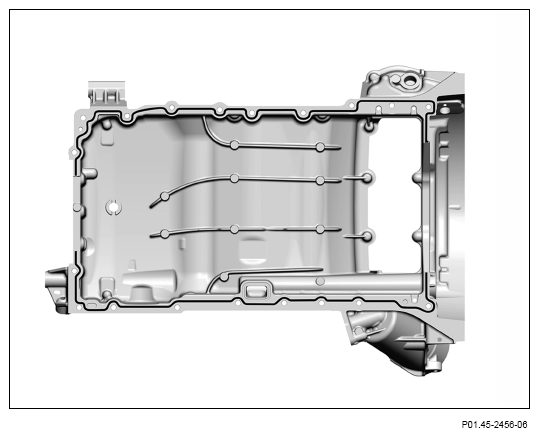

Engine 112 oil pan top section
The traced line F
marks the sealant application.

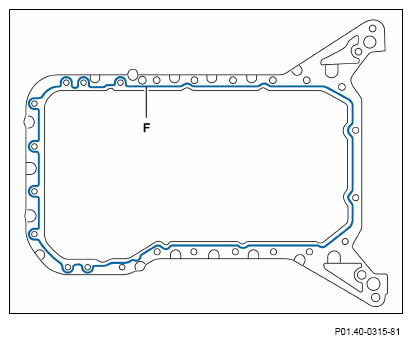

Engine 112/113 oil pan bottom section
The traced line F
denotes the sealant application.
The sealant may only be applied to the specified surfaces with a bead of 2.0 mm (± 0.5 mm).
The sealant may only be applied to the specified surfaces with a bead of 2.0 mm (± 0.5 mm).
 Courtesy of MERCEDES-BENZ USA
|

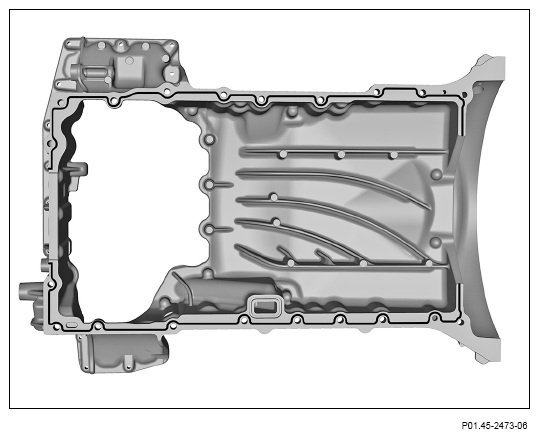

Engine 113 oil pan top section
The traced line (F) denotes the sealant path.
The sealant may only be applied to the specified surfaces in the form of a sealant bead with 2.0 mm (± 0.5 mm) diameter.
 Courtesy of MERCEDES-BENZ USA
|

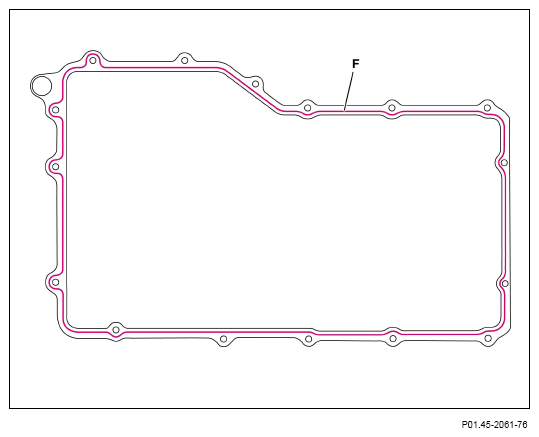

Engine 137
The line (F) denotes the sealant path.
The sealant must be applied only to the specified surfaces with a bead of 2.0 mm (± 0.5 mm).
 Courtesy of MERCEDES-BENZ USA
|
Engine 176 in model 463 up to model year 2019
The sealant may only be applied to the specified surfaces in the form of a bead with a height and width of 2.0 mm (± 1.5 mm).
 Courtesy of MERCEDES-BENZ USA
|
Engine 176 in model 463 as of model year 2019, engine 177
The sealant must only be applied to the specified surfaces in the form of a bead with a height and width of 2.0 mm (+0.5 mm).
 Courtesy of MERCEDES-BENZ USA
|
Engine 628 oil pan top section
The traced line F
denotes the sealant application.
The sealant may only be applied to the specified surfaces with a bead of 1.5 mm (+1.0 mm).
 Courtesy of MERCEDES-BENZ USA
|
Engine 628 oil pan bottom section
The traced line F
denotes the sealant application.
The sealant may only be applied to the specified surfaces with a bead of 1.5 mm (+1.0 mm).
 Courtesy of MERCEDES-BENZ USA
|
