Remove/Install Right Water-Cooled Charge Air Cooler - AR09.41-P-6828XGA
Engine 176 in model 463
as of model year 2019
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove left charge air cooler (18). | AR09.41-P-6827XGA | |
| 2 | Release and disconnect electrical connector ol right throttle valve actuator (M16/61). | ||
| 3 | Remove right charge air cooler (20) in upward direction. | ||
| 4 | Check elastomer bearings of right charge air cooler (20) for damage. | If problems exist, ↓ Replace appropriate elastomer bearing. |
|
| 5 | Remove right throttle valve actuator (M16/61). | When replacing right charge air cooler (20). | AR07.51-P-1403XGA |
| 6 | Remove hose (6). | When replacing right charge air cooler (20). |

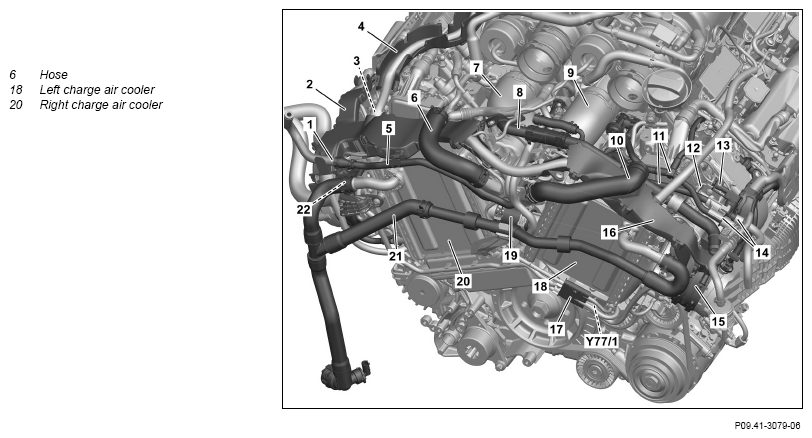

Fig 1 |
| 7 | Install in the reverse order. |
