Remove/Install Divert Air Switchover Valve - AR09.40-P-3000MNF
Engine 176 in model 463
up to model year 2019
MODIFICATION NOTES
| 26.04.2016 | Screw diverter valve diverting air to charge air cooler | Motor 176 | BA09.41-P-1012-01X |

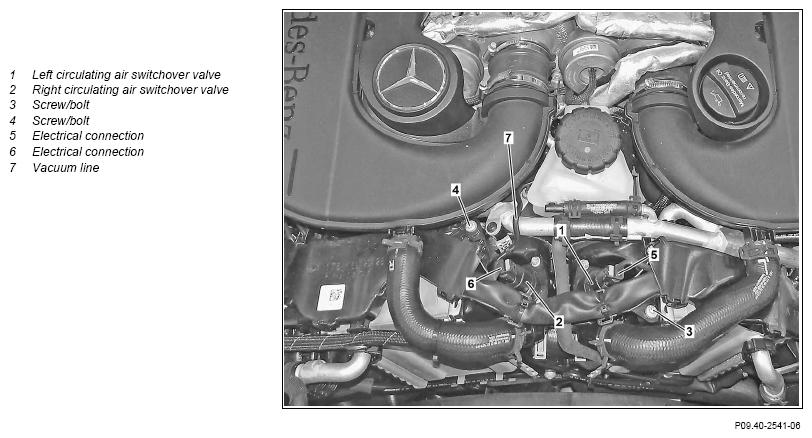

Fig 1: Divert Air Switchover Valve Components Location - Engine 176 In Model 463 Up To Model Year 2019
| Remove/install | |||
| 1 | Remove screw/bolt (3) from engine wiring harness | When removing the left circulating air switchover valve (1). | |
| 2 | Remove screw/bolt (4) from engine wiring harness | When removing the right circulating air switchover valve (2). | |
| 3 | Disconnect electrical connection (5) | For removal of the left circulating air switchover valve (1). | |
| 4 | Disconnect electrical connection (6) | When removing the right circulating air switchover valve (2). | |
| 5 | Unclip vacuum line (7) on right charge air cooler | When removing the right circulating air switchover valve (2). | |
| 6 | Remove screw/bolts of left circulating air switchover valve (1) | When removing the left circulating air switchover valve (1). | |
| *BA09.41-P-1012-01X | |||
| 7 | Remove screw/bolts of right circulating air switchover valve (2) | When removing the right circulating air switchover valve (2). | |
| *BA09.41-P-1012-01X | |||
| 8 | Remove left circulating air switchover valve (1) upwards | When removing the left circulating air switchover valve (1). |
|
| 9 | Remove right circulating air switchover valve (2) upwards | When removing the right circulating air switchover valve (2). |
|
| 10 | Install in the reverse order | ||
| 11 | Install in the reverse order | ||
| 12 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04A | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1012-01X | Screw/bolt, bypass air switchover valve to charge air cooler | Nm | 8 |
