Remove/Install Boost Pressure Sensor Upstream Of Throttle Valve - AR09.41-P-0003MNF
Engine 176 in model 463
up to model year 2019

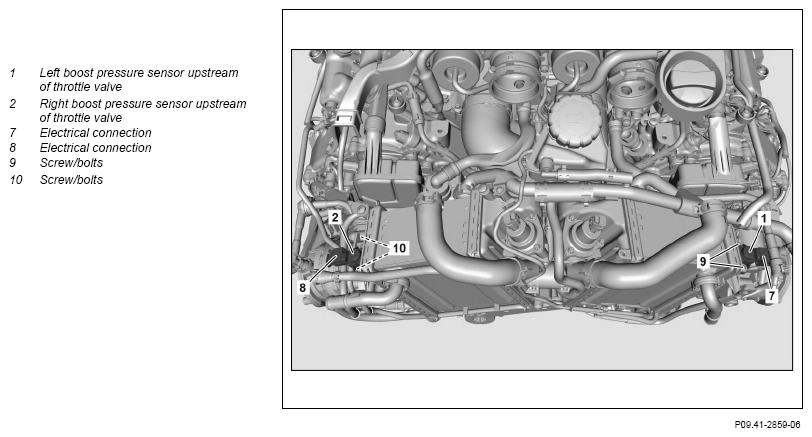

Fig 1: Boost Pressure Sensor Upstream Of Throttle Valve Components Location - Engine 176 In Model 463 Up To Model Year 2019
| Remove/install | |||
| 1 | Remove left-hand air filter housing | When removing left-hand boost pressure sensor upstream of throttle valve (1). | AR09.10-P-1150MNA |
| 2 | Remove right air filter housing | When removing right boost pressure sensor upstream of throttle valve (2). | AR09.10-P-1150MNA |
| 3 | Remove left engine air intake duct upstream of air filter | When removing left boost pressure sensor upstream of throttle valve (1). | |
| 4 | Remove right engine air intake duct upstream of left air filter | When removing right boost pressure sensor upstream of throttle valve (2). | |

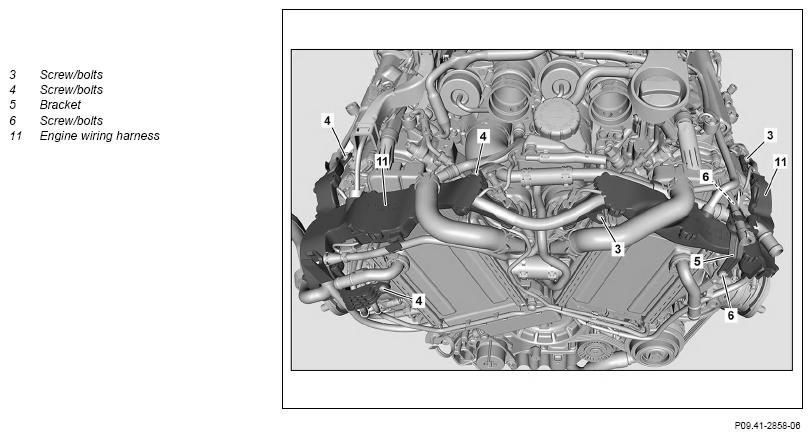

| 5 | Remove screw/bolts (3) of engine wiring harness (11) | When removing left boost pressure sensor upstream of throttle valve (1). | |
| 6 | Remove screw/bolts (4) of engine wiring harness (11) | When removing right boost pressure sensor upstream of throttle valve (2). | |
| 7 | Secure lines to bracket (5) | When removing left boost pressure sensor upstream of throttle valve (1). | |
| 8 | Unscrew screw/bolts (6) and remove bracket (5) | When removing left boost pressure sensor upstream of throttle valve (1). | |
| 9 | Disconnect electrical connection (7) | When removing left boost pressure sensor upstream of throttle valve (1). | |
| 10 | Disconnect electrical connection (8) | When removing right boost pressure sensor upstream of throttle valve (2). | |
| 11 | Remove screw/bolts (9) and take out left boost pressure sensor upstream of throttle valve (1) upwards | When removing left boost pressure sensor upstream of throttle valve (1). |
*BA09.41-P-1005-01X |
| 12 | Remove screw/bolts (10) and take out right boost pressure sensor upstream of throttle valve (2) upwards | When removing right boost pressure sensor upstream of throttle valve (2). |
*BA09.41-P-1005-01X |
| 13 | Install in the reverse order | ||
| 14 |
Connect diagnostic system and read out fault memory | AD00.00-P-2000-04A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Perform an engine test run and check engine for proper operation and leaktightness |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1005-01X | Bolt, boost pressure sensor upstream/downstream of throttle valve | Nm | 6 |
