Check Low-Temperature Circuit For Leaktightness - AR09.41-P-1011MNF
Engine 176 in model 463
up to model year 2019
Engine 642 in model 463
Shown on engine 176
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove | |||
| 1 | Unscrew cap on expansion reservoir (1) | ||
| Check | |||
| 2 | Check coolant level and antifreeze content of coolant in low-temperature circuit and correct f necessary | BF20.00-P-1001-02W | |
up to model year 2019 Cooling system |
*BF20.00-P-1001-06A | ||

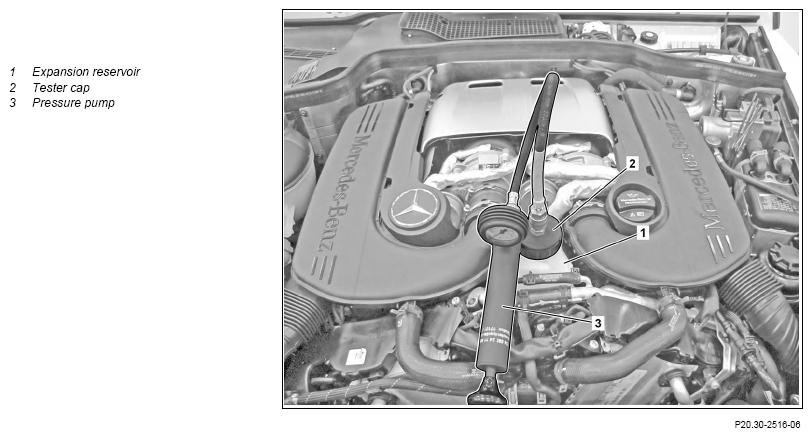

| 3 | Screw tester cap (2) on expansion reservoir (1) | Fig 1 | |
| 4 | Connect pressure pump (3) at tester cap (2) | Fig 2 | |
| 5 | Apply compressed air to low-temperature circuit for 2 minutes at the test pressure | Do not exceed the specified test pressure. Damage can occur otherwise on the low-temperature circuit. Engine 642 in model 463 |
BE20.30-P-1005-01A |
| 1-stage cover latch Test pressure for pressure-testing the engine cooling system Engine 176 in model 463 | BE20.30-P-1001-01D | ||
| up to model year 2019 Test pressure for pressure-testing the low-temperature circuit In the event of pressure loss | |||
| Perform a visual inspection on the assembly parts carrying coolant | |||
| Install | |||
| 6 | Actuate pressure relief button on pressure pump (3) and relieve the pressure | Fig 2 | |
| 7 | Unscrew tester cap (2) at the expansion reservoir (1) | Fig 1 | |
| Check | |||
| 8 | Check coolant level and antifreeze content of coolant and correct if necessary | BF20.00-P-1001-02W | |
up to model year 2019 Cooling system |
*BF20.00-P-1001-06A | ||
| 9 | Screw cap onto expansion reservoir (1) |
COOLING SYSTEM CHECK VALUES
| Number | Designation | Engine 176 | ||
|---|---|---|---|---|
| BE20.30-P-1001-01D | Test pressure for pressure-testing the low-temperature circuit | Overpressure | bar | 1, 4 |
RADIATOR OR EXPANSION RESERVOIR CAP
| Number | Designation | 1-stage cover latch | ||
|---|---|---|---|---|
| BE20.30-P-1005-01A | Test pressure for pressure-testing the engine cooling system | Overpressure | bar | 1, 4 |
COOLING SYSTEM
| Number | Designation | Engine 642 in model 463.348 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02W | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈ 8, 6 |
| Low-temperature circuit | Liter | ≈1, 2 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Sheet | BB00.40-P-0310-01A | ||||
| Sheet | BB00.40-P-0325-06A | ||||
| Sheet | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 176 in model 463 up to model year 2019 | Engine 176 in model 463 as of model year 2019 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-06A | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈ 6, 4 | ≈ 13 |
| Low-temperature circuit | Liter | ≈ 1, 5 | ≈ 4, 6 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
