Remove/Install Fan Unit - AR20.40-P-5050MNF
Engine 176 in model 463
up to model year 2019
Engine 642.887 in model 463
| Remove/install | |||
| 1 | Remove left and right headlamp trim | Engine 176 in model 463 as of model year 2013 up to model year 2019 Engine 642.887 in model 463 as of model year 2013 up to model year 2019 |
AR82.10-P-4730GW |

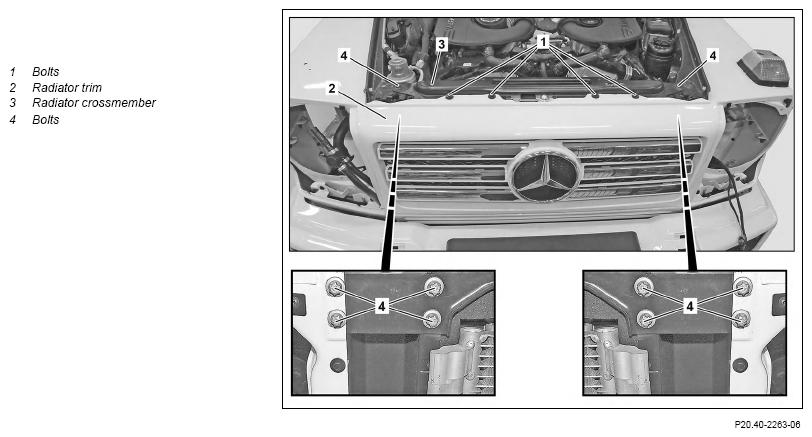

| 2 | Remove bolt (1) | ||
| 3 | Unclip hose of the washer system at radiator trim (2) and remove radiator trim (2) | ||
| 4 | Unclip cable for hood opening on radiator crossmember (3) | ||
| 5 | Remove screw/bolts (4) at radiator crossmember (3) | *BA62.30-P-1001-01J | |
| 6 | Pry off radiator crossmember (3) and unclip coolant hose on radiator crossmember (3) | ||
| 7 | Remove radiator crossmember (3) | ||

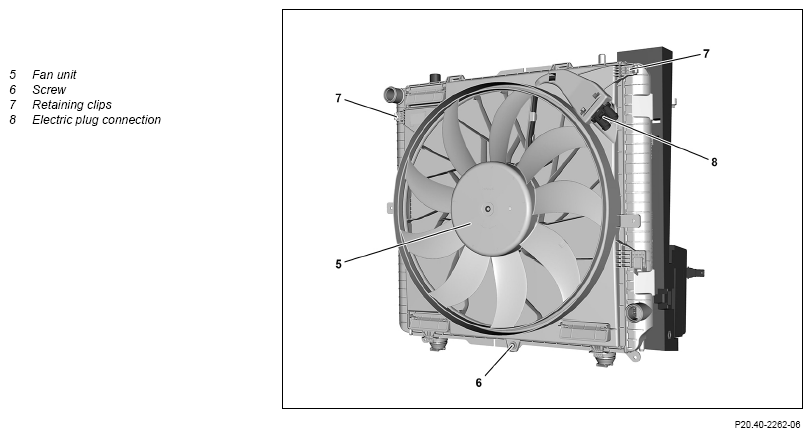

| 8 | Unclip coolant hose from fan unit (5) | ||
| 9 | Remove screw/bolt (6) | Press foam rubber into the area of the screw/bolt somewhat to the side. |
|
| 10 | Disconnect electrical connection at electrical plug connection (8) | ||
| 11 | Detach retaining clamps (7) of fan unit (5) | ||
| 12 | Remove fan unit (5) upwards | ||
| 13 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 14 | Perform an engine test run and check engine cooling system for proper operation |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 463 up to model year 2019 | Model 463 as of model year 2019 | ||
|---|---|---|---|---|---|
| BA62.30-P-1001-01J | Screw/bolt, front crossmember (top) to wheel well | M8 | Nm | 18 | - |
