Remove/Install Coolant Circuit Feed Line Of Turbochargers - AR20.20-P-1100XGC
Engine 177 in model 463 as of model year 2019

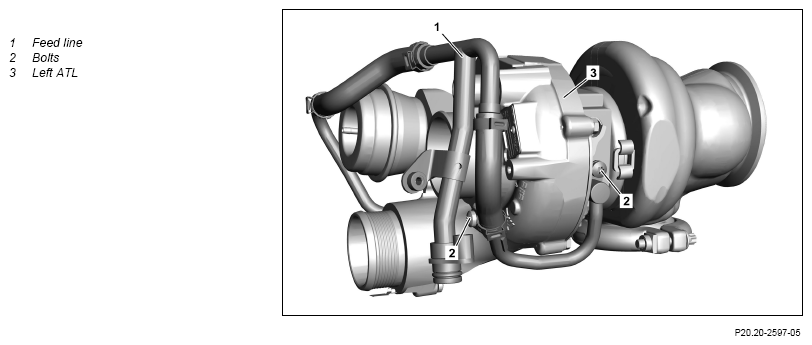

Fig 1: Coolant Circuit Feed Line Of Turbochargers Components Location - Engine 177 In Model 463 As Of Model Year 2019
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury
to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil |
Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove left exhaust gas turbocharger (3) with connected feed line (1). | AR09.40-P-6026XGC | |
| 2 | Clean area surrounding the feed line (1). | Assembly cleaner | *BR00.45-Z-1028-04A |
| 3 | Remove screws (2). | *BA09.40-P-1004-01ZA | |
| 4 | Remove feed line (1) from left exhaust gas turbocharger (3) and seal openings with suitable stop plugs. | ||
| Fig 2 | |||
| 5 | Install in the reverse order. |
TURBOCHARGER
| Number | Designation | Engine 177 |
|---|---|---|
| BA09.40-P-1004-01ZA | Bolt, coolant line to turbocharger/cylinder head Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
