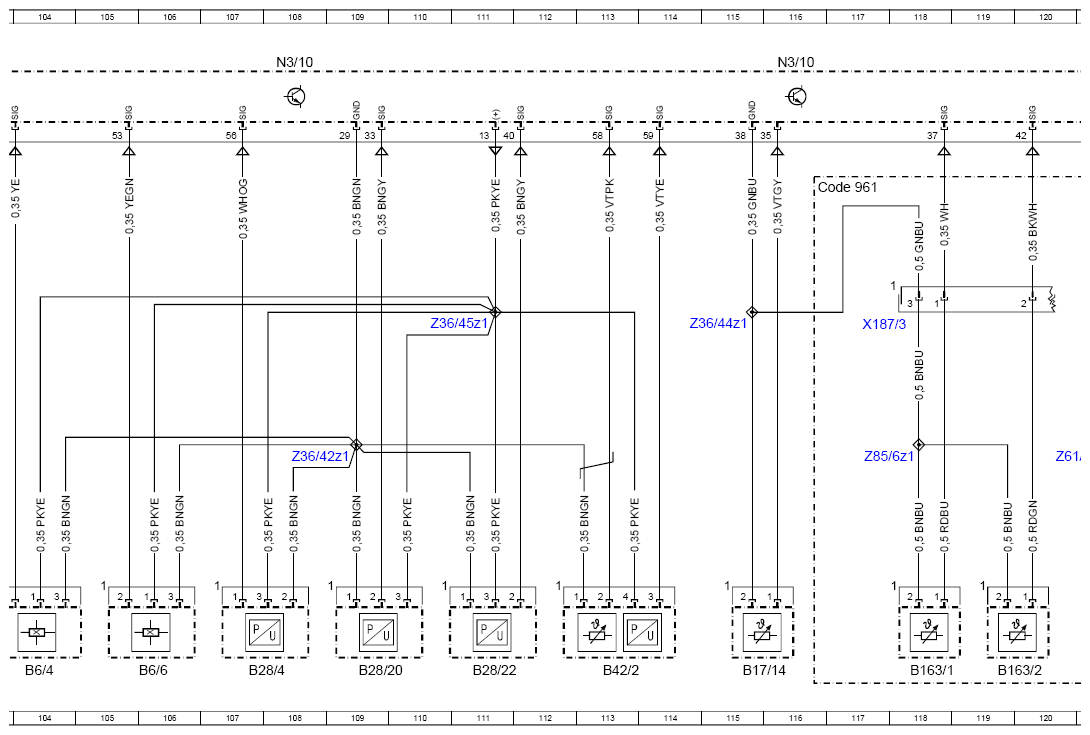

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97ZHB
Engine 176.9 in model 463 (except 463.342) as of model year 2019 Control unit N3/10, engine connector
| Code: | Designation: | Position: |
|---|---|---|

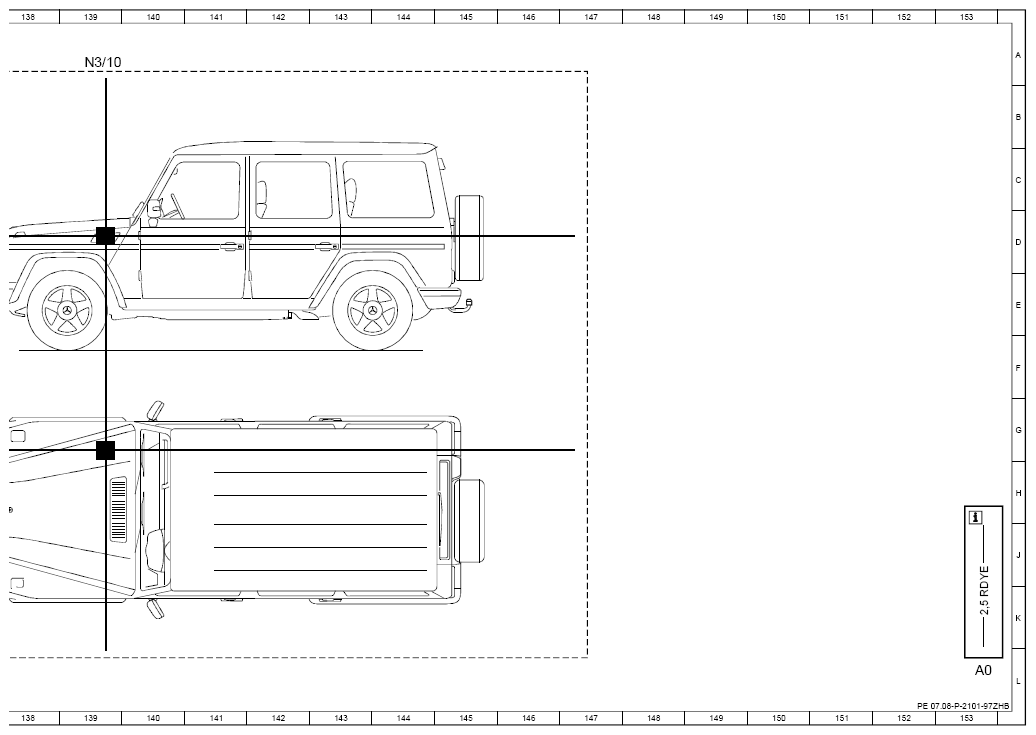

| A0 | Use of wiring diagrams | 153L |

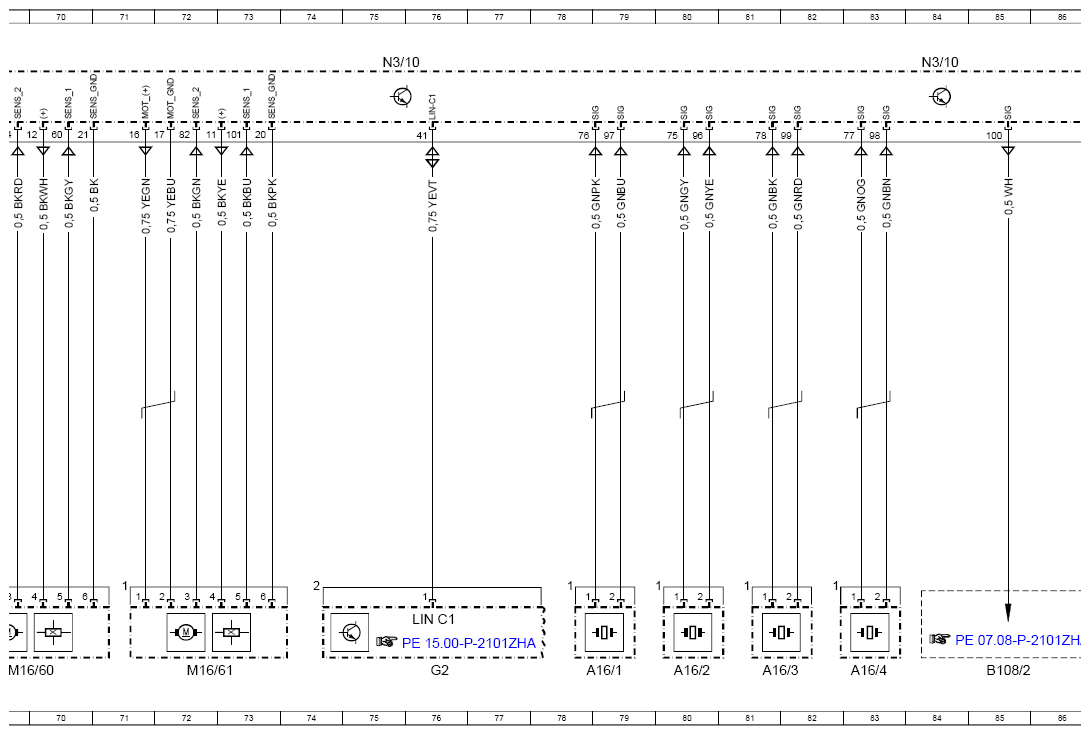

| A16/1 | Knock sensor 1 | 79L |
| A16/2 | Knock sensor 2 | 80L |
| A16/3 | Knock sensor 3 | 81L |
| A16/4 | Knock sensor 4 | 83L |
| B108/1 | Left purge pressure sensor | 102L |
| B108/2 | Right purge pressure sensor | 85L |
| B11/4 | Coolant temperature sensor | 27L |
| B163/1 | Temperature sensor upstream of left gasoline particulate filter | 118L |
| B163/2 | Temperature sensor upstream of right gasoline particulate filter | 119L |

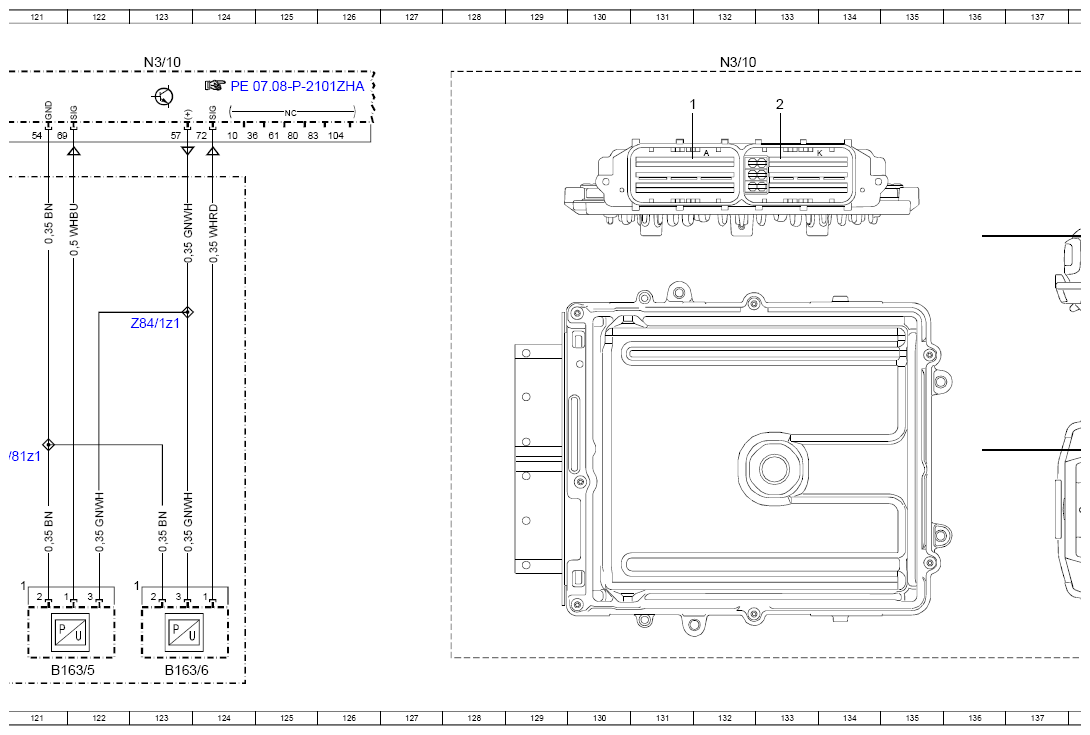

| B163/5 | Left gasoline particulate filter differential pressure sensor | 121L |
| B163/6 | Right gasoline particulate filter differential pressure sensor | 123L |
| B17/14 | Left charge air temperature sensor | 115L |
| B17/15 | Right charge air temperature sensor | 24L |
| B28/20 | Left pressure sensor upstream of throttle valve | 109L |
| B28/21 | Right pressure sensor upstream of throttle valve | 93L |
| B28/22 | Left pressure sensor downstream of throttle valve | 111L |
| B28/23 | Right pressure sensor downstream of throttle valve | 95L |
| B28/4 | Pressure sensor downstream air filter, left cylinder bank | 107L |
| B28/5 | Pressure sensor downstream of air filter, right cylinder bank | 91L |
| B42/1 | Right fuel pressure and temperature sensor | 99L |
| B42/2 | Left fuel pressure and temperature sensor | 113L |
| B6/4 | Left intake camshaft Hall sensor | 104L |

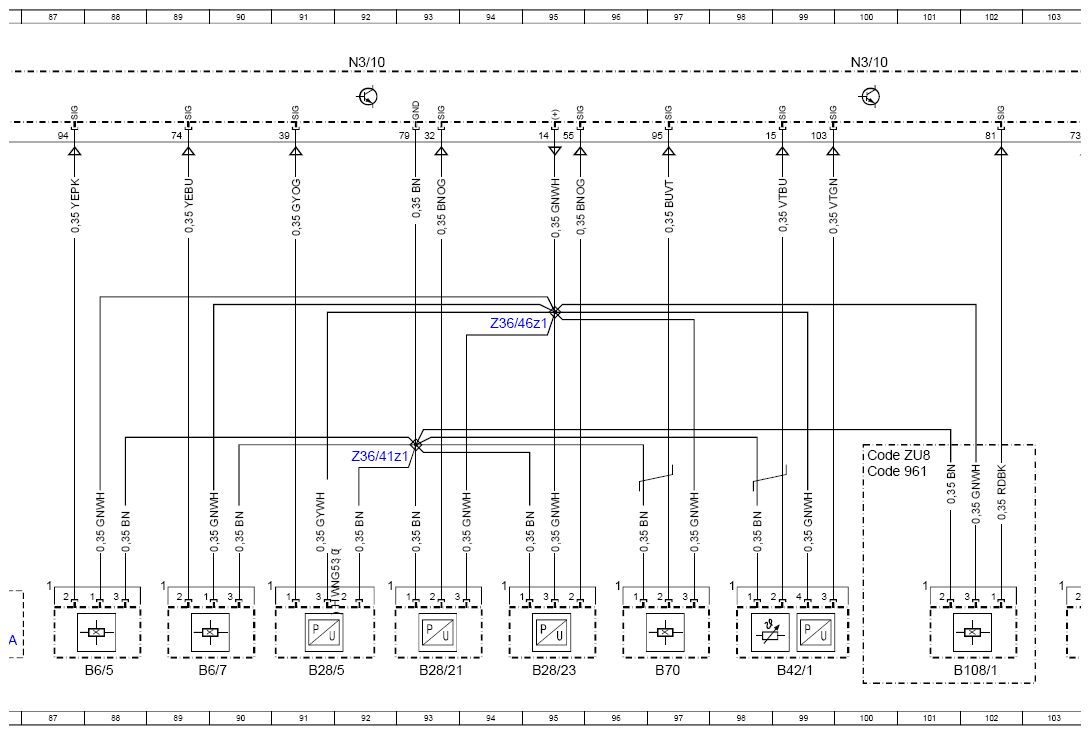

| B6/5 | Right intake camshaft Hall sensor | 88L |
| B6/6 | Left exhaust camshaft Hall sensor | 106L |
| B6/7 | Right exhaust camshaft Hall sensor | 89L |
| B70 | Crankshaft Hall sensor | 97L |
| Code 961 | Exhaust system with OPF, Generation 2.0 | 100H |
| Code 961 | Exhaust system with OPF, Generation 2.0 | 116C |
| Code ZU8 | USA national version | 100G |
| G2 | Alternator | 76L |
| K40/8 | Engine fuse and relay module | 31L |
| K40/8 | Engine fuse and relay module | 33L |
| K40/8 | Engine fuse and relay module | 51L |
| K40/8f104 | Fuse 104 | 50L |
| LIN C1 | Drivetrain LIN | 76K |
| M16/60 | Left throttle valve actuator | 69L |
| M16/61 | Right throttle valve actuator | 72L |
| N3/10 | ME-SFI [ME] control unit | 30L |
| N3/10 | ME-SFI [ME] control unit | 66L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 75A |
| N3/10 | ME-SFI [ME] control unit | 84A |
| N3/10 | ME-SFI [ME] control unit | 92A |
| N3/10 | ME-SFI [ME] control unit | 100A |
| N3/10 | ME-SFI [ME] control unit | 108A |
| N3/10 | ME-SFI [ME] control unit | 116A |
| N3/10 | ME-SFI [ME] control unit | 123A |
| N3/10 | ME-SFI [ME] control unit | 132A |
| N3/10 | ME-SFI [ME] control unit | 139A |
| R4 | Spark plugs | 40L |
| R4 | Spark plugs | 39L |
| R4 | Spark plugs | 42L |
| R4 | Spark plugs | 44L |
| R4 | Spark plugs | 63L |
| R4 | Spark plugs | 61L |
| R4 | Spark plugs | 57L |
| R4 | Spark plugs | 59L |
| R48 | Coolant thermostat heating element | 25L |

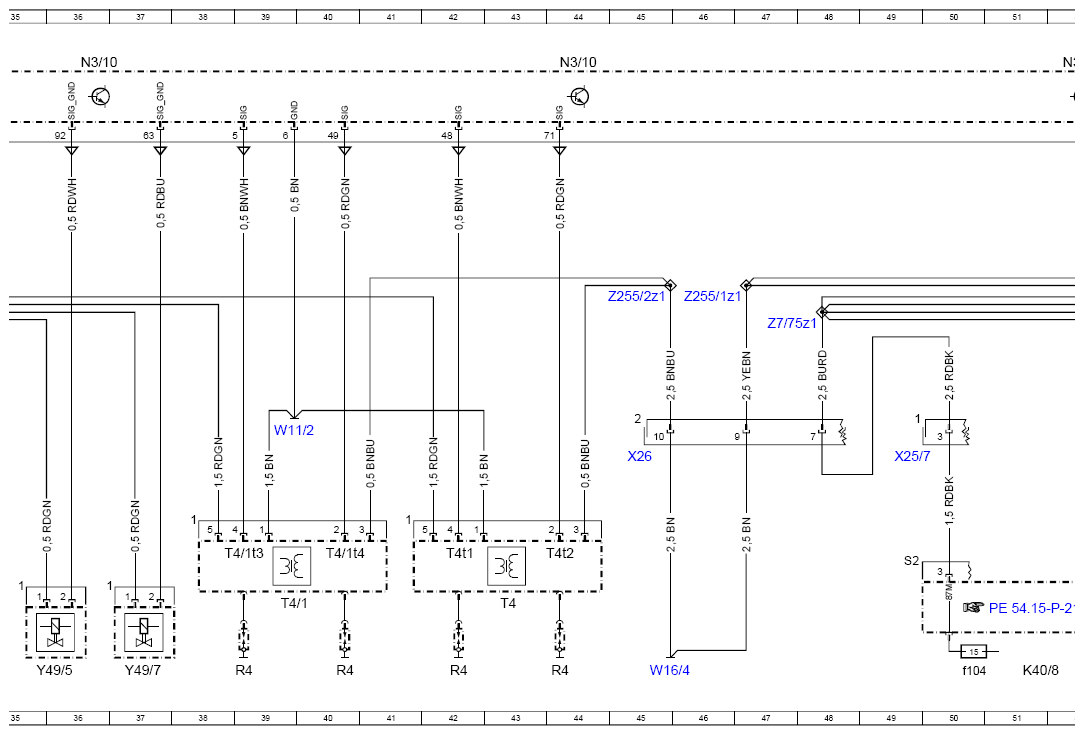

| T4 | Cylinder 1 + 2 ignition coil | 43K |
| T4/1 | Cylinder 3 + 4 ignition coil | 39K |
| T4/1t3 | Cylinder 3 ignition coil | 38J |
| T4/1t4 | Cylinder 4 ignition coil | 40J |
| T4/2 | Cylinder 5 + 6 ignition coil | 62K |
| T4/2t5 | Cylinder 5 ignition coil | 61J |
| T4/2t6 | Cylinder 6 ignition coil | 63J |
| T4/3 | Cylinder 7 + 8 ignition coil | 58K |
| T4/3t7 | Cylinder 7 ignition coil | 57J |
| T4/3t8 | Cylinder 8 ignition coil | 59J |
| T4t1 | Cylinder 1 ignition coil | 42J |
| T4t2 | Cylinder 2 ignition coil | 44J |
| W11/2 | Right combustion engine ground point | 39G |
| W11/3 | Left combustion engine ground point | 57G |
| W16/4 | Right major assembly compartment ground point | 45L |
| X187/3 | Combustion engine electrical connector 3 | 117E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 49H |
| X257 | Cooling system electrical connector | 25H |
| X26 | Engine/engine compartment electrical connector | 30H |
| X26 | Engine/engine compartment electrical connector | 45H |
| X279/1 | Left injectors electrical connector | 10G |
| X279/2 | Right injectors electrical connector | 4G |

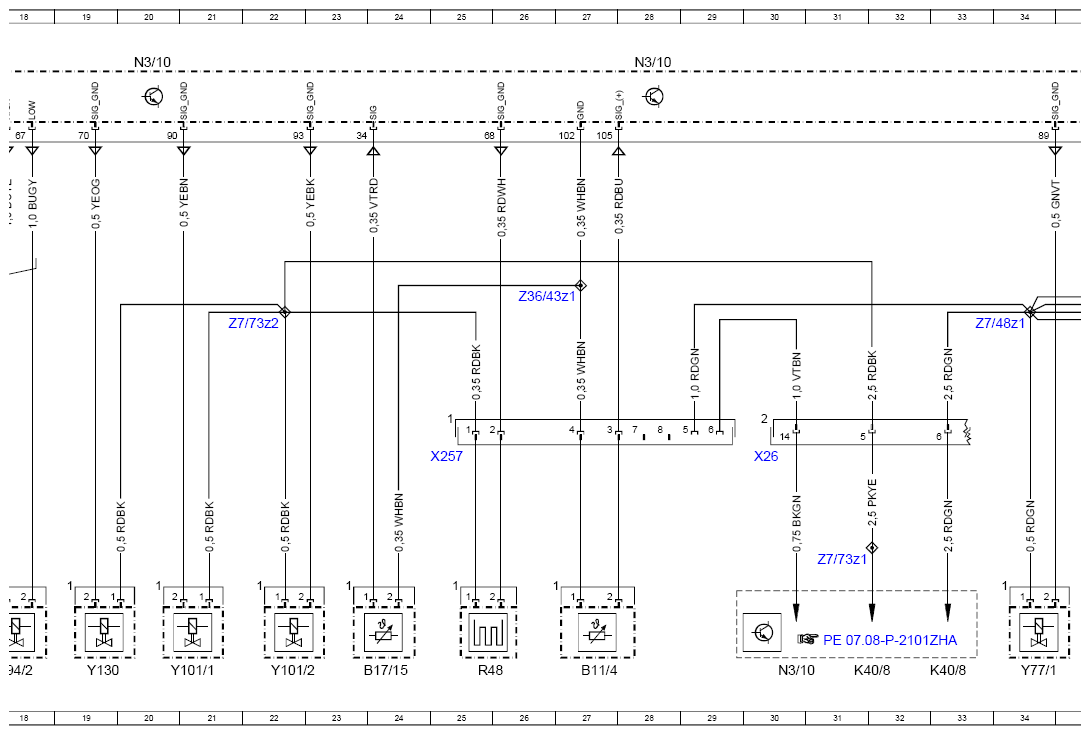

| Y101/1 | Left bypass air switchover valve | 21L |
| Y101/2 | Right bypass air switchover valve | 22L |
| Y130 | Engine oil pump valve | 19L |
| Y49/11 | Cylinder 2 intake CAMTRONIC actuator | 64J |
| Y49/12 | Cylinder 2 exhaust CAMTRONIC actuator | 65J |
| Y49/13 | Cylinder 3 intake CAMTRONIC actuator | 65J |
| Y49/14 | Cylinder 3 exhaust CAMTRONIC actuator | 66J |
| Y49/15 | Cylinder 5 intake CAMTRONIC actuator | 66J |
| Y49/16 | Cylinder 5 exhaust CAMTRONIC actuator | 66J |
| Y49/17 | Cylinder 8 intake CAMTRONIC actuator | 67J |
| Y49/18 | Cylinder 8 exhaust CAMTRONIC actuator | 67J |

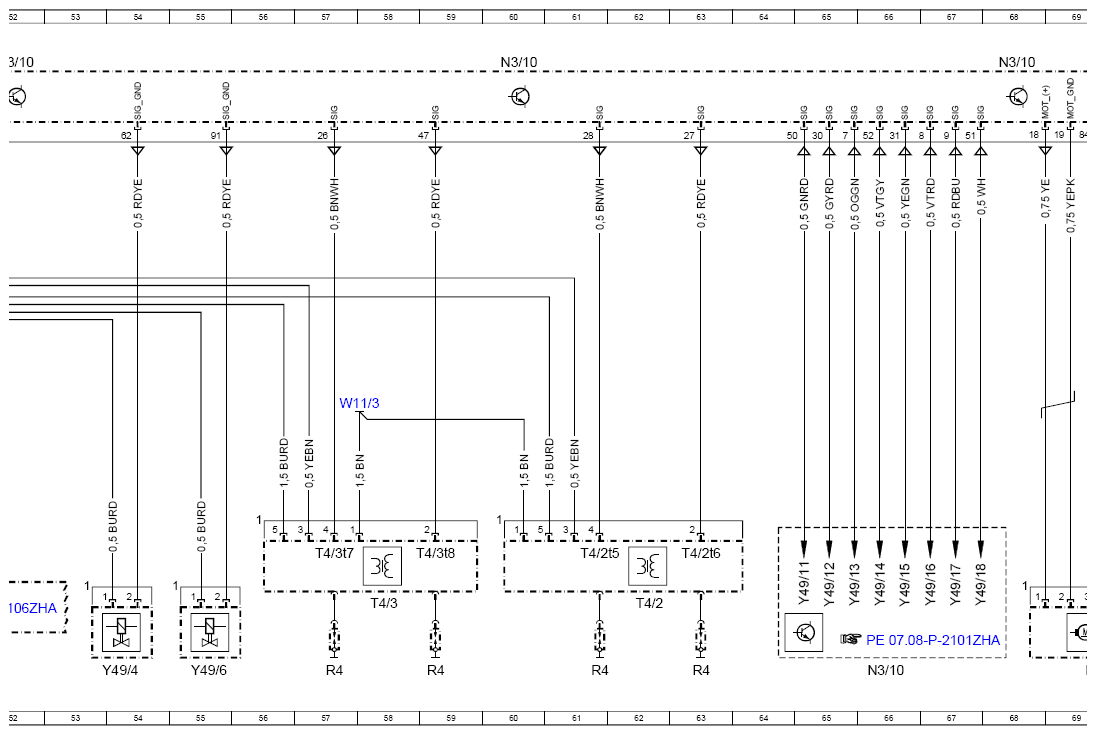

| Y49/4 | Left intake camshaft solenoid | 54L |
| Y49/5 | Right intake camshaft solenoid | 35L |
| Y49/6 | Left exhaust camshaft solenoid | 55L |
| Y49/7 | Right exhaust camshaft solenoid | 37L |

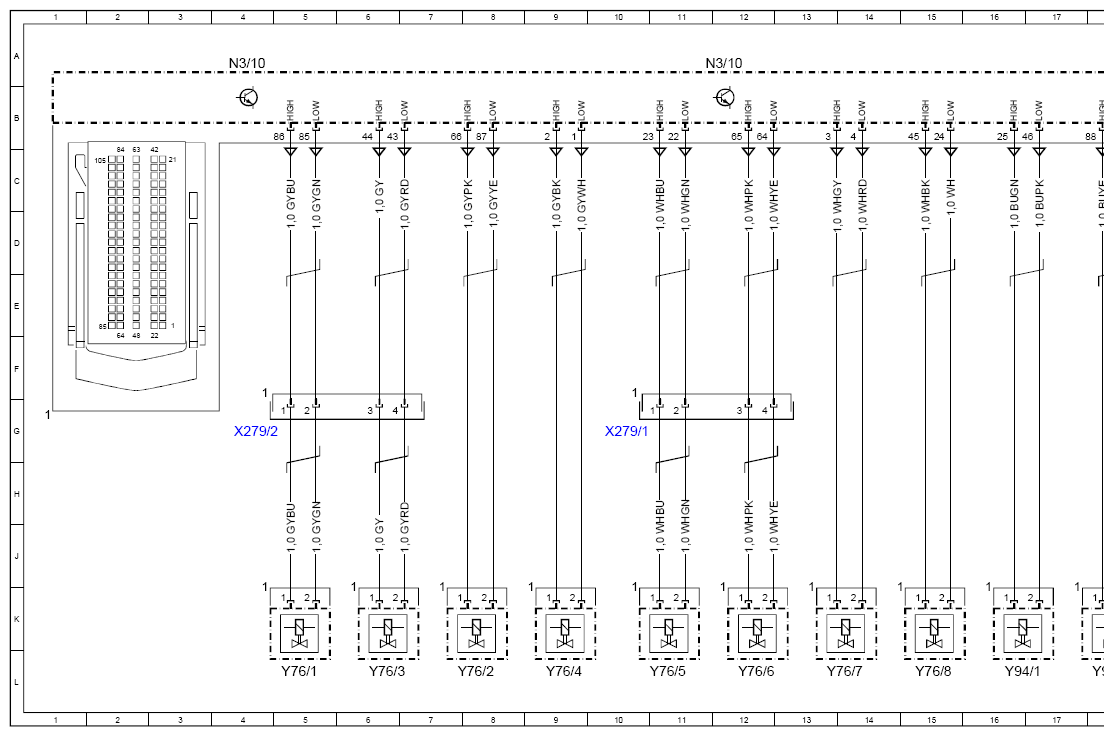

| Y76/1 | Cylinder 1 fuel injector | 5L |
| Y76/2 | Cylinder 2 fuel injector | 8L |
| Y76/3 | Cylinder 3 fuel injector | 6L |
| Y76/4 | Cylinder 4 fuel injector | 9L |
| Y76/5 | Cylinder 5 fuel injector | 11L |
| Y76/6 | Cylinder 6 fuel injector | 12L |
| Y76/7 | Cylinder 7 fuel injector | 13L |
| Y76/8 | Cylinder 8 fuel injector | 15L |
| Y77/1 | - | 34L |
| Y94/1 | Left quantity control valve | 16L |
| Y94/2 | Right quantity control valve | 18L |
| Z255/1z1 | Voltage supply connector sleeve | 46E |
| Z255/2z1 | Voltage supply connector sleeve | 45E |
| Z36/41z1 | Ground connection connector sleeve | 92G |
| Z36/42z1 | Ground connection connector sleeve | 108G |
| Z36/43z1 | Ground connection connector sleeve | 26E |
| Z36/44z1 | Sensor ground line connector sleeve | 115E |
| Z36/45z1 | Ground connection connector sleeve | 111E |
| Z36/46z1 | Ground connection connector sleeve | 94E |
| Z61/81z1 | Sensor ground connection end sleeve | 121G |
| Z7/48z1 | Circuit 87/2 connector sleeve | 34E |
| Z7/73z1 | Circuit 87M connector sleeve | 31J |
| Z7/73z2 | Circuit 87M connector sleeve | 22E |
| Z7/75z1 | Circuit 87M connector sleeve | 47E |
| Z84/1z1 | Voltage supply connector sleeve | 123E |
| Z85/6z1 | Ground line connector sleeve | 117G |
