Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97ZHA
Engine 176.9 in model 463 (except 463.342) as of model year 2019 Control unit N3/10, vehicle connector
| Code: | Designation: | Position: |
|---|---|---|

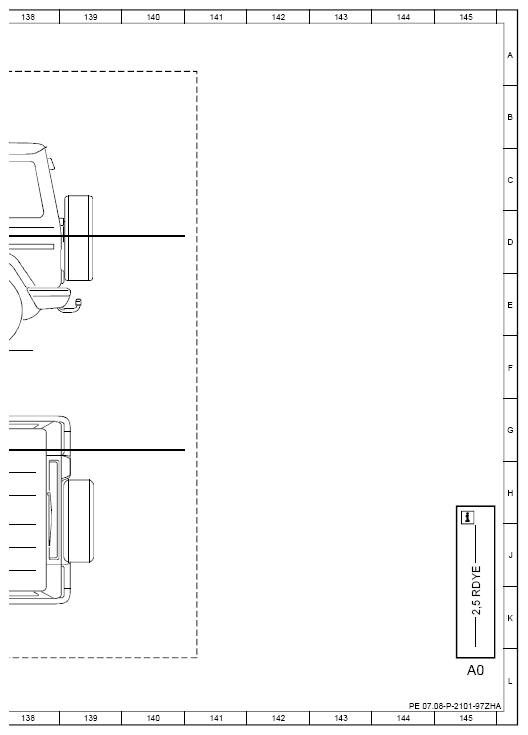

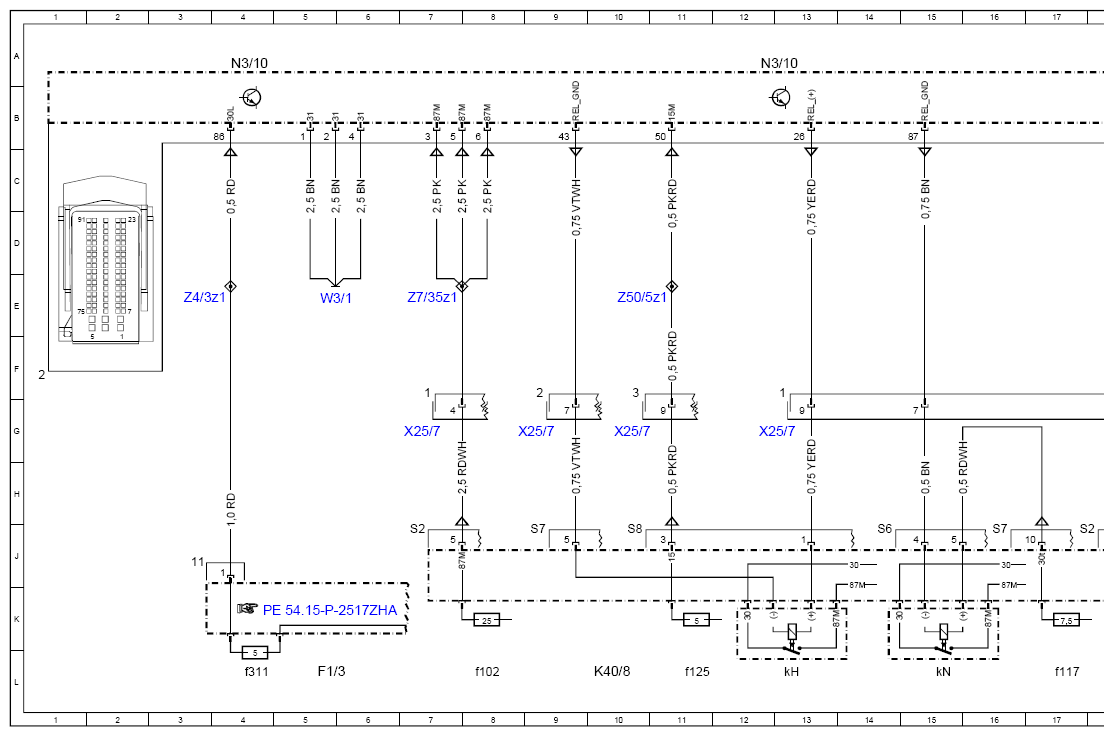

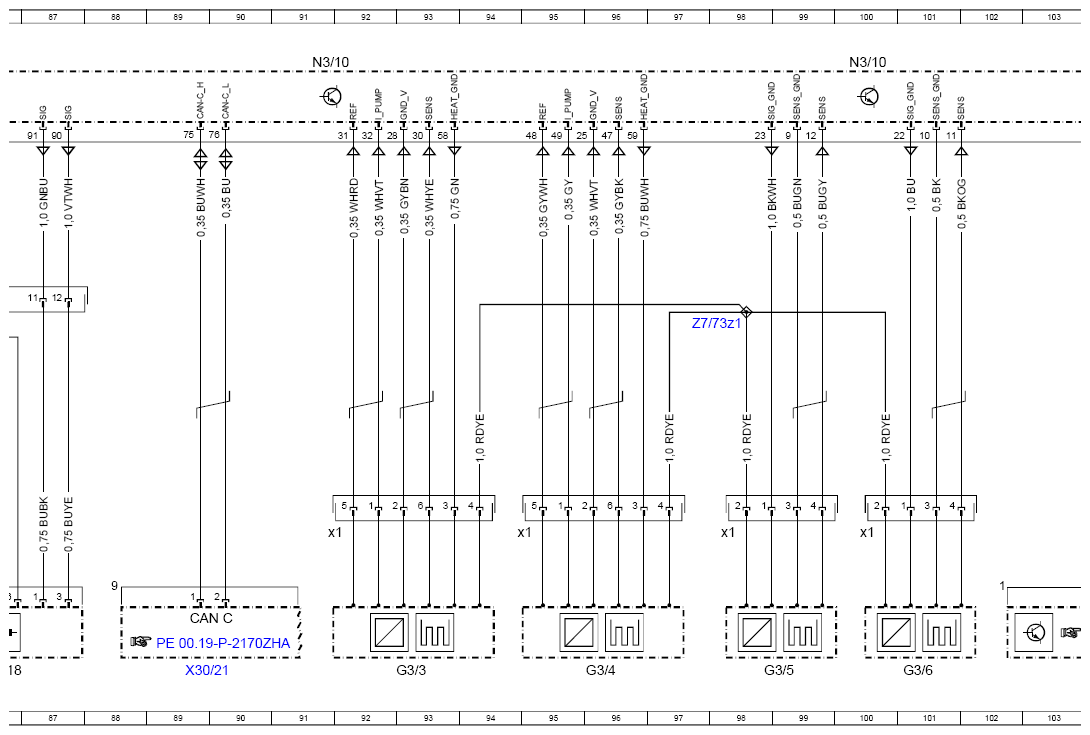

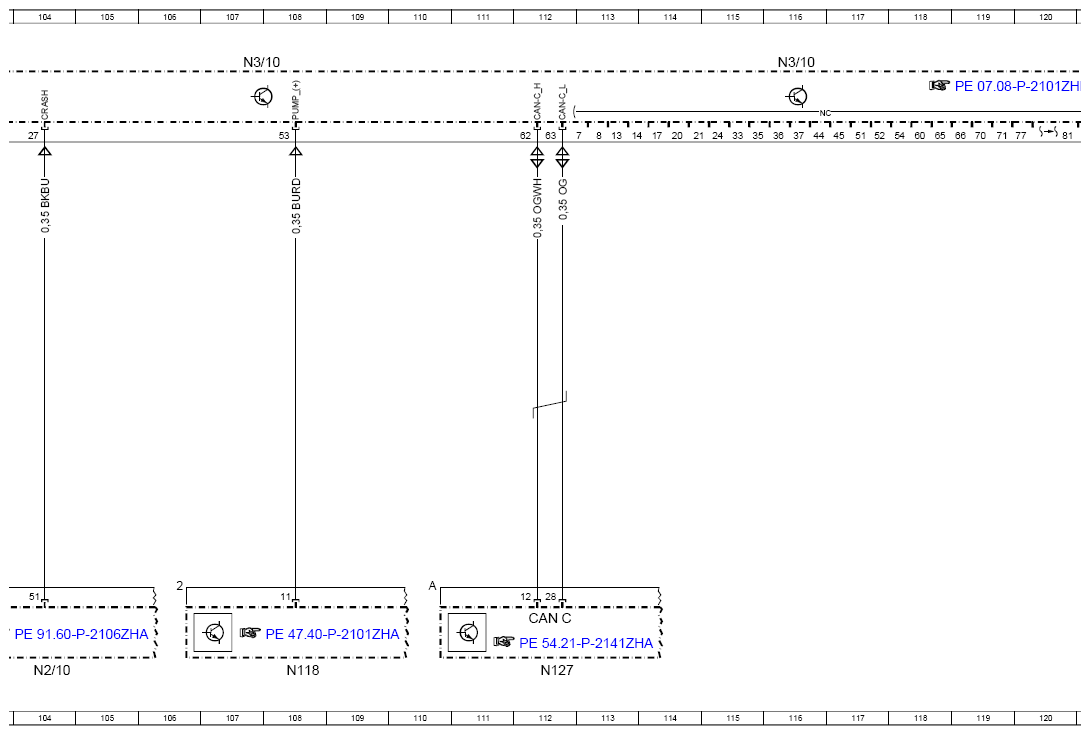

| A0 | Use of wiring diagrams | 145L |
| A101 | Fuel tank diagnostic module | 27L |
| A9 | Refrigerant compressor | 48L |
| A9/7 | Refrigerant compressor with magnetic clutch | 47L |
| B108/2 | Right purge pressure sensor | 54L |
| B40 | Oil sensor (oil level, temperature and quality) | 31L |
| CAN C | Engine CAN | 89K |
| CAN C | Engine CAN | 112K |
| Code B09 | Refrigerant compressor with magnetic clutch | 46L |
| Code B09 | Refrigerant compressor with magnetic clutch | 46L |
| F1/3 | Right A-pillar fuse box | 5L |
| F1/3f311 | Fuse 311 | 4L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 93L |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of catalytic converter | 91J |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 96L |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 95J |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 98L |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 98J |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 100J |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 101L |
| K40/8 | Engine fuse and relay module | 10L |
| K40/8f101 | Fuse 101 | 19L |
| K40/8f102 | Fuse 102 | 8L |
| K40/8f103 | Fuse 103 | 20L |
| K40/8f104 | Fuse 104 | 18L |
| K40/8f117 | Fuse 117 | 17L |
| K40/8f125 | Fuse 125 | 11L |
| K40/8kH | Starter circuit 50 relay | 13L |
| K40/8kN | Circuit 87M relay | 15L |
| N118 | Fuel pump control unit | 108L |
| N127 | Drivetrain control unit | 112L |
| N2/10 | Supplemental restraint system control unit | 104L |
| N22/1 | Climate control, control unit | 51L |

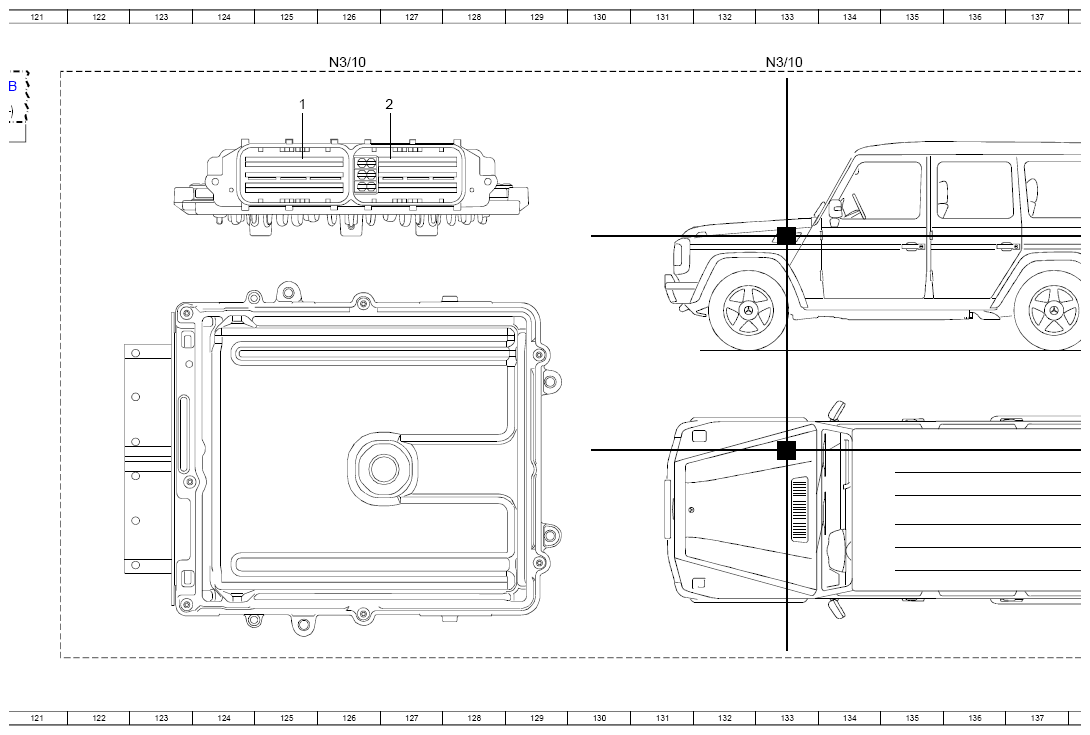

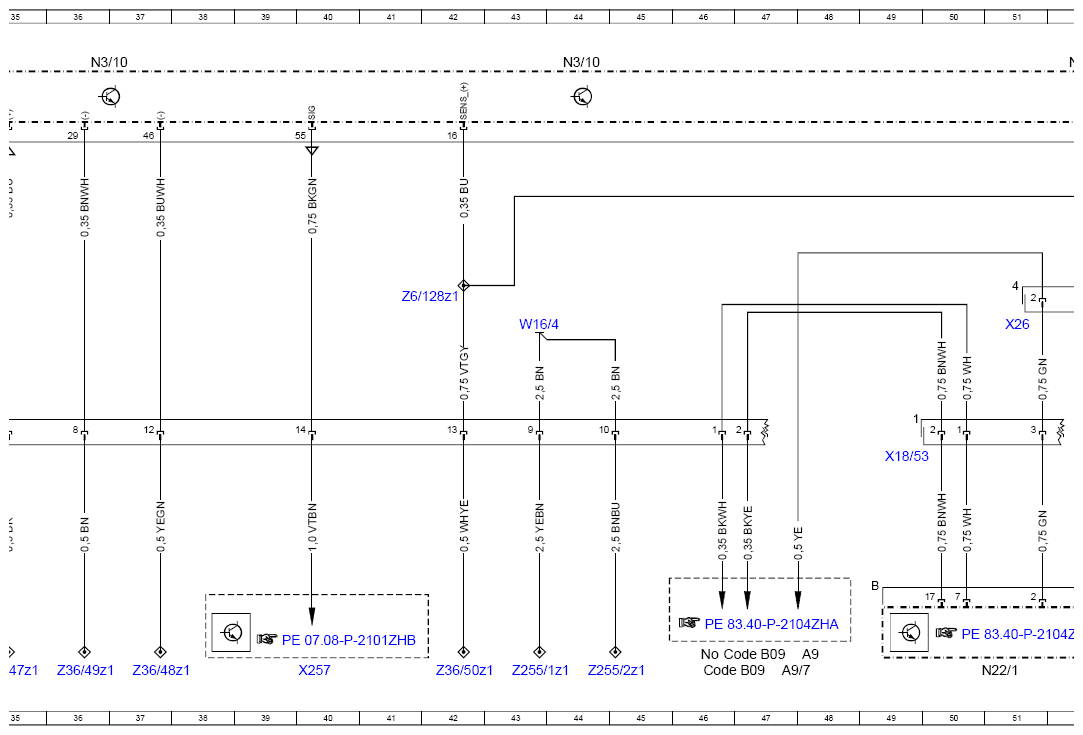

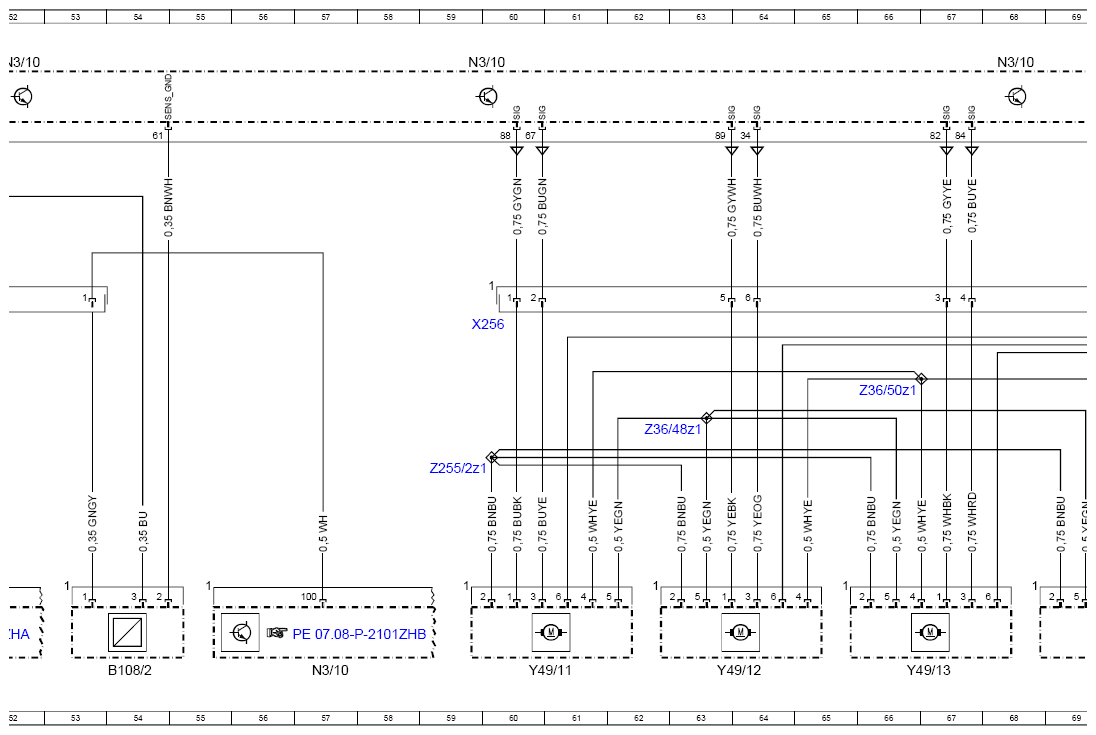

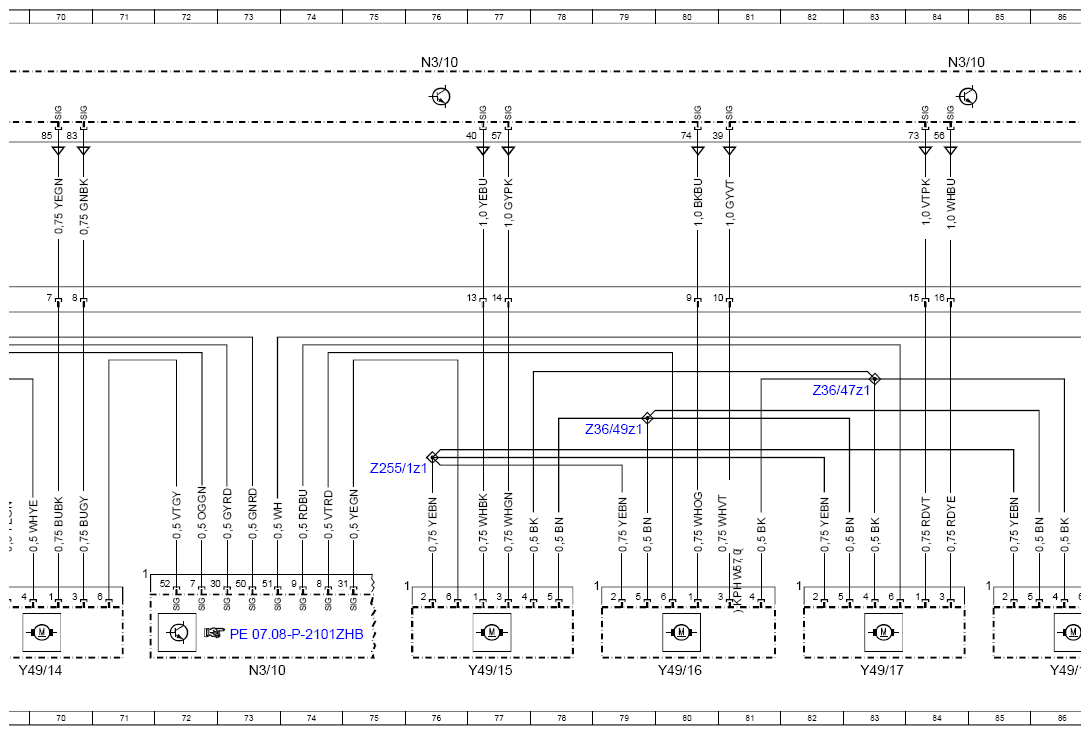

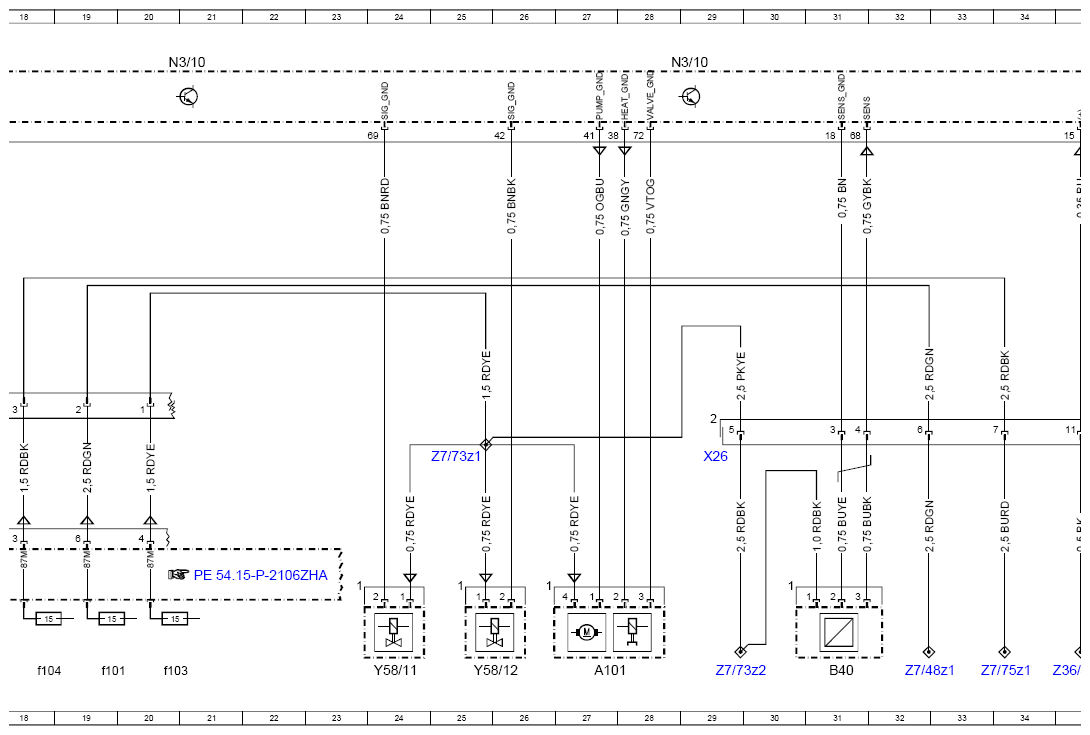

| N3/10 | ME-SFI [ME] control unit | 57L |
| N3/10 | ME-SFI [ME] control unit | 73L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 29A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 59A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 76A |
| N3/10 | ME-SFI [ME] control unit | 84A |
| N3/10 | ME-SFI [ME] control unit | 91A |
| N3/10 | ME-SFI [ME] control unit | 100A |
| N3/10 | ME-SFI [ME] control unit | 107A |
| N3/10 | ME-SFI [ME] control unit | 116A |
| N3/10 | ME-SFI [ME] control unit | 126A |
| N3/10 | ME-SFI [ME] control unit | 133A |
| W16/4 | Right major assembly compartment ground point | 43E |
| W3/1 | Right front wheel arch ground point | 5E |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 49H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 13G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 10G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 9G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 7G |
| X256 | CAMTRONIC electrical connector | 60E |
| X257 | Cooling system electrical connector | 40L |
| X26 | Engine/engine compartment electrical connector | 29H |
| X26 | Engine/engine compartment electrical connector | 51E |
| X30/21 | Drivetrain CAN (CAN C1) potential distributor | 89L |
| Y49/11 | Cylinder 2 intake CAMTRONIC actuator | 60L |
| Y49/12 | Cylinder 2 exhaust CAMTRONIC actuator | 63L |
| Y49/13 | Cylinder 3 intake CAMTRONIC actuator | 66L |
| Y49/14 | Cylinder 3 exhaust CAMTRONIC actuator | 70L |
| Y49/15 | Cylinder 5 intake CAMTRONIC actuator | 77L |
| Y49/16 | Cylinder 5 exhaust CAMTRONIC actuator | 80L |
| Y49/17 | Cylinder 8 intake CAMTRONIC actuator | 83L |
| Y49/18 | Cylinder 8 exhaust CAMTRONIC actuator | 86L |
| Y58/11 | Left purge control valve | 24L |
| Y58/12 | Right purge control valve | 25L |
| Z255/1z1 | Voltage supply connector sleeve | 43L |
| Z255/1z1 | Voltage supply connector sleeve | 75H |
| Z255/2z1 | Voltage supply connector sleeve | 44L |
| Z255/2z1 | Voltage supply connector sleeve | 59H |
| Z36/47z1 | Ground connection connector sleeve | 35L |
| Z36/47z1 | Ground connection connector sleeve | 82F |
| Z36/48z1 | Ground connection connector sleeve | 37L |
| Z36/48z1 | Ground connection connector sleeve | 63G |
| Z36/49z1 | Ground connection connector sleeve | 36L |
| Z36/49z1 | Ground connection connector sleeve | 79G |
| Z36/50z1 | Voltage supply connector sleeve | 42L |
| Z36/50z1 | Voltage supply connector sleeve | 66F |
| Z4/3z1 | Terminal 30t connector sleeve | 3E |
| Z50/5z1 | Circuit 15M connector sleeve | 10E |
| Z6/128z1 | Sensor voltage supply connector sleeve | 42E |
| Z7/35z1 | Circuit 87M connector sleeve | 7E |
| Z7/48z1 | Circuit 87/2 connector sleeve | 32L |
| Z7/73z1 | Circuit 87M connector sleeve | 25G |
| Z7/73z1 | Circuit 87M connector sleeve | 98E |
| Z7/73z2 | Circuit 87M connector sleeve | 29L |
| Z7/75z1 | Circuit 87M connector sleeve | 34L |
