Remove/Install Right Throttle Valve Actuator - AR07.51-P-1403XGC
Engine 177 in model 463
as of model year 2019

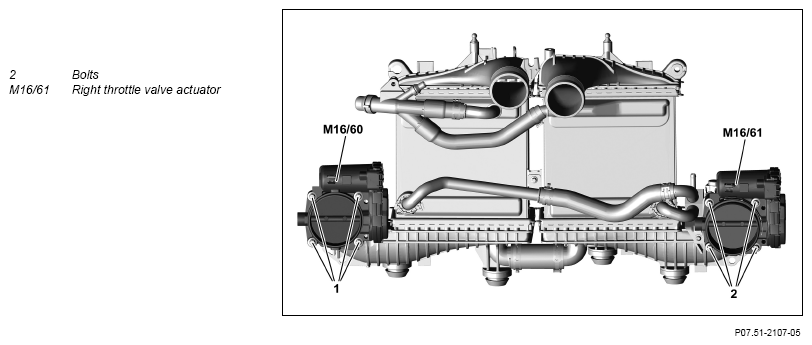

Fig 1: Right Throttle Valve Actuator Components Location - Engine 177 In Model 463 As Of Model Year 2019
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove charge air coolers. | AR09.41-P-6817XGC | |
| 2 | Remove screws (2) and right throttle valve actuator (M16/61) from charge air cooler. | ||
| *BA09.41-P-1008-01X | |||
| 3 | Install in the reverse order. |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1008-01X | Bolt, throttle valve actuator to charge air cooler | Nm | 9 |
