Remove/Install Position Sensor Of Left Cylinder Bank Intake Camshaft - AR07.04-P-0051XGA
Engine 176 in model 463
as of model year 2019

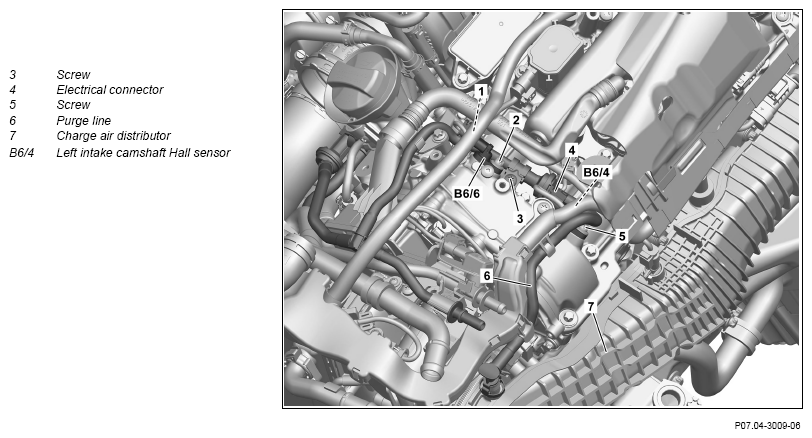

Fig 1: Position Sensor Of Left Cylinder Bank Intake Camshaft Components Location - Engine 176 In Model 463 As Of Model Year 2019
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove left air filter housing. | AR09.10-P-1151XGA | |
| 2 | Remove screw (3). | *BA00.10-P-1002-04A | |
| 3 | Remove purge line (6) from charge-air distributor (7) and seal openings with suitable stop plugs. | Fig 2 | |
| 4 | Detach purge line (6) and place outside the working area. | ||
| 5 | Release and disconnect electrical connector (4). | ||
| 6 | Remove screw (5) and remove left intake camshaft Hall sensor (B6/4). | *BA15.10-P-1002-03M | |
| 7 | Check sealing ring of left intake camshaft Hall sensor (B6/4) for damage. | If problems exist, ↓ replace left intake camshaft Hall sensor (B6/4). |
|
| 8 | Install in the reverse order. | ||
| 9 | Read out and delete fault memory. | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Carry out engine test run and check engine for proper leaktightness and leaktightness. | ||
| 11 | Install upper engine cover. | AR01.10-P-2405XGA |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6 X 1 | Nm | 9 | 13 |
POSITION SENSOR
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA15.10-P-1002-03M | Bolt, camshaft position sensor to cylinder head cover | Nm | 8 |
