Reduce Fuel Pressure Through Service Valve - AR07.03-P-1460-01XGA
Engine 176 in model 463
as of model year 2019
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA07.03-P-1005-01H | Dust protection cap to service connection | Nm | 1 |

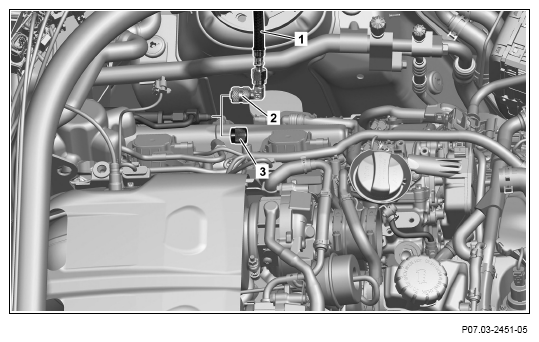

- Unscrew cover (3) from service connection of fuel distributor.
- Place end of
pressure hose (1) into a suitable container.
- Tighten union nut (2) of
- Unscrew union nut (2) of
- Tighten cover (3) on service connection of the fuel distributor
.
: Install new cap (3).
