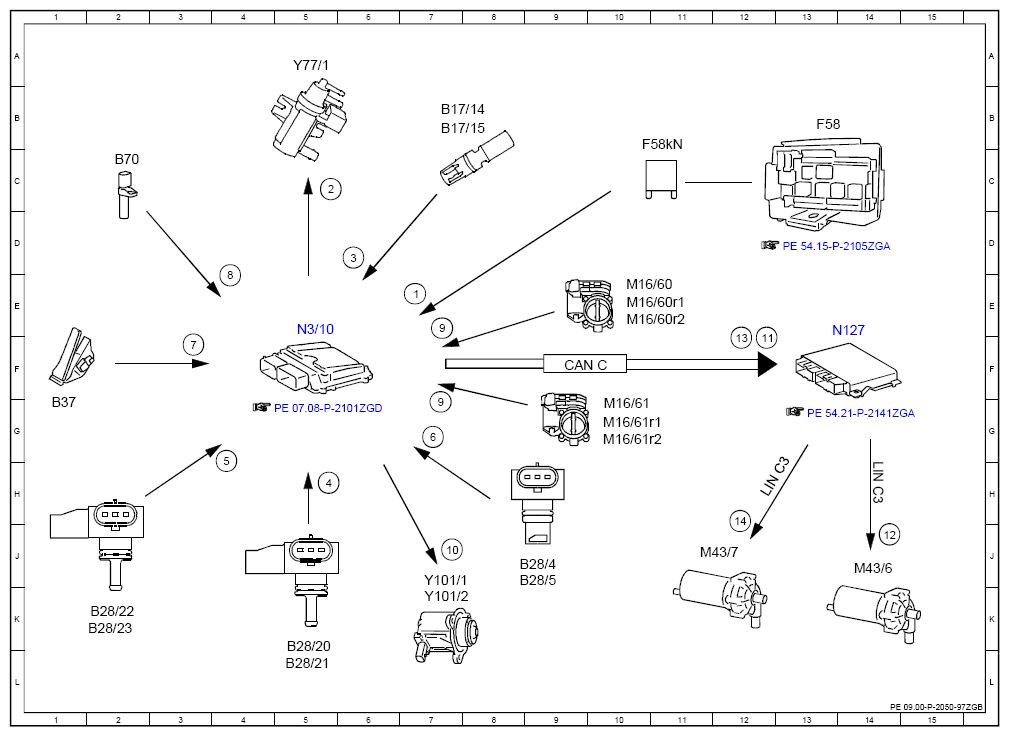

Electrical Function Schematic For Charging - PE09.00-P-2050-97ZGB
Engine 176.9 in model 463 as of model year 2016 up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 7E |
| 10 | Bypass air switchover valve, actuation | 7J |
| 11 | Low temperature circuit circulation pump 1, request | 12E |
| 12 | Low temperature circuit circulation pump 1, actuation | 14J |
| 13 | Low temperature circuit circulation pump 2, request | 12E |
| 14 | Low temperature circuit circulation pump 2, actuation | 12H |
| 2 | Boost pressure control pressure transducer, actuation | 5C |
| 3 | Charge air temperature sensor, signal | 6D |
| 4 | Pressure sensor upstream of throttle valve, signal | 5H |
| 5 | Pressure sensor downstream of throttle valve, signal | 4H |
| 6 | Pressure sensor downstream of air filter, signal | 7G |
| 7 | Accelerator pedal sensor, signal | 3F |
| 8 | Crankshaft Hall sensor, signal | 4E |
| 9 | Actual value potentiometer, signal | 7E |
| 9 | Actual value potentiometer, signal | 7G |
| B17/14 | Left charge air temperature sensor | 7B |
| B17/15 | Right charge air temperature sensor | 7B |
| B28/20 | Left pressure sensor upstream of throttle valve | 5L |
| B28/21 | Right pressure sensor upstream of throttle valve | 5L |
| B28/22 | Left pressure sensor downstream of throttle valve | 2K |
| B28/23 | Right pressure sensor downstream of throttle valve | 2K |
| B28/4 | Pressure sensor downstream air filter, left cylinder bank | 9J |
| B28/5 | Pressure sensor downstream of air filter, right cylinder bank | 9J |
| B37 | Accelerator pedal sensor | 1G |
| B70 | Crankshaft Hall sensor | 2C |
| CAN C | Drivetrain CAN | 9F |
| F58 | Front passenger footwell fuse and relay module | 13B |
| F58kN | Circuit 87M relay | 11C |
| LIN C3 | Drivetrain LIN | 14H |
| LIN C3 | Drivetrain LIN | 12H |
| M16/60 | Left throttle valve actuator | 10E |
| M16/60M | Left actual value potentiometer 1 | 10E |
| M16/60r2 | Left actual value potentiometer 2 | 10E |
| M16/61 | Right throttle valve actuator | 10G |
| M16/61r1 | Right actual value potentiometer 1 | 10G |
| M16/61r2 | Right actual value potentiometer 2 | 10G |
| M43/6 | Low temperature circuit circulation pump 1 | 14J |
| M43/7 | Low temperature circuit circulation pump 2 | 11J |
| N127 | Drivetrain control unit | 14E |
| N3/10 | ME-SFI [ME] control unit | 5E |
| Y101/1 | Left bypass air switchover valve | 7J |
| Y101/2 | Right bypass air switchover valve | 7K |
| Y77/1 | Boost pressure control pressure transducer | 5A |
