Remove/Install Right Heat Shield On Right Turbocharger - AR09.40-P-6027-00XGA
Engine 176 in model 167
Engine 176 in model 463 as of model year 2019
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A |
TURBOCHARGER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.40-P-1007-01ZA | Bolt, side heat shield to cylinder head cover | Nm | 9 |
INERTING
| Number | Designation | Model 167 | ||||
|---|---|---|---|---|---|---|
| BA86.10-P-1002-03B | Pipe for inerting to engine | M6 | Screw | Nm | 8 | |
| Nut | Stage 1 | Nm | 8 | |||
| Stage 2 | ∠° | 30 | ||||
INERTIZATION SYSTEM
| Number | Designation | Model 463 as of model year 2019 |
|
|---|---|---|---|
| BA86.10-P-1002-03J | Bolt, piping for inerting to engine/stationary heater | Nm | 8 |

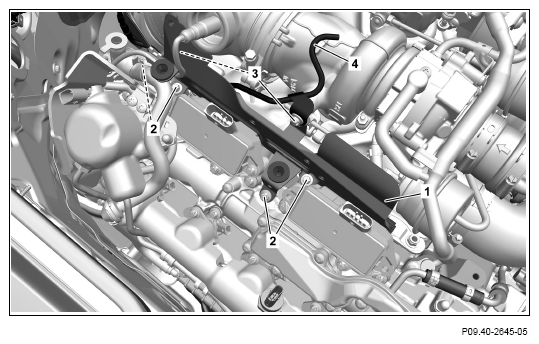

- Remove screw/bolt (3) Engine 176 in model 463 as of model year 2019
Engine 176 in model 167
- Place piping for inerting (4) to one side.
- Unclip engine wiring harness and electric line of right lambda sensor upstream of catalytic converter (G3/4) at heat shield (1) and place to one side.
- Remove screw/bolts (2)
- Remove heat shield (1) upwards.
- Check elastomer bearings of heat shield (1) for damage.
If a problem arises
↓
Replace elastomer bearing.
- Install in the reverse order.
