Remove/Install Right Boost Pressure Sensor Upstream Of Throttle Valve - AR09.41-P-1021XGA
Engine 176 in model 463
as of model year 2019

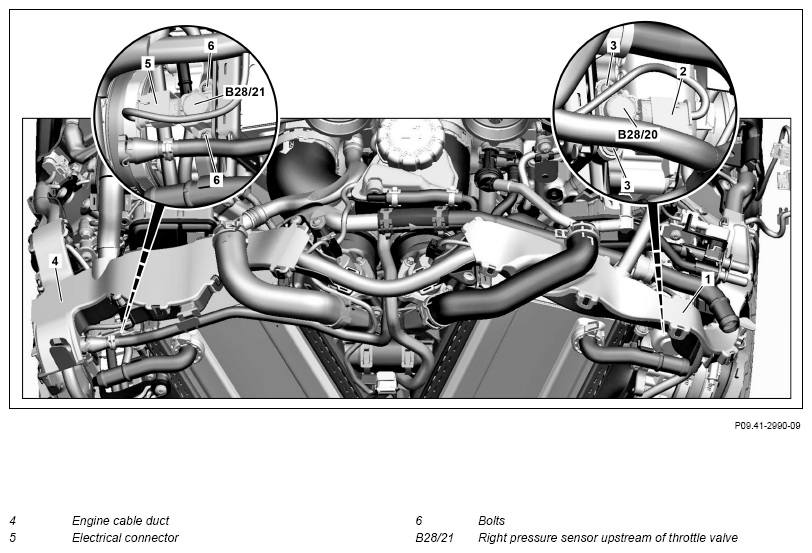

Fig 1: Right Boost Pressure Sensor Upstream Of Throttle Valve Components Location - Engine 176 In Model 463 As Of Model Year 2019
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove right air filter housing. | AR09.10-P-1152XGA | |
| 2 | Remove engine cable duct (4) and place to one side. | *BA15.18-P-1001-01G | |
| 3 | Release and disconnect electrical connector (5). | ||
| 4 | Unscrew screws (6) and remove pressure sensor upstream of right throttle valve (B28/21). | *BA09.41-P-1005-01X | |
| 5 | Seal opening on charge air cooler with suitable stop plug. | Fig 2 | |
| 6 | Check sealing ring of pressure sensor upstream of right throttle valve (B28/21) for damage. | If complaints have been submitted, Replace pressure sensor upstream of right throttle valve (B28/21). | |
| 7 | Install in the reverse order. | ||
| 8 |
Read out and delete fault memory. | AD00.00-P-2000-04B | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Carry out engine test run and check engine for proper leaktightness and leaktightness. | ||
| 10 | Install upper engine cover. | AR01.10-P-2405XGA |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1005-01X | Bolt, boost pressure sensor upstream/downstream of throttle valve | Nm | 6 |
ENGINE WIRING HARNESS
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA15.18-P-1001-01G | Bolt, engine wiring harness to cylinder head cover | Nm | 9 |
