Remove/Install Right Boost Pressure Sensor Downstream Of Throttle Valve - AR09.41-P-1031XGC
Engine 177 in model 463
as of model year 2019

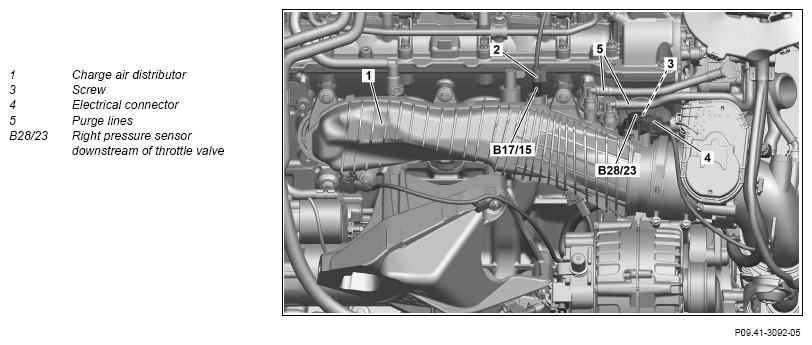

Fig 1: Right Boost Pressure Sensor Downstream Of Throttle Valve Components Location - Engine 177 In Model 463 As Of Model Year 2019
| Remove/install | |||
| 1 | Remove right air filter housing. | AR09.10-P-1152XGC | |
| 2 | Remove expansion reservoir. | AR09.41-P-0001XGC | |
| 3 | Remove purge lines (5) from charge-air distributor (1) and seal openings with suitable stop plugs. | Fig 2 | |
| 4 | Release and disconnect electrical connector (4). | ||
| 5 | Remove screw (3). | *BA09.41-P-1005-01X | |
| 6 | Turn pressure sensor downstream of right throttle valve (B28/23) clockwise and remove in upward direction. | ||
| 7 | Seal opening at charge-air distributor (1) using suitable stop plug. | Fig 2 | |
| 8 | Install in the reverse order. | ||
| 9 |
Read out and delete fault memory. | AD00.00-P-2000-04B |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1005-01X | Bolt, boost pressure sensor upstream/downstream of throttle valve | Nm | 6 |
