Remove/Install Left Charge Air Temperature Sensor Downstream Of Throttle Valve - AR09.41-P-0041XGC
Engine 177 in model 463
as of model year 2019

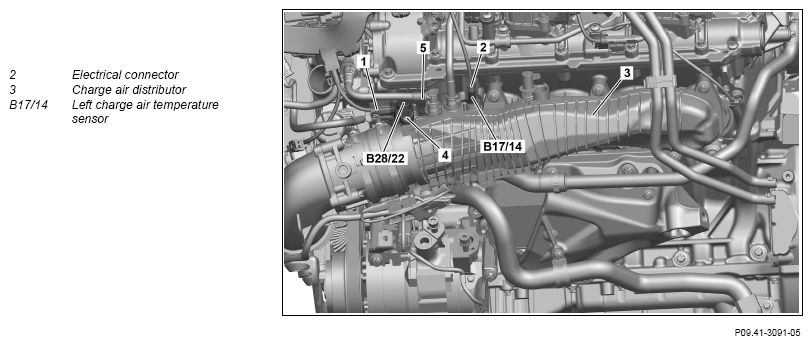

Fig 1: Left Charge Air Temperature Sensor Downstream Of Throttle Valve Components Location - Engine 177 In Model 463 As Of Model Year 2019
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove upper engine cover. | AR01.10-P-2405XGC | |
| 2 | Release and disconnect electrical connector (2) at left charge air temperature sensor (B17/14). | ||
| 3 | Turn left charge air temperature sensor (B17/14) clockwise and remove upwards. | ||
| 4 | Seal opening on charge-air distributor (3) with a suitable stop plug. | Fig 2 | |
| 5 | Check the sealing ring of the charge-air temperature sensor on the left (B17/14) for damage. | If complaints are present, ↓ replace the charge-air temperature sensor on the left (B17/14). |
|
| 6 | Install in the reverse order. | ||
| 7 |
Read out and delete fault memory. | AD00.00-P-2000-04B | |
8 |
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform an engine test run and check the engine for proper function. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
