Remove/Install Left Boost Pressure Sensor Downstream Of Throttle Valve - AR09.41-P-1030XGC
Engine 177 in model 463
as of model year 2019

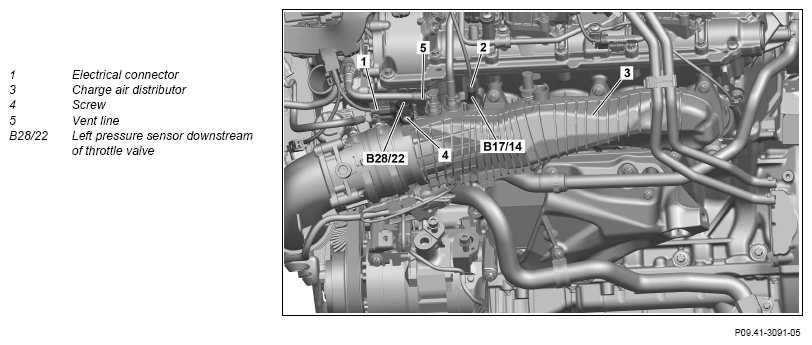

Fig 1: Left Boost Pressure Sensor Downstream Of Throttle Valve Components Location - Engine 177 In Model 463 As Of Model Year 2019
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove left air filter housing. | AR09.10-P-1151XGC | |
| 2 | Remove bleed line (5) from charge-air distributor (3) and seal openings with suitable stop plugs. | Fig 2 | |
| 3 | Release electrical connector (1) and disconnect. | ||
| 4 | Remove screw (4). | *BA09.41-P-1005-01X | |
| 5 | Turn pressure sensor downstream of left throttle valve (B28/22) counterclockwise and remove in upward direction. | ||
| 6 | Seal opening at charge-air distributor (3) with a suitable stop plug. | Fig 2 | |
| 7 | Install in the reverse order. | ||
| 8 |
Read out and delete fault memory. | AD00.00-P-2000-04B | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Carry out engine test run and check engine for proper leaktightness and leaktightness. | ||
| 10 | Install upper engine cover. | AR01.10-P-2405XGC |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1005-01X | Bolt, boost pressure sensor upstream/downstream of throttle valve | Nm | 6 |
