Remove/Install Left Boost Pressure Sensor Downstream Of Throttle Valve - AR09.41-P-1030XGA
Engine 176 in model 463
as of model year 2019

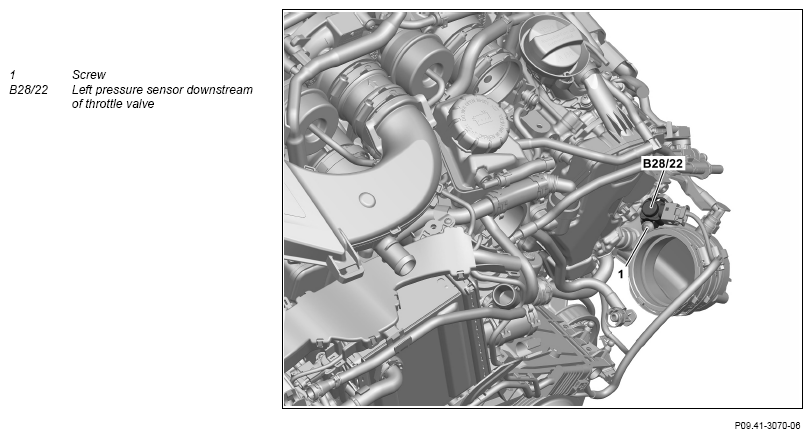

Fig 1: Left Boost Pressure Sensor Upstream Of Throttle Valve Components Location - Engine 176 In Model 463 As Of Model Year 2019
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove left charge air cooler | AR09.41-P-6827XGA | |
| 2 | Remove screw/bolt (1) | *BA09.41-P-1005-01X | |
| 3 | Turn pressure sensor downstream of left throttle valve (B28/22) counterclockwise and remove | ||
| 4 | Seal opening with a clean, lint-free rag | ||
| 5 | Check sealing ring on pressure sensor downstream of left throttle valve (B28/22) for damage | If a problem arises | |
| Replace pressure sensor downstream of left throttle valve (B28/22). | |||
| 6 | Install in the reverse order |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1005-01X | Bolt, boost pressure sensor upstream/downstream of throttle valve | Nm | 6 |
