Remove/Install Cold Air Intake - AR09.00-P-0002XGC
Engine 177 in model 463
as of model year 2019
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove upper engine cover. | AR01.10-P-2405XGC | |
| 2 | Unclip retaining clips (2). | ||

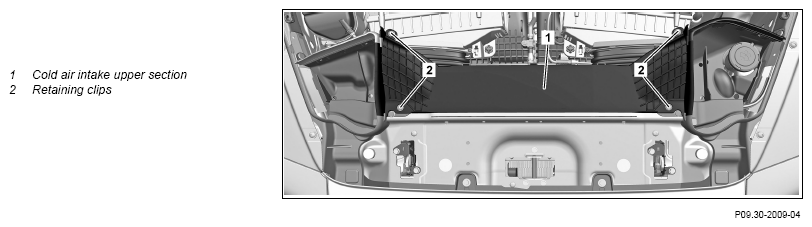

| 3 | Unclip cold air intake upper section (1) from cold air intake lower section (3) and remove in upward direction. | ||
| 4 | Unclip retaining clips (4, 5). | ||

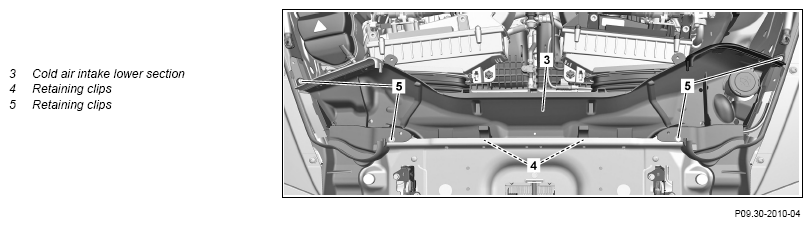

| 5 | Remove cold air intake lower section (3) from radiator crossmember and remove in upward direction. | ||
| 6 | Install in the reverse order. |
