Remove/Install Air Duct Segment Of Cold Air Intake - AR09.10-P-0002XGC
Engine 177 in model 463
as of model year 2019

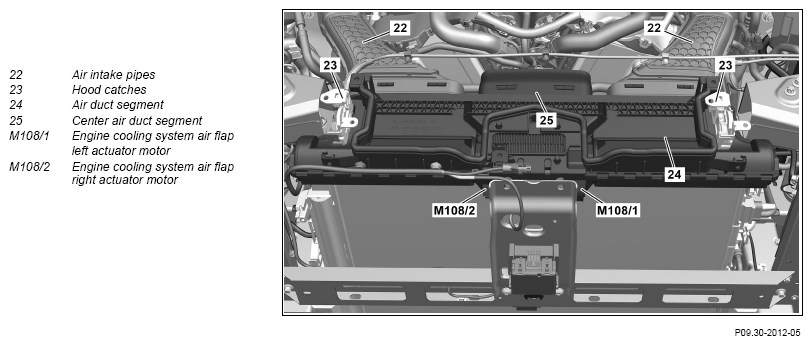

Fig 1: Air Duct Segment Of Cold Air Intake Components Location - Engine 177 In Model 463 As Of Model Year 2019
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove upper engine cover. | AR01.10-P-2405XGC | |
| 2 | Remove radiator crossmember. | AR62.30-P-2300XG | |
| 3 | Release and disconnect electrical connectors of hood catches (23). | ||
| 4 | Place hood catches (23) with hood cable to one side. | ||
| 5 | Unclip center air duct segment (25) from air duct segment (24). | ||
| 6 | Unclip air intake pipes (22) from air duct segment (24). | ||
| 7 | Release and disconnect electrical connectors of engine cooling air flap left actuator motor (M108/1) and engine cooling air flap right actuator motor (M108/2). | ||
| 8 | Remove air duct segment (24) in upward direction. | ||
| 9 | Install in the reverse order. |
