Remove/Install Additional Fan For Low-Temperature Circuit On Wheel Arch At Left - AR09.41-P-6940XGC
Engine 177 in model 463
as of model year 2019
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Drain coolant from low-temperature circuit. | AR09.41-P-6834XGC | |
| 2 | Remove fender liner in left front fender. | AR88.10-P-1300XG | |
| 3 | Remove front bumper. | AR88.20-P-2000XG | |
| 4 | Remove coolant hoses (3) and seal openings with protective covers and/or suitable stop plugs. | AR09.41-P-1311-01AL | |

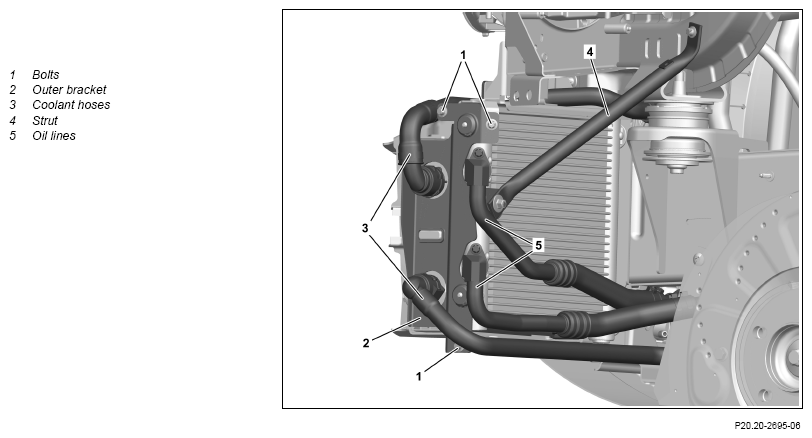

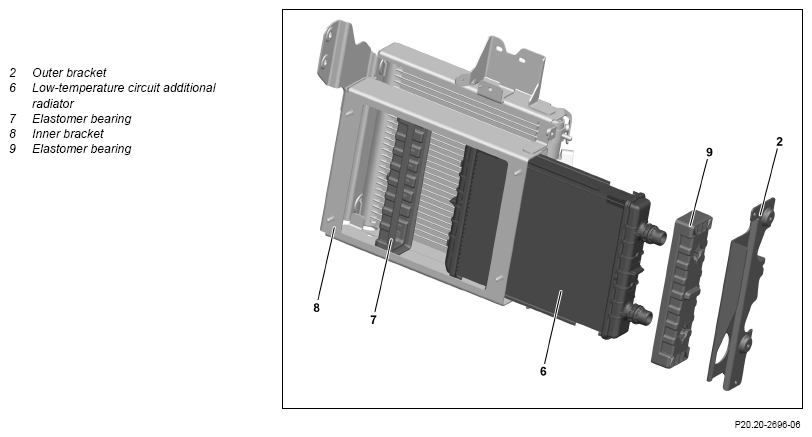

| Fig 1 | |||
| Fig 2 | |||
| 5 | Remove drain screw at engine oil cooler and collect escaping engine oil with suitable container. | *BA18.30-P-1011-01N | |
| 6 | Remove oil lines (5) at engine oil cooler and seal openings with suitable stop plugs. | *BA18.30-P-1006-01N | |
| Fig 3 | |||
| 7 | Remove strut (4). | *BA18.30-P-1012-01N | |
| 8 | Remove screws (1) and remove outer bracket (2). | *BA18.30-P-1014-01N | |
| 9 | Remove low-temperature circuit additional cooler (6) with elastomer bearing (9) from inner bracket (8). | Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 |
*BR00.45-Z-1002-06A |
| 10 | Check elastomer bearings (7, 9) for damage. | If complaints are present, ↓ Replace relevant elastomer bearings (7, 9). |
|
| 11 | Install in the reverse order. | ||
| 12 |
Check engine oil level and correct. | AP18.00-P-1812DKI | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Carry out engine test run and check engine for proper leaktightness and leaktightness. | ||
| 14 | Install fender liner in left front fender. | AR88.10-P-1300XG | |
| 15 | Install lower engine compartment paneling. | AR61.20-P-1105XG |
OIL COOLING
| Number | Designation | Engine 177 in model 463 | |
|---|---|---|---|
| BA18.30-P-1006-01N | Screw/bolt, oil line to front-end/wheel arch oil cooler | Nm | 8 |
OIL COOLING
| Number | Designation | Engine 177 in model 463 | |
|---|---|---|---|
| BA18.30-P-1011-01N | Drain screw to wheel arch oil cooler | Nm | 25 |
OIL COOLING
| Number | Designation | Engine 177 in model 463 | ||
|---|---|---|---|---|
| BA18.30-P-1012-01N | Nut/bolt, strut for oil cooler to outer oil cooler/body holder | M6 | Nm | 8 |
| M8 | Nm | - | ||
OIL COOLING
| Number | Designation | Engine 177 in model 463 | ||
|---|---|---|---|---|
| BA18.30-P-1014-01N | Bolt/nut, outer holder to inner holder for oil cooler | M6 | Nm | 8 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1002-06A | Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 | A 000 989 01 60 |
